factory price for the EK05 Factory deirect Surgical generator/High-Frequency Electric Knife

Minimum Order Quantity : 1pc Price : $699.00 - $999.00/Units
Packaging Details : Standard package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Unit/Units per Month MSLEK05 High-Frequency Electric Knife
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: EK05

Detail Information

Power Source: Electric Warranty: 1 Year
After-sale Service: Free Spare Parts Material: Metal
Shelf Life: 2 Years Quality Certification: Ce
Instrument Classification: Class II Safety Standard: GB15979-2002, I-type BF-type
Properties: The Basis Of Surgical Instruments Product Name: MSLEK05 High-Frequency Electric Knife
Maximum Output Power: 300W Ambient Temperature Range: +10℃~ +40℃
Relative Humidity Range: 30 ~ 75% Atmospheric Pressure: 700~ 1060 HPa
Power Supply: 220V ± 22V 50Hz ± 1Hz Operating Frequency: 530KHz±2
Overall Energy Consumption: ≤1400VA

Product Description

Product Information
factory price for the EK05 Factory deirect Surgical generator/High-Frequency Electric Knife 0

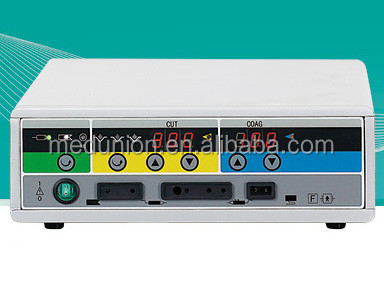

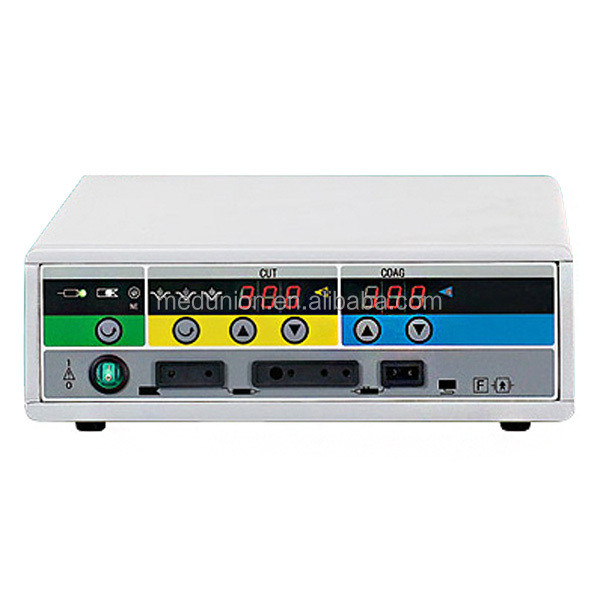

EK05 High-Frequency Electric Knife

Features

● Maximum output power: 300W
● Five output modes: (1) pure cut, (2) mixed cut 1, (3) mixed cut 2, (4) electrocoagulation, (5) bipolar condensate;
● Electric cut mode: pure cut 100% cut, mixed cut 1 70 % cut, 30% coagulation; mixed cut 2 50 % cut, 50% coagulation;
● Pure cut: Maximum output power 300W, enabling easy surgery on any tissues and structures;
● Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;
● Electrocoagulation: Applicable for general open surgery and fine surgical point coagulation, featuring deep tissue coagulation layer and excellent coagulation effect;
● Bipolar coagulation: When the tissues achieve the effect of coagulation, the output power will begin to reduce slowly to achieve good coagulation effect;
● Panel operation: Overall microcomputer automatic control, two-zone (LED) digital display, key function/power, switch/settings, waterproof panel design
● Automatic adjustment: Automatically fine adjust power in a certain range to ensure the consistency of the cutting effect;
● Automatic recognition: Neutral unipolar/bipolar plate automatic recognition, when using the dual-circuit plates and the contact area less than 60%, it should automatically stop the power output and send sound-light alarm until the contact area returns to normal, which could effectively avoid burning patients by plates.
● Application range: Used in endoscopic, hysteroscopy, anorectal, general surgery, etc





Technical parameters



Safety standard
I-type BF-type

Ambient temperature range
+10℃~ +40℃

Relative humidity range
30 ~ 75%

Atmospheric pressure
700~ 1060 hPa

Power supply
220V ± 22V 50Hz ± 1Hz

Operating frequency
530KHz±2
Load: Monopolar cut coagulation 300Ω, Bipolar coagulation 100Ω



Rated output power
a)Pure cut: 1W ~ 300W(Peak voltage 1500V)
b)Mixed cut 1: 1W ~ 250W(Peak voltage 2000V)

c)Mixed cut 2: 1W ~ 150W(Peak voltage 2500V)
d)Electrocoagulation 1: 1W~ 100W(Peak voltage 3500V)

e)Bipolar coagulation:1W ~ 50W(Peak voltage 620V)

Overall energy consumption
≤1400VA


Transport and storage
a)Ambient temperature range: -40℃~ +55℃
b) Relative humidity range: ≤93%

c)Atmospheric pressure range: 500hPa ~1060hPa
