ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002
Contact Now

ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002

Minimum Order Quantity : 1pc Price : $1,799.00 - $1,999.00/Pieces
Packaging Details : Standard export packing Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 50000Pieces/month
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: DM002

Detail Information
Power Source: Electric Warranty: 1 Year
After-sale Service: Online Technical Support Material: Metal, Plastic
Shelf Life: 1years Quality Certification: Ce
Instrument Classification: Class I Safety Standard: GB15979-2002
Product Name: Maternal And Fetal Monitor Standard Parameters: TOCO,FHR,FM
Optional Parameters: Twin Montiroing,FAS,touch Screen ,trolley FHR Working Frequency: 1.0MHz
TOCO Measurement Range:: 0-100 Units Measurement: 26.0*40.0*42.0cm
Gross Weight: 9.5kg Alarm: Available
Display: 12 Inch TFT Language: Chinese,Turkey,Spain,Poland,French,Portuguese,German,Russian

Product Description

ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002


Product Description
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 0
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 1
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 2

Introduction



This series is a lightweight, compact fetal and maternal monitor, it can meet the need of whole stages of labor (including antepartum and intrapartum monitoring for fetus and mother),It also can be connected to the obstetrical central station.

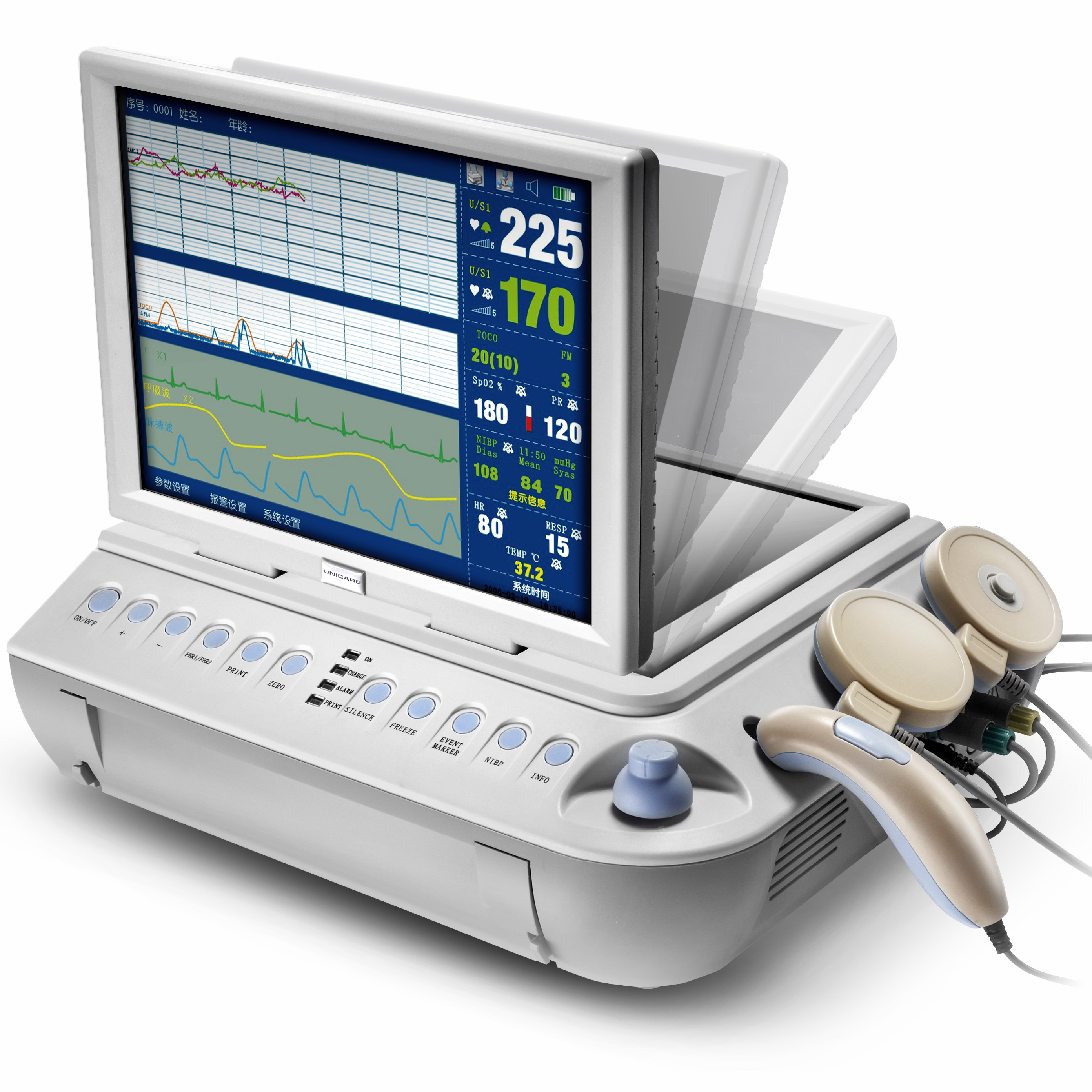

Main features ●12.1”TFT color LCD screen , any angle rotation design ●Linux operation system, stable and easy operation ●48-hour data recall ●3 kinds of paper width available: 112/150/210MM ●5 different operation interfaces ●Automatic fetal movement detection ●High sensitive 12 element 1MHz F.T.M. transducer ●Dual power supply system of AC and built-in rechargeable lithium battery ●Net work function

Standerd parameters:
TOCO,FHR,FM
Option:
twin montiroing,FAS(Fetal acoustic simulator)





  FHR

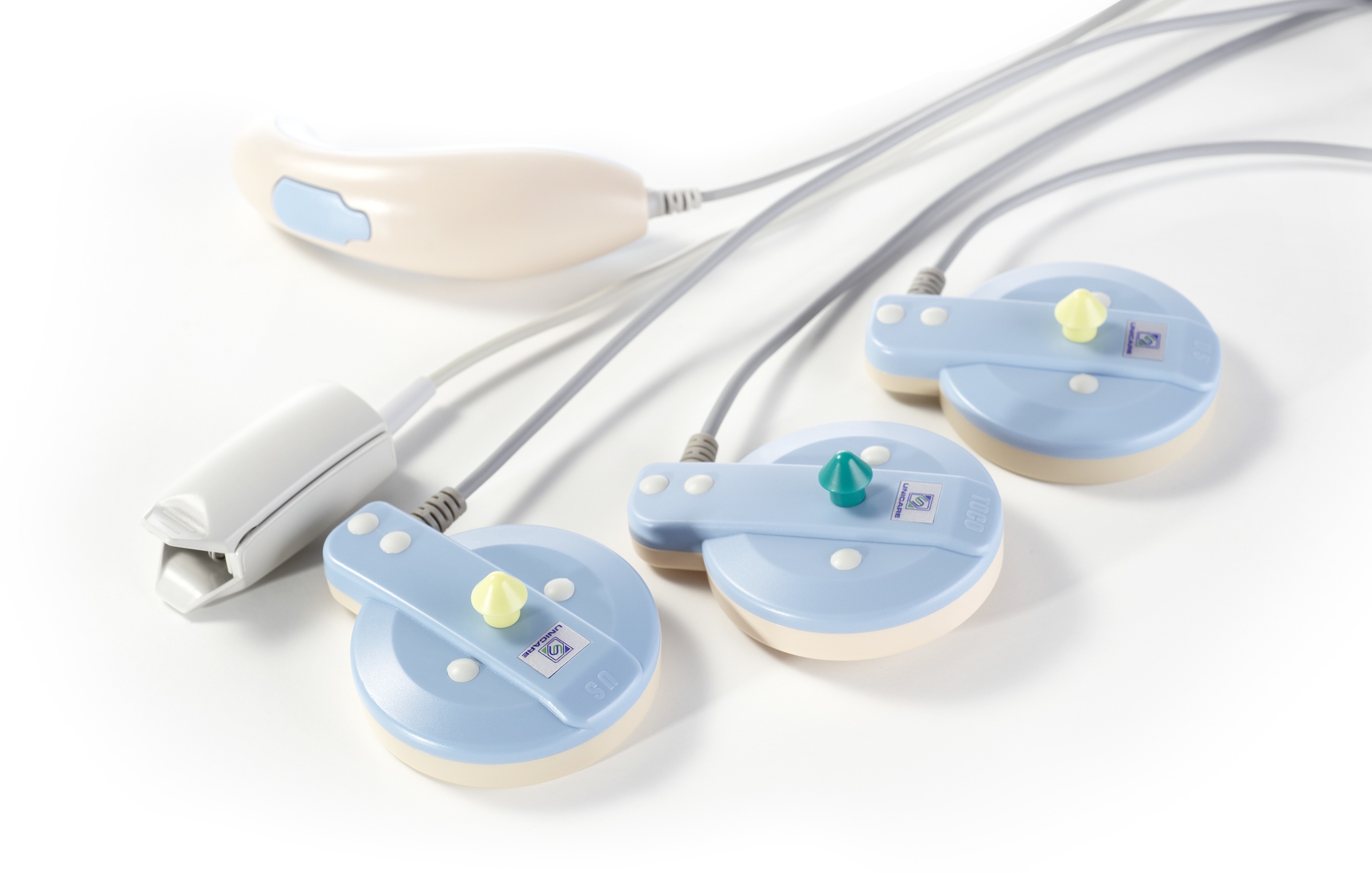

Transducer: Multi-crystals, wide wave beam, pulsed-wave working method, high sensitivity

Strength: < 5mW/cm2
RESP
Working Frequency: 1.0MHz

Signal Processing: Special DSP system and modern recognition
Alarm Range: High Limit: 160, 170, 180, 190 bpmSpO2
Measurement Range:50～240bpm

Alarm Range: High Limit: 160, 170, 180, 190 bpm  Low Limit: 90, 100, 110, 120 bpm
NIBP
Maximum Audio Output Power: 1.5 Watt
TOCO
Measurement Range: 0-100 units
Display
 Type: 12.1″, color TFT LCD - Resolution: 800×600 pixels
Gel
Viscous aqueous non-sensitizing, hypo-allergenic and non-irritating to skin. Bacteriostat (not sterile)
Size and Weight:
  Type: 12.1″, color TFT LCD - Resolution: 800×600 pixels
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 3
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 4
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 5

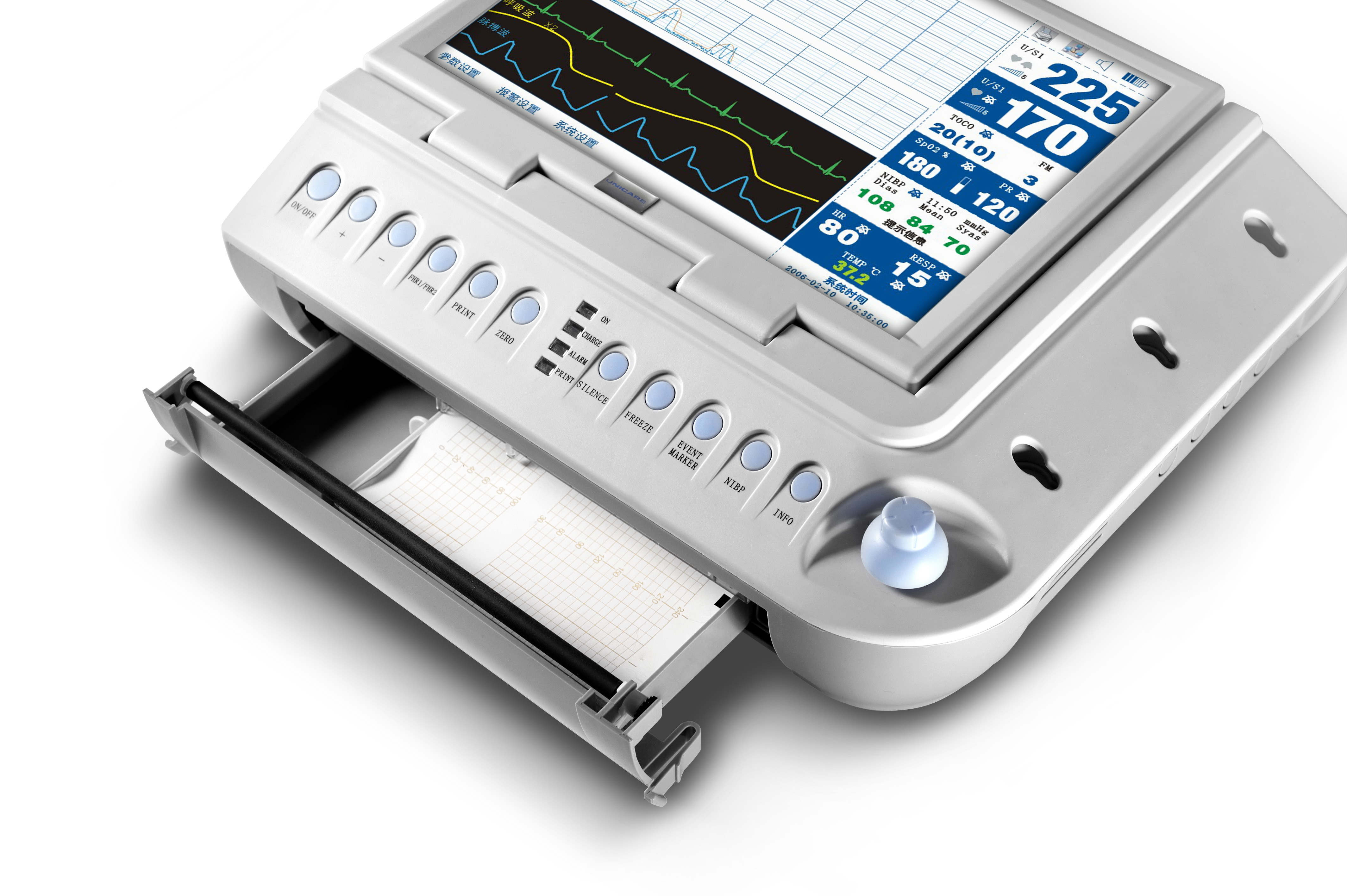

Recorder - Recording speed: Real-time recording : 1cm/min, 2cm/min, 3cm/min Review of fast recording: up to 13mm/s - Paper type: 152 mm Z-folded thermosensitive printing paper FHR - Measurement method: Ultrasound Pulsed Doppler - Ultrasonic intensity: < 5mW/cm2 - Ultrasonic frequency: 1.0MHz, deviation less than ±10％ - FHR Measurement Range: 50bpm ~ 210bpm - Resolution: 1bpm - Accuracy: ±2bpm - Output beam intensity(Iob): <20mW/cm2 TOCO - Measurement method: Strain Gauge Sensor Element - Measurement range: 0~100 units (relative to %) - Resolution: 1% (1 unit) - Nonlinear accuracy: ≤ ±10% - TOCO baseline: 0, 5, 10, 15, 20 ,optional



FM - Measurement method: Doppler ultrasound - FM intensity measurement range: 0-40 (%) relative range - Resolution: 1％ - Model: Auto/Manual NIBP - Measurement way: Automatic oscillometry - Measurement mode: Manual , Auto - Intervals for Auto measurement time: 3 min, 5 min, 10 min, 15 min, 30 min, 60 min, 90min, 2h, 4h - Measurement kinds(Adult): Sys, Dia, Map - Measurement range (mmHg): SpO2 - Measurement range: 0% to 100% - Alarm range: High/low limit: 85% to 100% - Resolution: 1% - Accuracy: 70% to 100%: ± 2% 35% to 69%: ±3% 0% to 34%: undefined
Details Images
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 6
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 7
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 8
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 9
ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002 10
