China high quality real time rt PCR device with rt pcr test kit for laboratory
China high quality real time rt PCR device with rt pcr test kit for laboratory China high quality real time rt PCR device with rt pcr test kit for laboratory China high quality real time rt PCR device with rt pcr test kit for laboratory China high quality real time rt PCR device with rt pcr test kit for laboratory China high quality real time rt PCR device with rt pcr test kit for laboratory
Contact Now

China high quality real time rt PCR device with rt pcr test kit for laboratory

Minimum Order Quantity : 1pc Price : $4,999.00 - $5,999.00/Sets
Packaging Details : Standard packing Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 5000 Set/Sets per Month pcr test
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: HM01

Detail Information
Type: Clinical Examination Aids Instrument Classification: Class II
Warranty: 2 Years, 2 Years After-sale Service: Online Technical Support
Product Name: Rapid RT-PCR SYSTEM Sample Capacity: 15-100ul
Dimensions (L*W*H,Unit:mm ): 276*330*208 Weight: 8,2kg
Fluorescent Dye: F1 F2 F3 Number Of Channels: Four Channels
Power Input: 100-240VAC, 50/60Hz Temperature: 5℃-40℃
Certificate: CE ISO

Product Description



China high quality real time rt PCR device with rt pcr test kit for laboratory

Product Description
1.1 Intended use

Based on the principle of fluorescence quantitative polymerase chain reaction, this product is used together with matching
detection reagents. It is clinically used for qualitative and quantitative detection of analytes in nucleic acid samples (DNA/RNA) derived from human bodies, including pathogens and human genetic items.

1.2 The principle of product work

According to the set operating parameters, Rapid RT-PCR System provides the required temperature environment for RNA reverse recording, denaturation, annealing, extension cycle amplification and melting through the temperature control module. It collects the fluorescence signal generated by the amplification module in real time and analyzes the data with application software for amplification and analysis of specific target genes or nucleic acid sequences in the samples.

1.3 Name and model specification

Product name:Rapid RT-PCR System
Model specification:16A,8A

1.4 Product structure composition

The instrument is composed of communication module, temperature control module, optical circuit module, motion module, power module and software (release version No.: V1.0).

Technical Parameter
Parameter
Value
Average heating rate
From 50℃ -90℃, ≥ 3.5℃ / s
Maximum heating rate
From 50℃ -90℃, ≥ 5.0℃ / s
Average cooling rate
From 90℃ -50℃, ≥ 3.5℃ / s
Maximum cooling rate
From 90℃ -50℃, ≥ 5.0℃ / s
Module temperature control accuracy
≤0.4℃
Temperature accuracy
≤0.4℃
Temperature uniformity
±0.8℃
Repetitiveness
The CV of the Ct value should not be greater than 3%
Sample linearity
Linear regression coefficient was r≥ 0.980
Fluorescence linear
Linear regression coefficient was r≥ 0.990
Detail Image

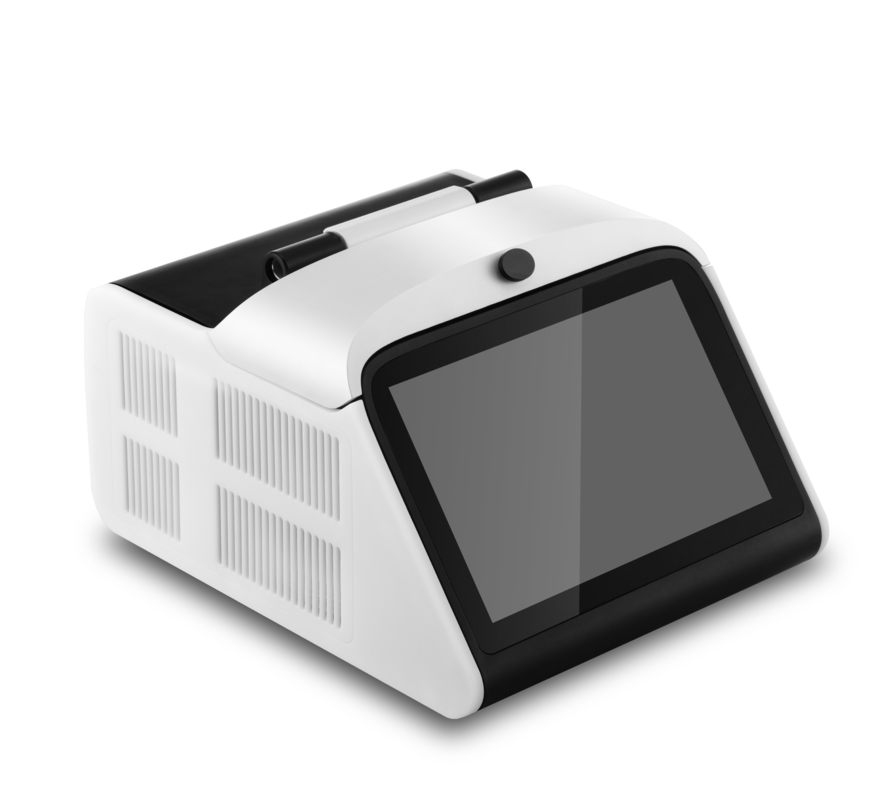

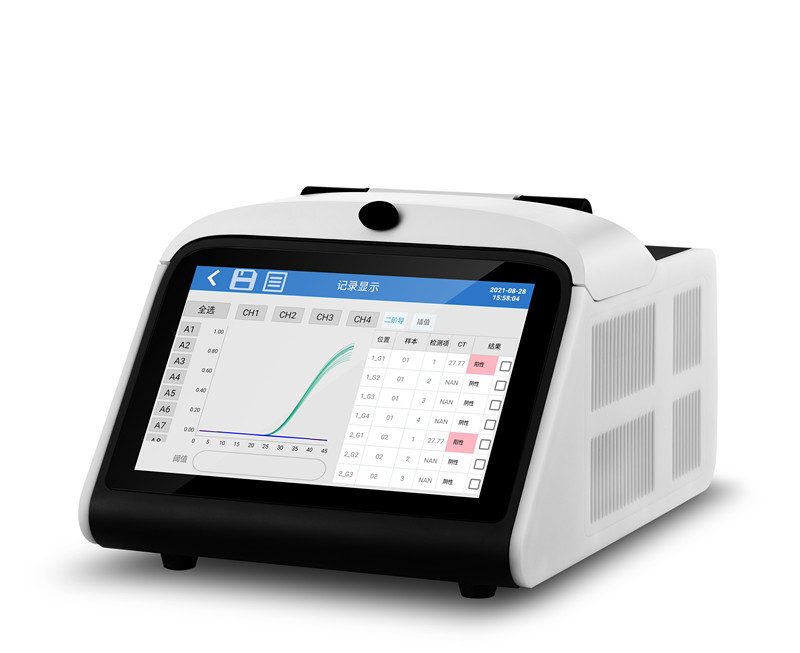

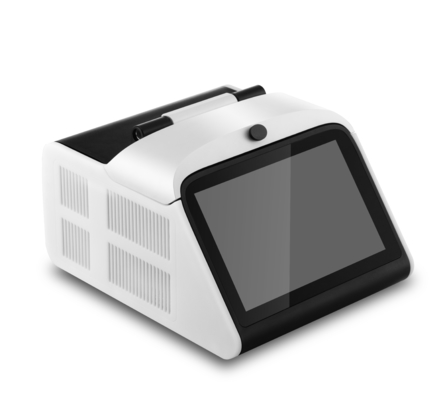

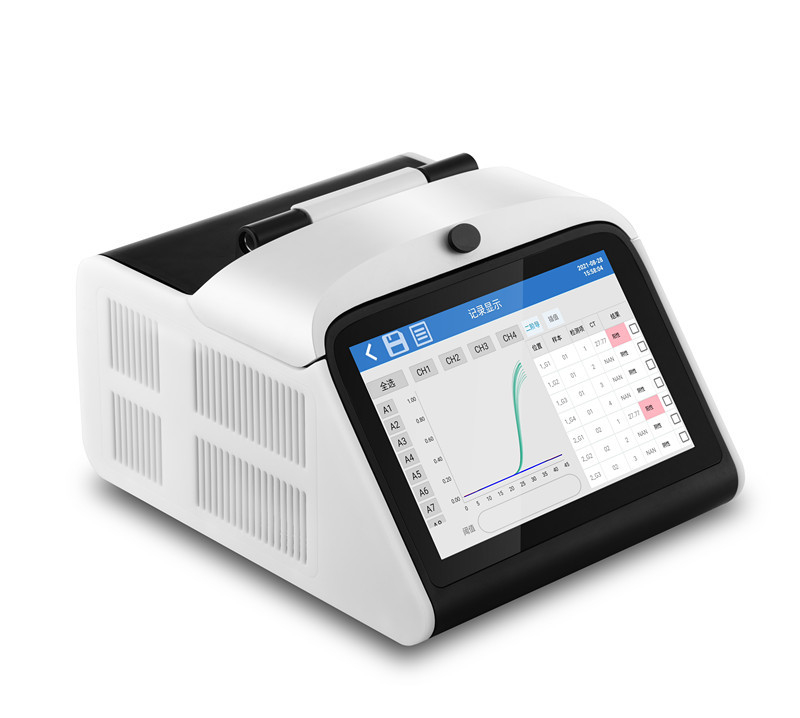

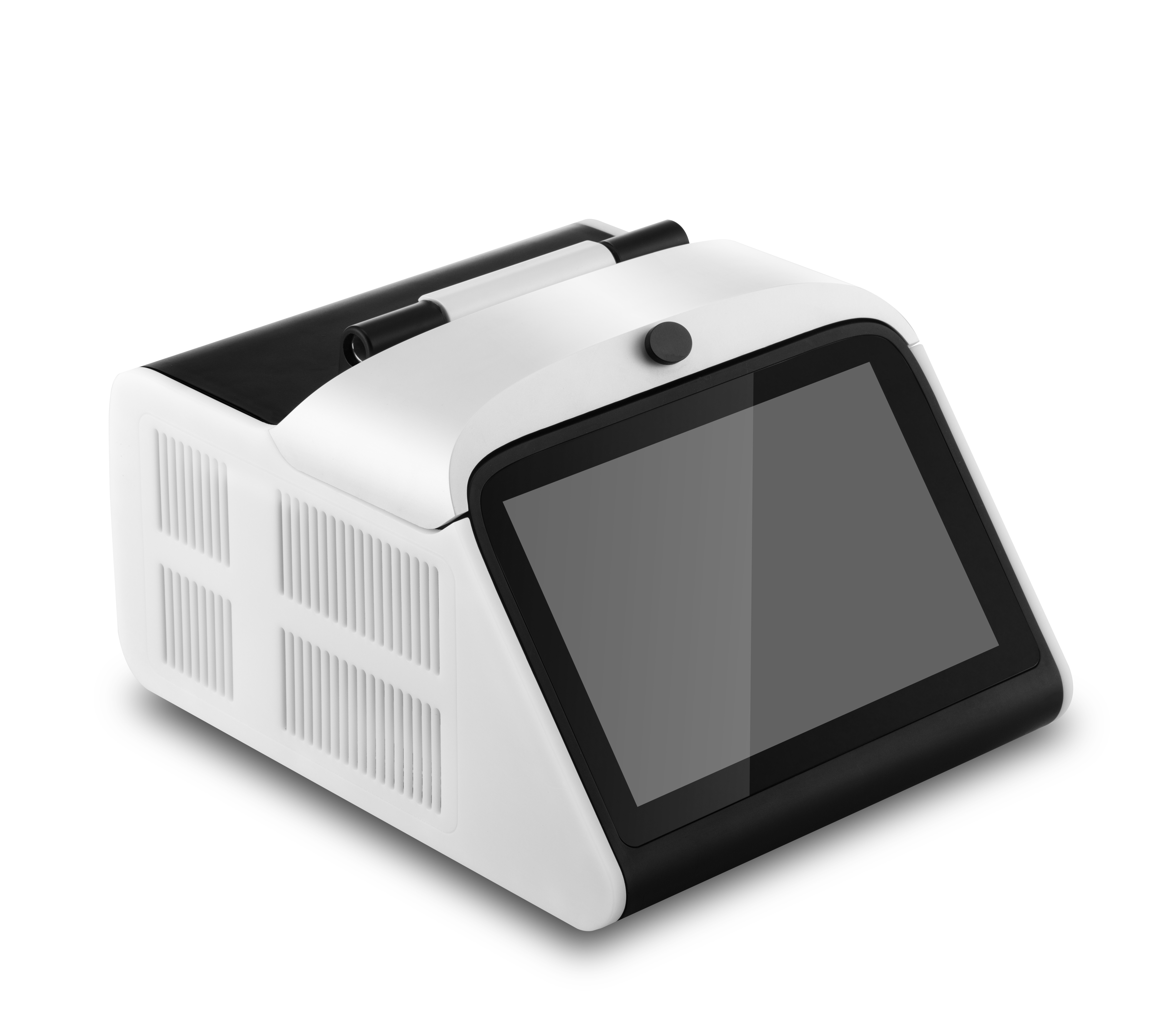

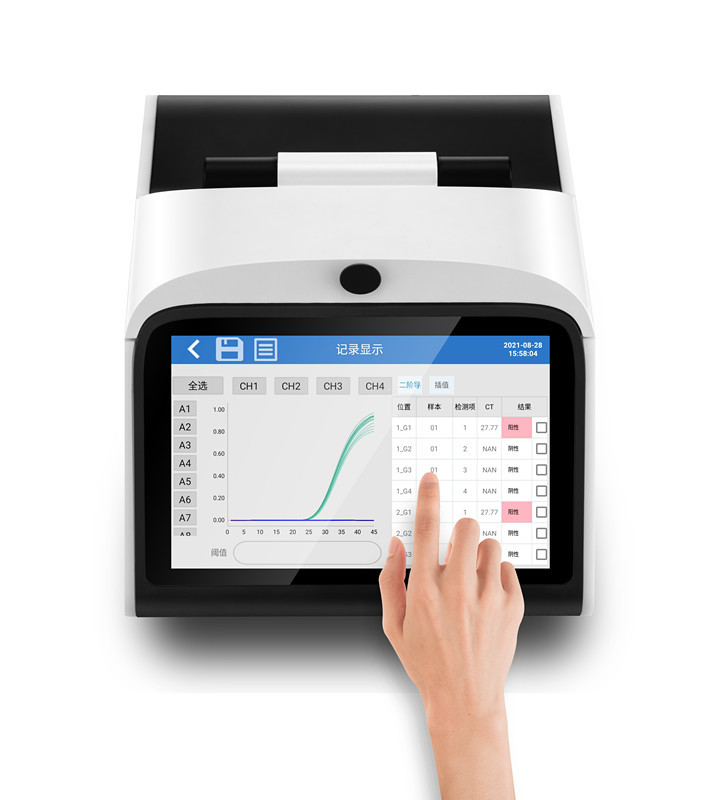

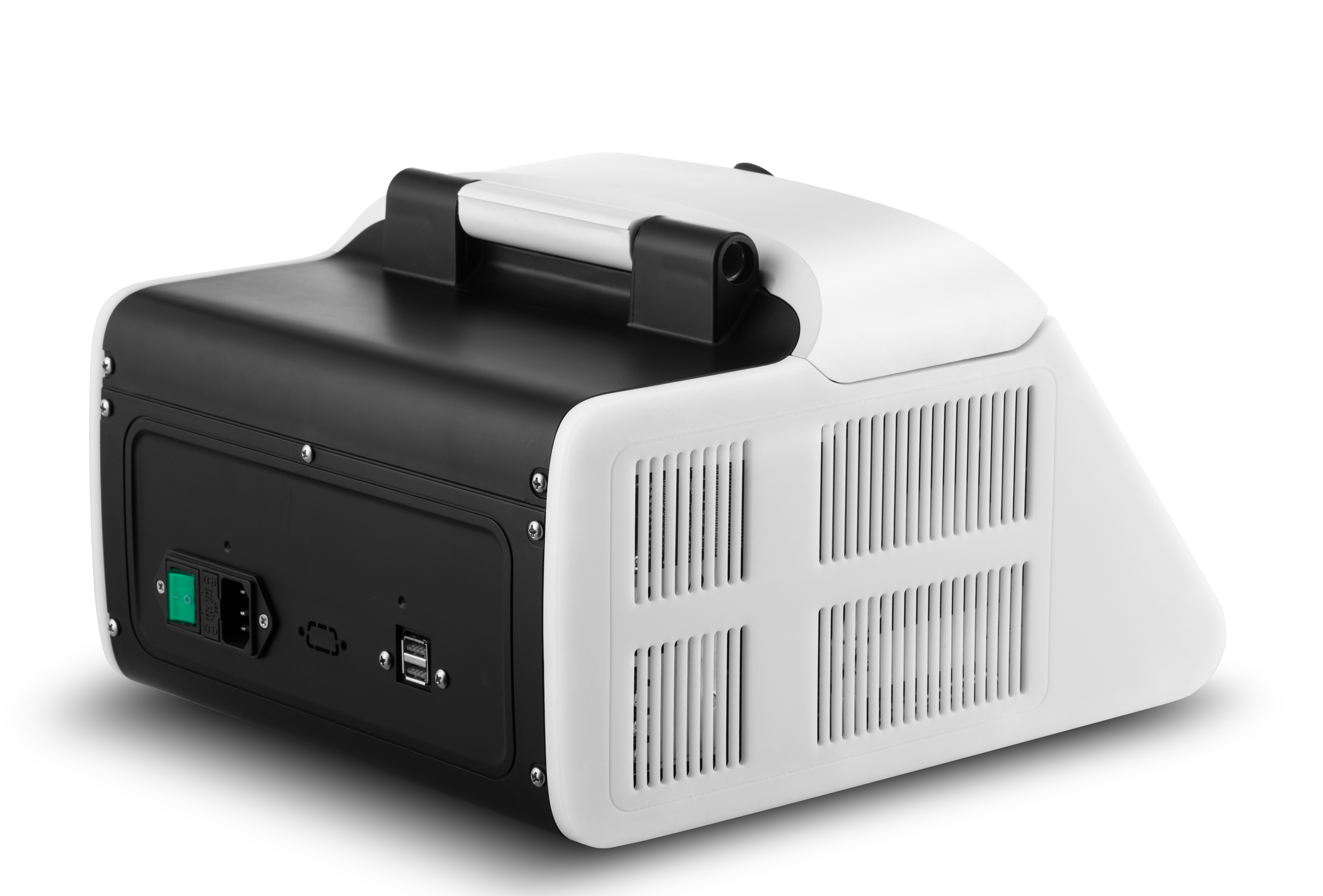

China high quality real time rt PCR device with rt pcr test kit for laboratory 0
China high quality real time rt PCR device with rt pcr test kit for laboratory 1
China high quality real time rt PCR device with rt pcr test kit for laboratory 2
China high quality real time rt PCR device with rt pcr test kit for laboratory 3
China high quality real time rt PCR device with rt pcr test kit for laboratory 4
