Gentier 96R Real-time Gradient PCR Long PCR Touch Down 10 inch touch screen pcr analyzer PCR15

Name: Gentier 96R Real-time Gradient PCR Long PCR Touch Down 10 inch touch screen pcr analyzer PCR15
Brand: SUCE
SKU: PCR15
Price: 15 USD
Availability: InStock
Rating: 4.7 (178 reviews)

Minimum Order Quantity :	1pc	Price :	$15,899.00 - $16,999.00/Units
Packaging Details :	Standard package	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	1000 Set/Month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	PCR15

Detail Information
Type:	Genes & Life Science Equipments	Instrument Classification:	Class I
Warranty:	1 Year	After-sale Service:	Online Technical Support

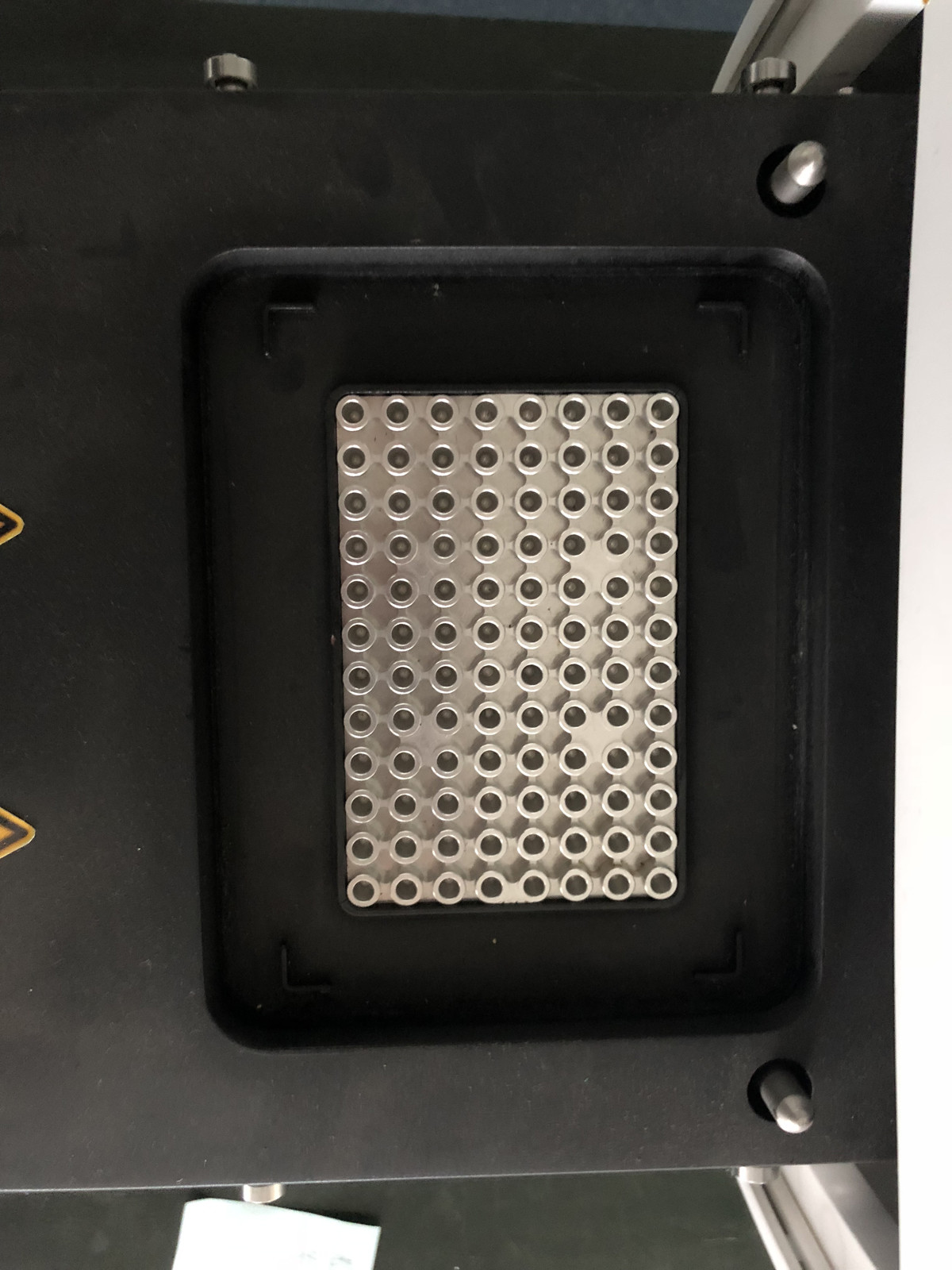

Product Name:	Real-Time PCR System	Sample Block:	96wells*0.2ml
Temperature Range:	0°C-100°C	Detection Method:	6 Channels Scanning At The Same Time, No Edge Effect.
Reaction Volume:	0-100 μL	Detection Time:	7 Seconds For 96 Wells For All Channels
Detection Positionmodule:	Excitation And Scan At Top	Detector:	Photodiode
Excitation Source:	6 LEDs	PACKING:	67.058.058.0CM ,38KG

Product Description

Gentier 96R Real-time Gradient PCR Long PCR Touch Down 10 inch touch screen pcr analyzer PCR15

Product Description

Product Name	Real-Time PCR System
Sample capacity(wells)	96
Reaction Volume	0-100 μL
Consumables	0.2ml 96-well Plates(unskirt); 0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear,frosted,white tube)
Temperature range	0°C-100°C
Heating/cooling method	Peltier
Max heating rate	6.1°C/sec
Average heating rate	4.5°C/sec
Max cooling rate	5.0°C/sec
Average cooling rate	2.8°C/sec
Temperature accuracy	±0.1℃
Temperature uniformity	±0.1℃
Gradient Range	1°C-40°C
Gradient block	12 row
Special temperature portocol	Gradient PCR,Long PCR,Touch Down PCR
Fluorescence Dyes	FAM,SYBR GreenI VIC, HEX TET, JOE TAMRA. CY3. NED,ROX. Texas-Red Cy5
Communication Interface	USB adapter (to PC), bluetooth adapter

10 inch touch screen, all commends in one touch Easy-to-use Software Advantage Temperature Control LED-excitation and PD-detection,7seconds top optical scanning Outstanding and powerful data analysis functions

Fluorescent Quantitative Detection system

1. Applications
The 96-well fluorescent quantitative PCR detection system allows real-time detection of amplified DNA.
Application areas include research into the human genome, forensics, cancer, tissue, population biology, palaeontology, zoology and botany and in clinical diagnosis of virus, cancer and genetic diseases.

PCR detection system belongs to IVD medical equipment, which is to use the polymerase chain reaction to perform quantitative analysis of different genes in a clinical laboratory.

2. Features
* Novel and human-orientated running interface for smooth
* The adopted fluorescent real-time detection mode realizes simultaneous amplification and detection in the same tube without need of post experimental treatment.
* Advanced thermoelectric technology ensures fast and steady heating and cooling of the ultra-fast heat cycling
* Multi-point temperature control ensures consistent temperature of 96 sample
* It can create a temperature gradient with 4 Thermo electric
* Stable and accurate 1～36C gradient function makes optimising PCR conditions simple and
* The constant temperature function of SOAK enables low-temperature storage of PCR reagents.
* It uses maintenance-free long life LED excitation light
* The advanced fibre optic transmission technology makes the photo-electric detection system very sensitive and
* Precise optical path system and ultra-sensitive PMT system provide the most accurate and sensitive fluorescent
* It can create a real-time dynamic monitor of the entire PCR amplification
* It has high linear range up to 10 orders of start DNA copies without serial
* It is unnecessary to open the PCR reaction tube, ensuring samples are protected from contamination during and after PCR and ensures accurate
* Multiplexing is possible
* The hot-lid technology allows for oil-free operation of PCR
* Automatic hot-lid technology needs no manual opening/closing and ensures constant pressure of the hot-lid used with different height reaction tubes or plates.
* User friendly interface with flexible programme setting and analysis and reporting using the stored parameters.
* It can print out one or more samplereport(s).
* Automatic, correct and timely remote networked services provide the latesttechnical support.
* Unique patented advanced module bottom fluorescent detection
