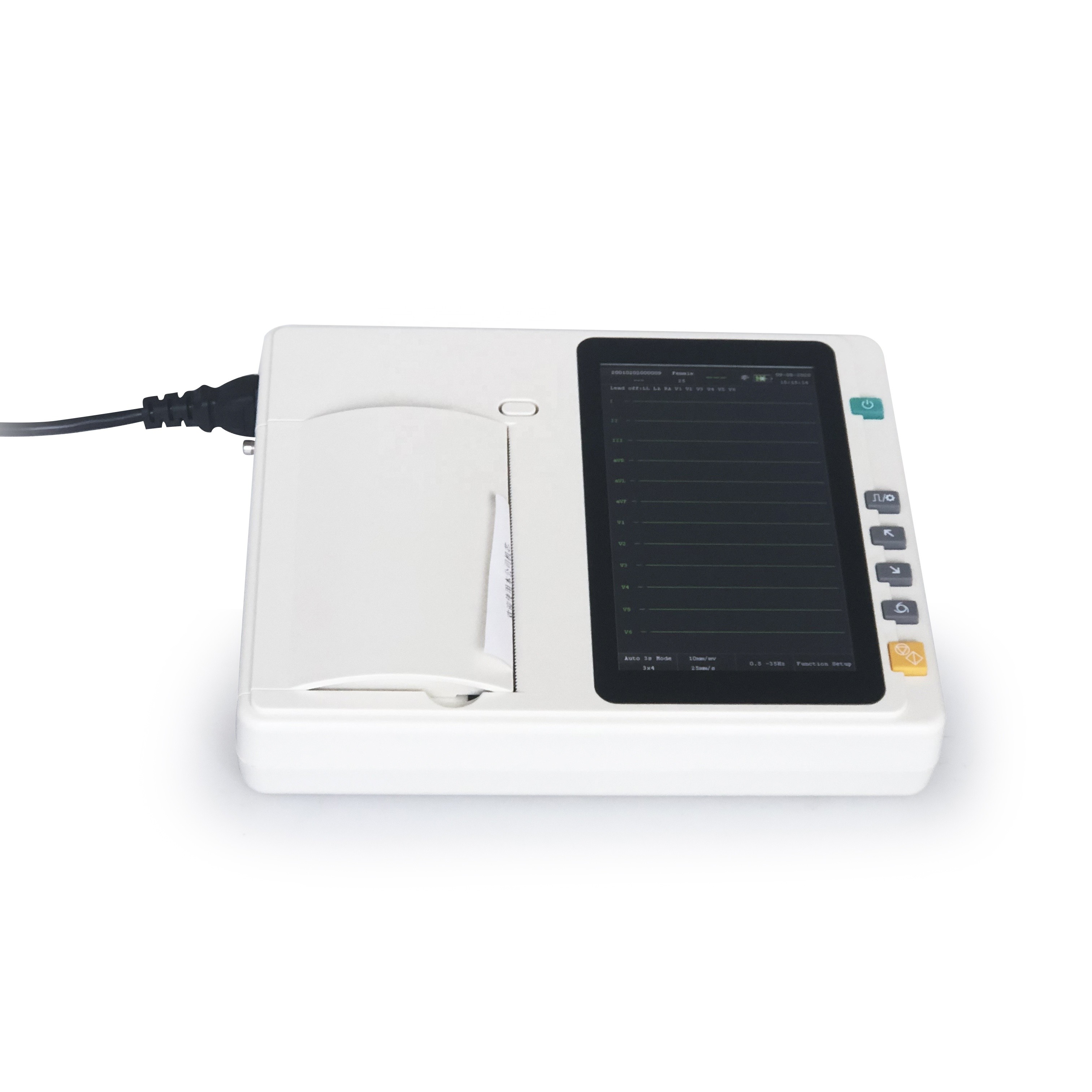

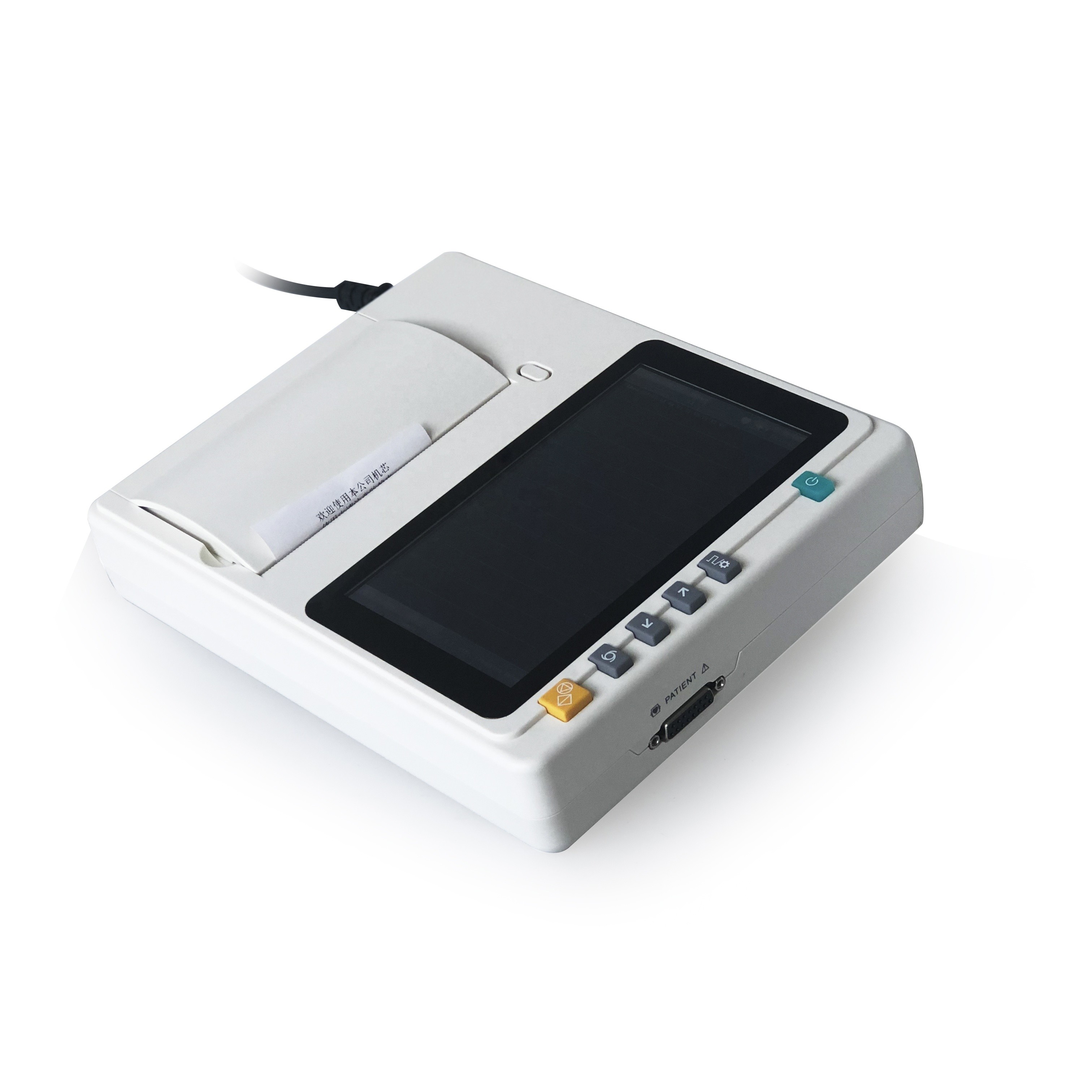

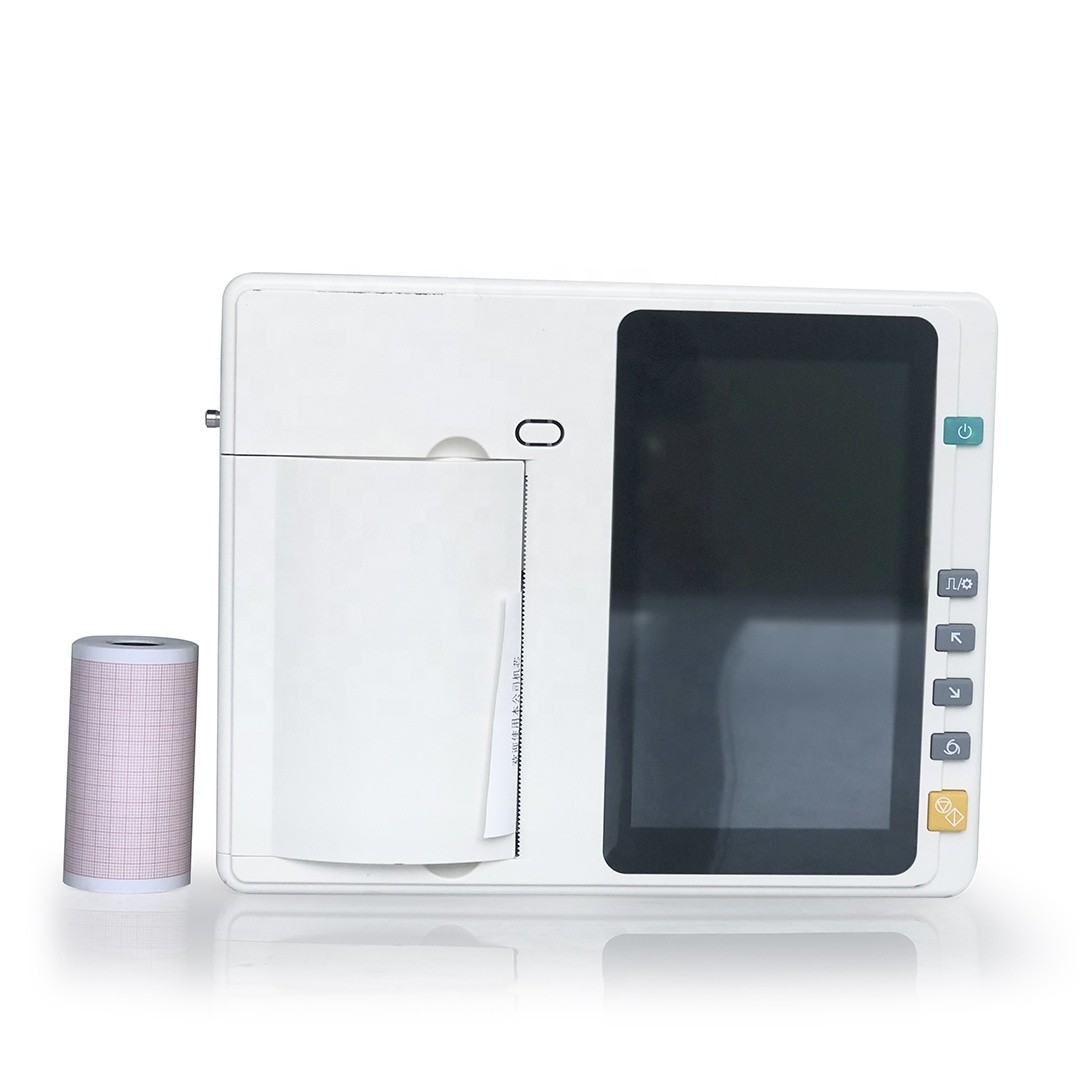

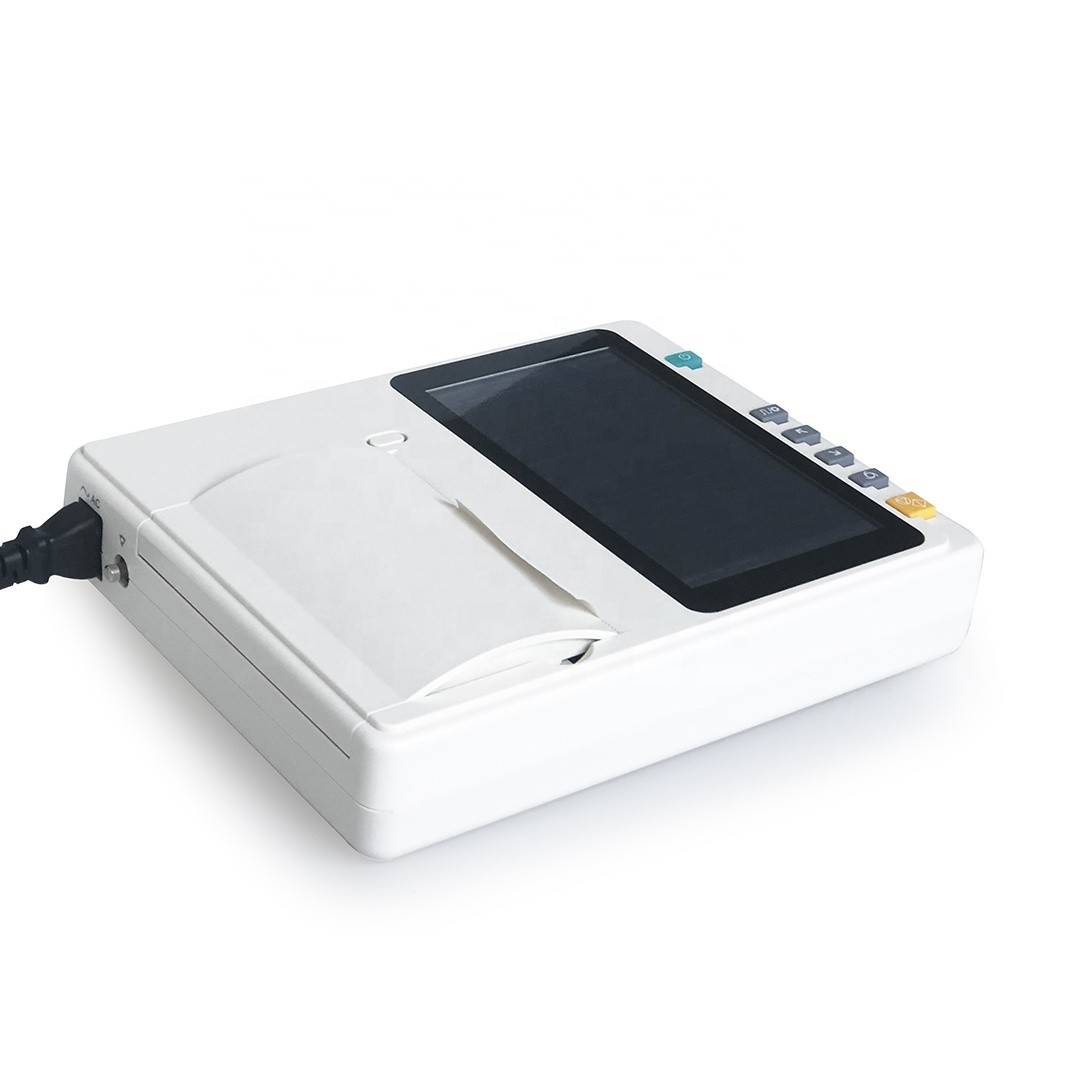

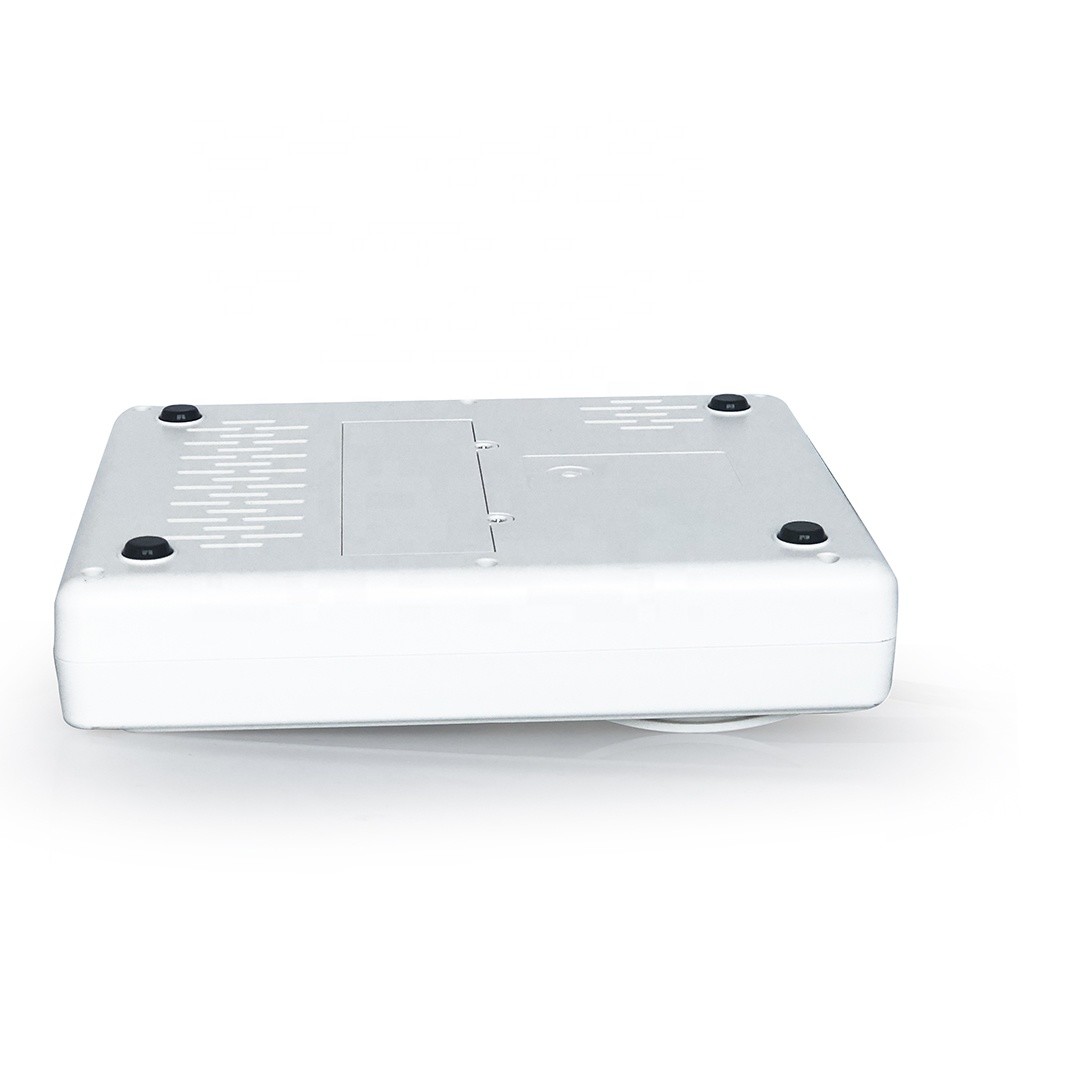

High resolution digital 12 channel portable ECG machine with LCD display

Contact Now

High resolution digital 12 channel portable ECG machine with LCD display

Minimum Order Quantity :	1pc	Price :	$400.00 - $500.00/Pieces
Packaging Details :	1 pc for carton, 6 pcs for cartons are available/ECG device	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Piece/Pieces per Month

Place of Origin:	China	Brand Name:	Konsung
Certification:	CE,ISO13485	Model Number:	ECG 12

Detail Information
Power Source:	Electric	Warranty:	2 Years
After-sale Service:	Online Technical Support	Power Supply Mode:	Removable Battery
Material:	Plastic	Shelf Life:	2 Years
Quality Certification:	Ce	Instrument Classification:	Class II
Safety Standard:	GB9706.1	Product Name:	ECG Machine
Input Circuit:	Floating And Built-in Defibrillator Protection	Acquisition Mode:	Simultaneous 12 Leads Acquistion
EMG Filter:	25Hz/30Hz/40Hz/75/Hz/100Hz/150Hz	DFT Filter:	0.05Hz/0.15Hz
AC Filter:	50Hz/60Hz	Safety Standard:	IECI/CF
Normal Sample Rate:	1000 Sps/channel	AC Power Supply:	100-240V, 50/60Hz, 30VA-100VA
DC Power Supply:	14.8V/220mAh, Built-in Lithium Battery	Port:	Shanghai

Product Description

Touch screen

7 inch LCD screen, touch operation

12 leads simultaneous acquisition

Easy to acquisition 12 leads simultaneous

Advanced algorithm

Advanced algorithm for automatic measurements and interpretation

6-channel report printing

Built-in high-resolution thermal printer with 12-channel report printing

Large internal memory

Large internal memory which can be enlarged by USB flash disk Patients save/replay.

Product Paramenters

Product Name	ECG machine
Lead	standard 12 leads
Measurement range	±5mVpp
Time constant	≥3.2s
Frequency response	0.05Hz～150Hz (-3dB)
Sensitivity	2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV
Input Impedance	≥50MΩ
Input Impedance	＜0.05μA
Noise level	＜15μVp-p
Patient current leakage	＜10μAv(220V-240V)
Recording way	Thermal printing system
Recording Paper	Roll 80×20M
Paper Speed	12.5mm/s, 25mm/s, 50mm/s
Sample rate	1000sps/channel

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. How does it record an electrocardiogram (ECG)?

ECG includes three electrodes to ensure measurement accuracy. Two electrodes are discreetly integrated inside the main body of the watch, and the third electrode is in the stainless steel bezel of the watch. Users simply need to touch both sides of the bezel to start recording ECG anytime and anywhere.

2. What is the benefit of having an ECG on the wrist?

When a user feels symptoms such as palpitation, users can place his hand on his watch and in 30 seconds, ECG will record an electrocardiogram by detecting your cardiac electrical signals. After the measurement, Move ECG vibrates to notify users that the reading is complete.

3. How can I see the results?

After 30 seconds of measurement, ECG vibrates to notify users that the reading is complete. Where it displays if the heart is beating in a normal pattern or whether there are signs. Additionally, users can find a detailed graph in Health Mate of their long-term heart rate trends and ECG records.

4. How can I share my results or act on it?

Data collected by Move ECG and visualized in Health Mate can easily be shared with a doctor or healthcare professional, which can help assist with early diagnosis and prevention.

5. What is the difference between ECG machine and patient monitor?

Patient monitor and ECG machine can detect ECG, but there is still a big difference between the two, first of all, the patient
monitor is mainly to monitor heart rate, breathing, oxygen saturation, and it is a dynamic monitoring. Patient monitor will show that the ECG waveform is constantly changing, generally there is no storage function. If an abnormality occurs during the custody process, an alarm will be alarm immediately. The ECG machine in the 24-hour dynamic electro-electrogram test, the 24-hour heartbeat is recorded, and then analyze the specific situation, and there a powerful storage function.
