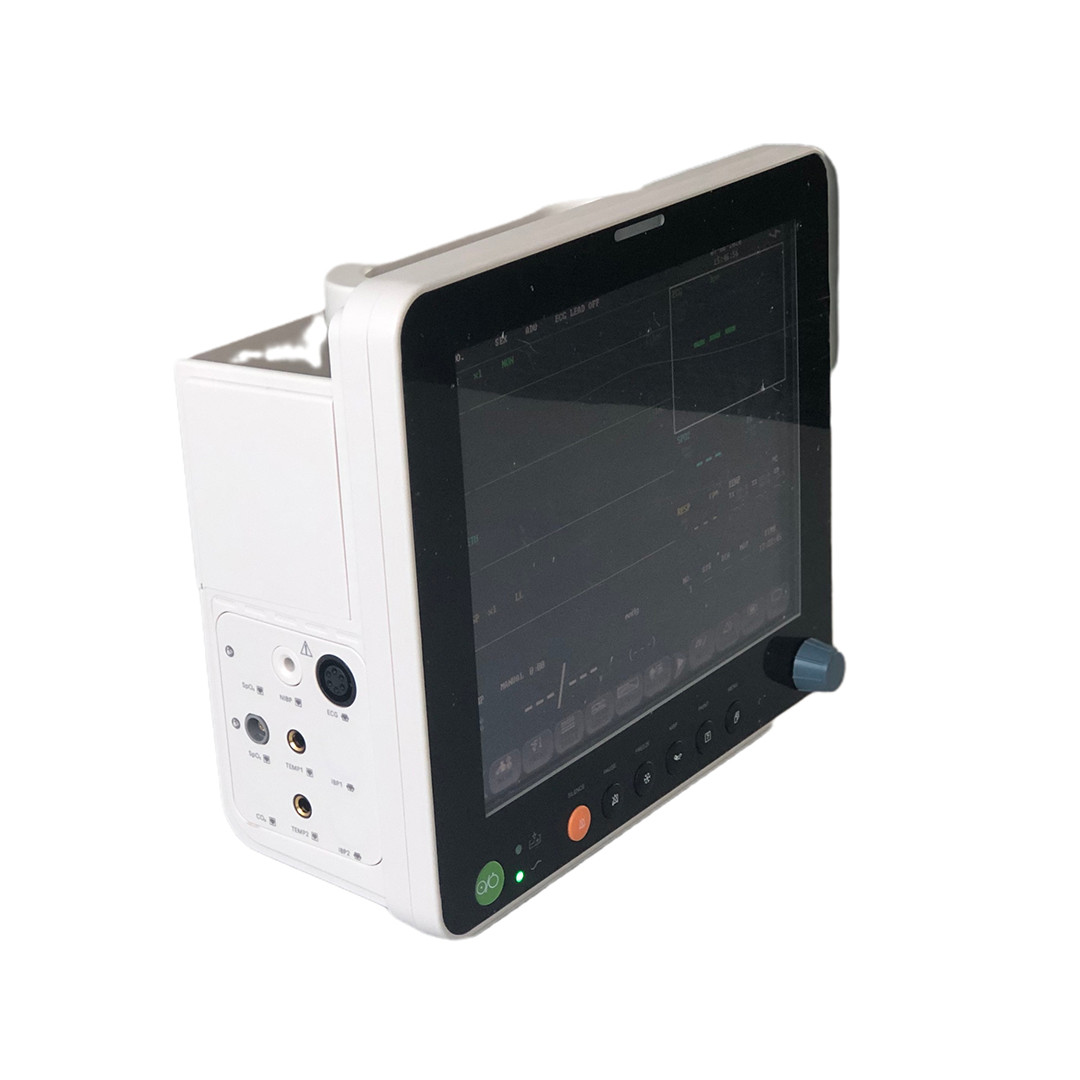

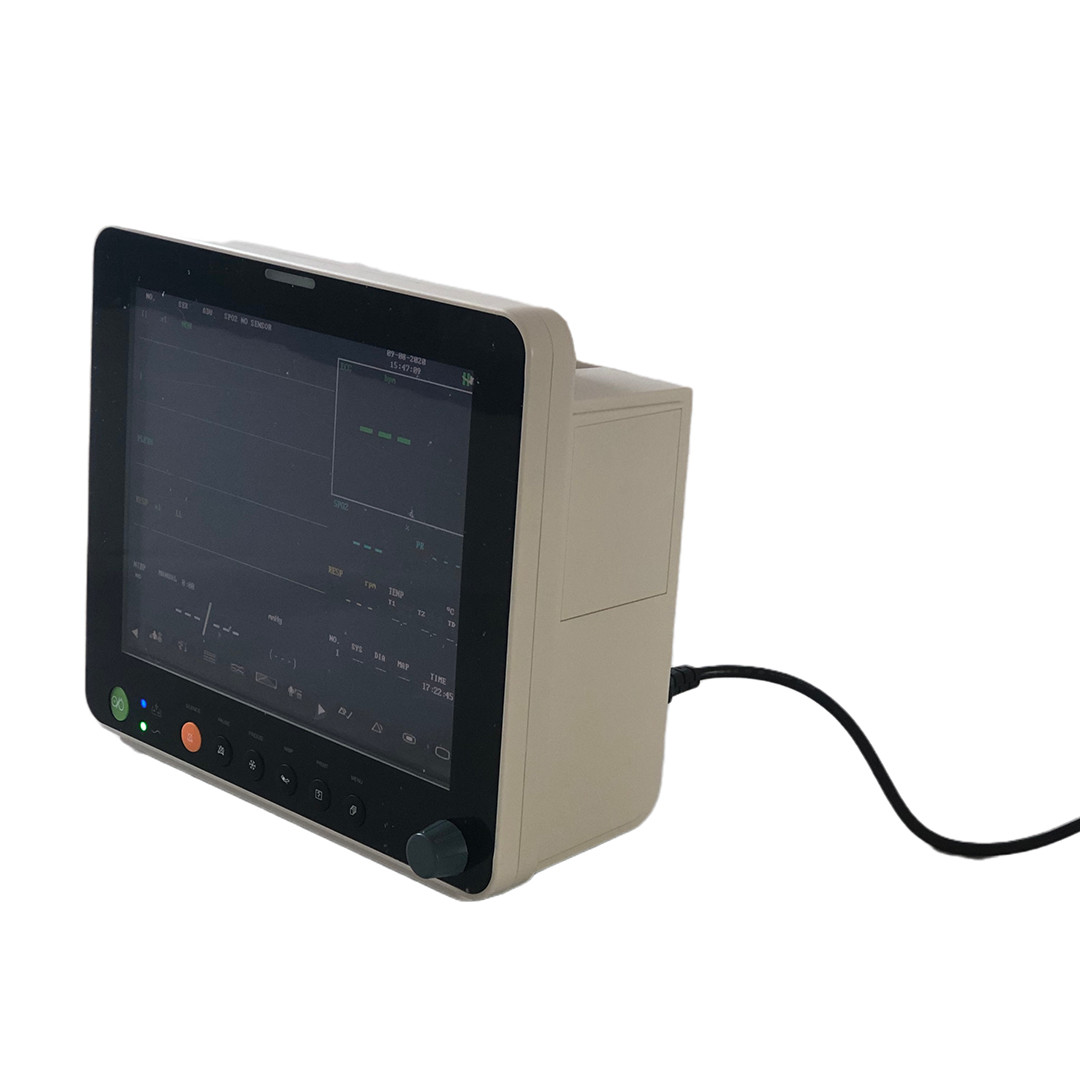

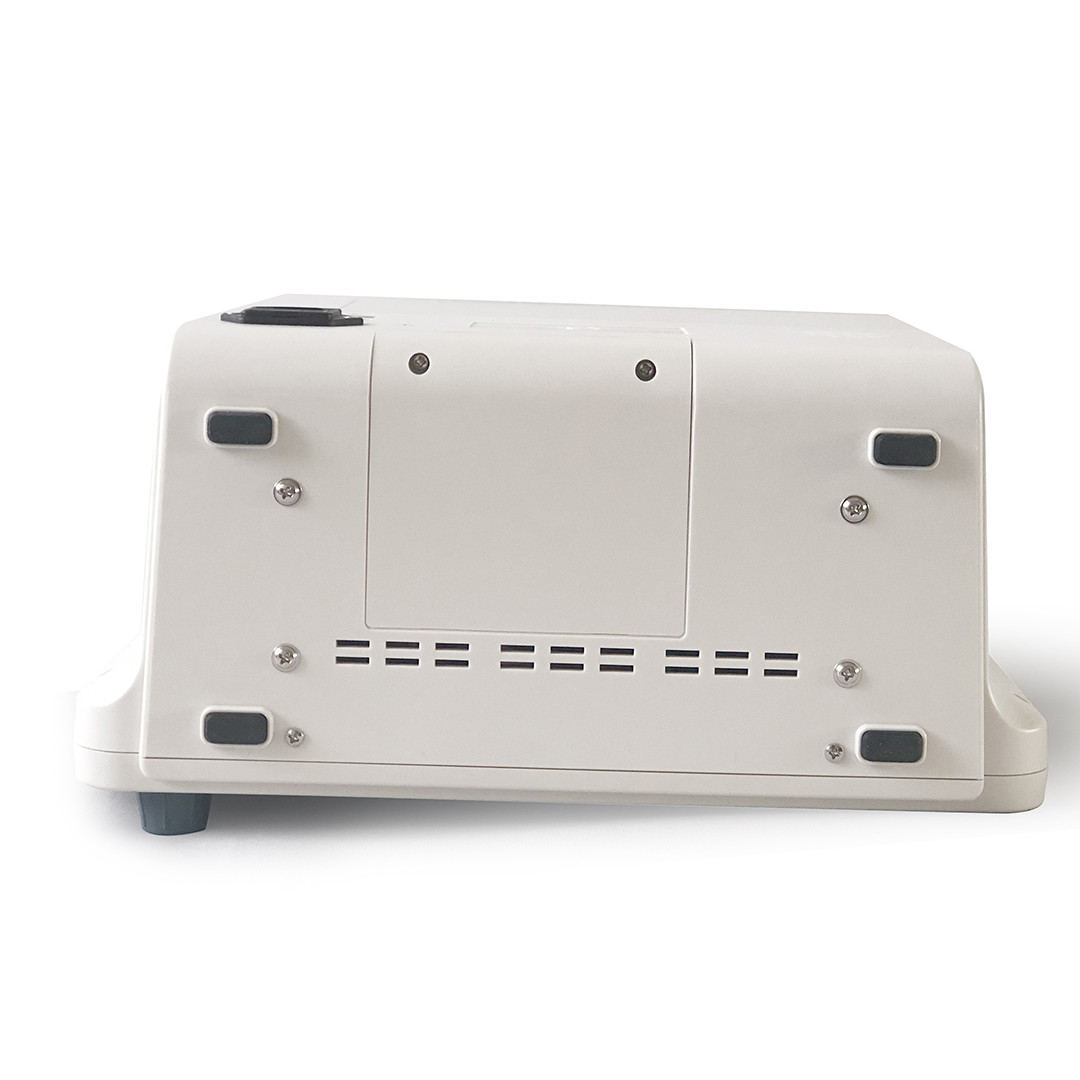

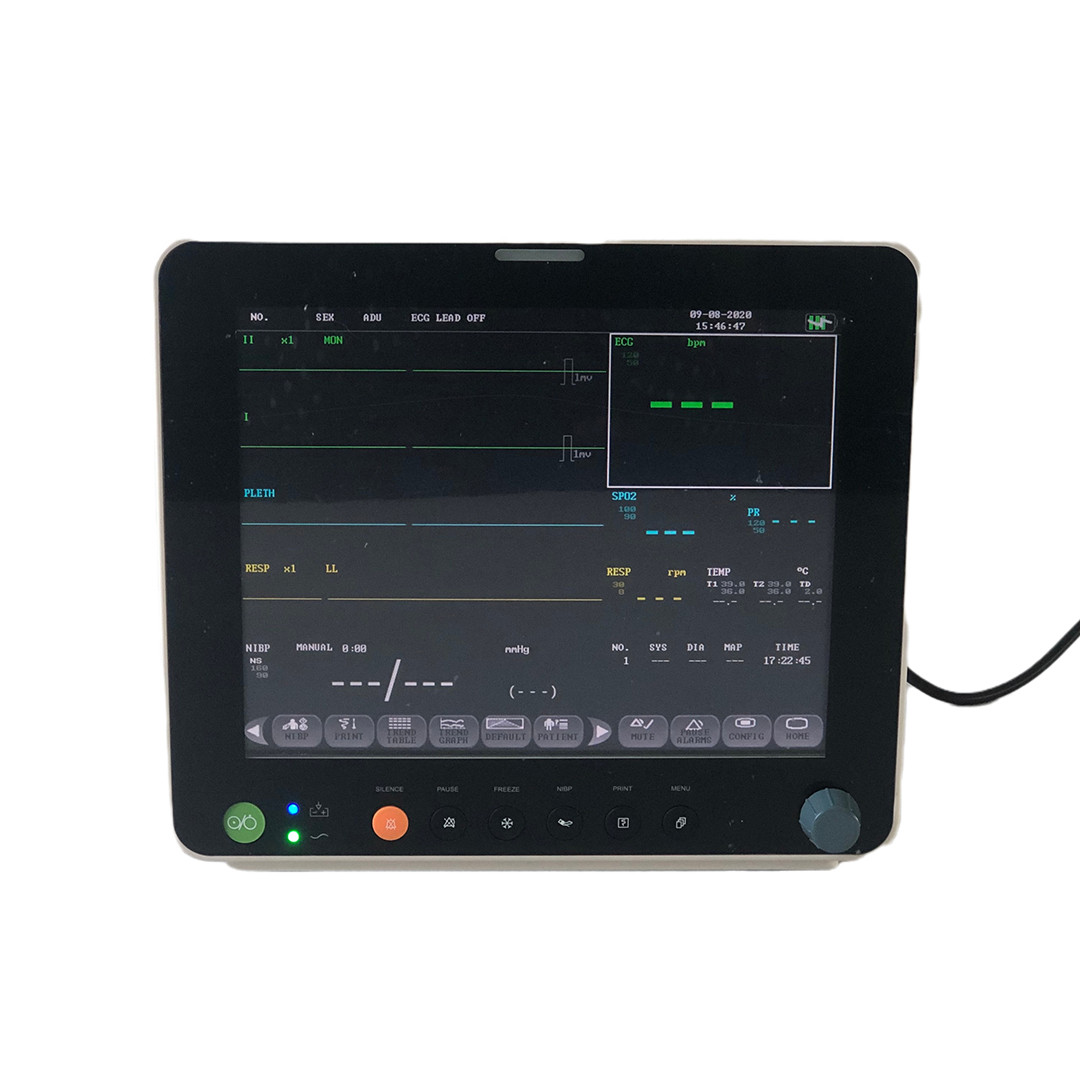

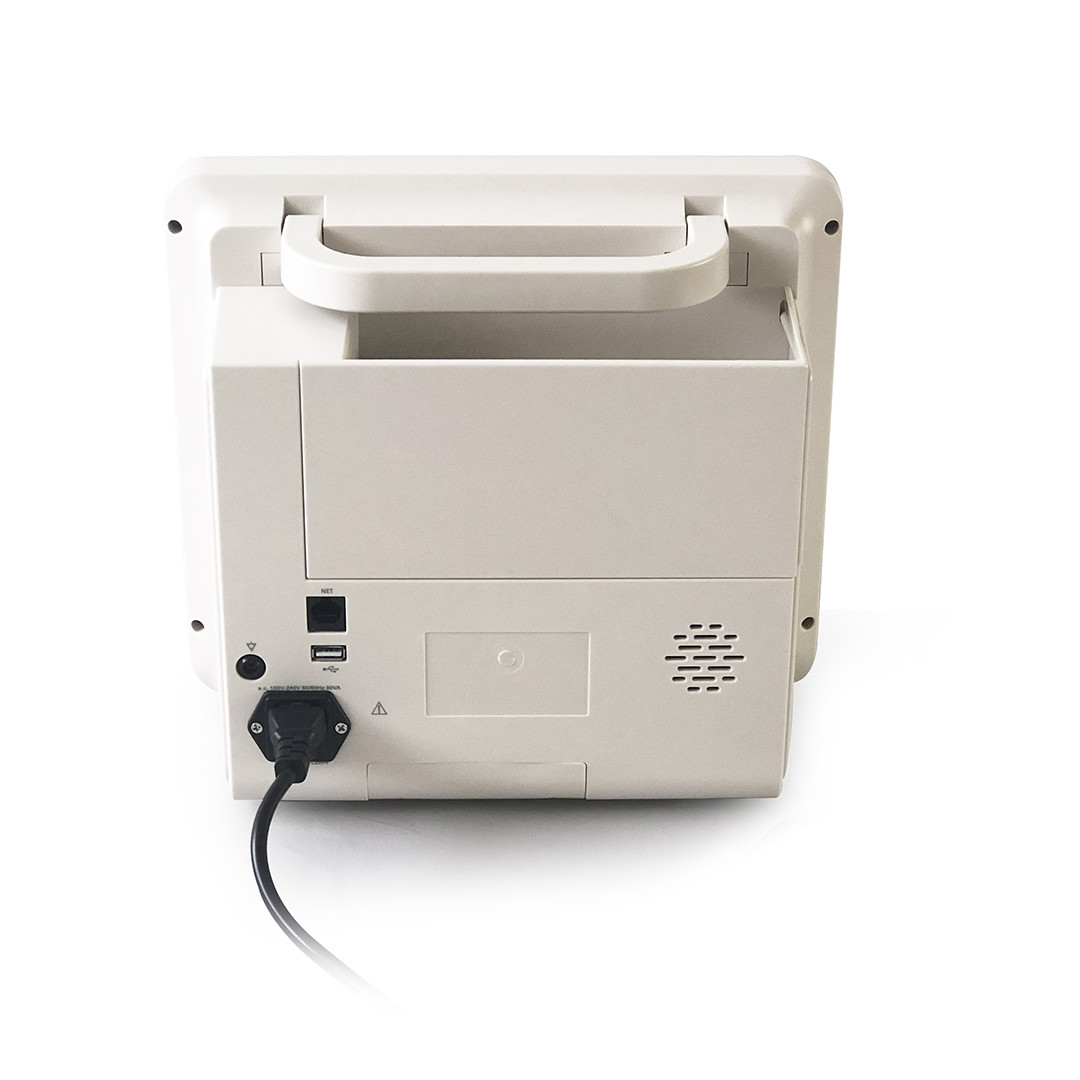

12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit

Minimum Order Quantity : 1 Piece Price : $800.00 - $1,000.00/Pieces
Packaging Details : 1 piece load into one carton, 48 pieces of carton put into 1 pallet/capnography patient monitor Delivery Time : about 5 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 3000 Piece/Pieces per Month
Place of Origin: China Brand Name: Konsung
Certification: CE,ISO13485 Model Number: Aurora PM12A

Detail Information

Power Source: Electric Warranty: 2 Years
After-sale Service: Online Technical Support Power Supply Mode: Removable Battery
Material: Plastic, ABS+PC Fireproof Materials Shelf Life: 2 Years
Quality Certification: Ce Instrument Classification: Class II
Safety Standard: 9706.1 Product Name: Capnography Patient Monitor
Size: 12.1 Inch Resolution: 800*600 Pixels
Thickness: 8.9cm Power Supply: 110V/60Hz Or 220V/50Hz
Power Consumption: 100V-240V~,1.0-0.5A Basic Parameters: ECG, NIBP, SpO2, RESP, Temp, PR/HR
Option Parameters: EtCO2, 2IBP, 12 Led ECG Type: Examination Therapy Equipments
Port: Shanghai

Product Description

Company Profile

Product Description
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 0

Long life, industrial grade TFT screen working life upon 50,000h (general less than 20,000h)
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 1

720 hours trends, shown as tabulation and graph.
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 2

1200 NIBP measurement records
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 3

3 – 8 rows of display adjustment
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 4

Display switch between Full ECG, Mini trends, OxyCRG and Big Fort
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 5

24 kinds of ARR events including sinus arrhythmia, various forms of PVCs, VFIB, VTAC, AFIB, Asystole
Specification
ECG

Input
3/5 wire ECG cable
Lead section
I II III aVR, aVL, aVF, V
Gain selection
*0.25, *0.5, *1, *1.2
Sweep speed
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range
15-30bpm
Calibration
±1mv
Accuracy
±1bpm or ±1% (select the bigger data)
NIBP

Test method
Oscillometer
Philosophy
Adult, Pediatric and Neonate
Measurement type
Systolic Diastolic Mean
Measurement parameter
Automatic, Continuous measurement
Measurement method Manual
mmHg or ±2%
SPO2

Display Type
Waveform, Data
Measurement range
0-100%
Accuracy
±3% (between 70%-100%)
Pulse rate range
20-300bpm
Accuracy
±1bpm or ±2% (select the bigger data)
Resolution
1bpm
2-Temperature (Rectal & Surface)

Number of channels
2 channels
Measurement range
0-50℃
Accuracy
±0.2℃
Display
T1, T2, ☒T
Unit
ºC/ºF selection
Refresh cycle
1s-2s
Respiration (Impedance & Nasal Tube)

Measurement type
0-150rpm
Accuracy
±1bm or ±5%, select the bigger data
Resolution
1rpm
Packing Information

Packing size
34*34*28cm
N.W.
5kg
G.W.
6kg
Optional Parts
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 6
EtCO2
◆ETCO2 is the amount of carbon dioxide (CO2) in exhaled air, which assesses ventilation.
◆A high ETCO2 is a good sign of good ventilation, while low ETCO2 is bad sign that represents hypoventilation.
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 7
2IBP
With Template self-adapting technique, which ensure the accuracy in complicated clinic conditions. Solve the problem that NIBP of most brand patient monitor cannot measure stably and accurate when patients have arrhythmia and rapid changing pulse. The anocelia and intracranial will be monitored at same time.
Packing & Delivery
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 8
12.1 inch medical wireless multi-parameters vital signs monitor newtech criticare capnography patient monitor for hospit 9
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.Can the accessories be exchanged between both Aurora and Aurora S series?
Yes, it is possible to use the same accessories across both Aurora and Aurora S.

2. Can the monitors display wave-forms and numerical data?

Yes, both monitors of Aurora and Aurora S can display wave-forms and numerical data.

3. How many waveforms can be displayed on the screen?

The screen can display up to a maximum of 8 wave-forms.

4. Are the batteries a cost option?

No, the battery is included in the basic price of the system.

5. What types of batteries are used?

Both systems use a high capacity built-in rechargeable lithium battery.

6.Can the monitors connect to printer?

Aurora series cannot connect to printer, and Aurora S series can connect to printer.

7. Can the monitors support Wifi?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

8. Which kind of options parts can you offer?

We can offer touch screen, IBP, 2IBP, EtcO2, Printer, wall mount and trolley.
