China CE Cheap Hemodialysis Machine/dialyzer price For Sale HM09

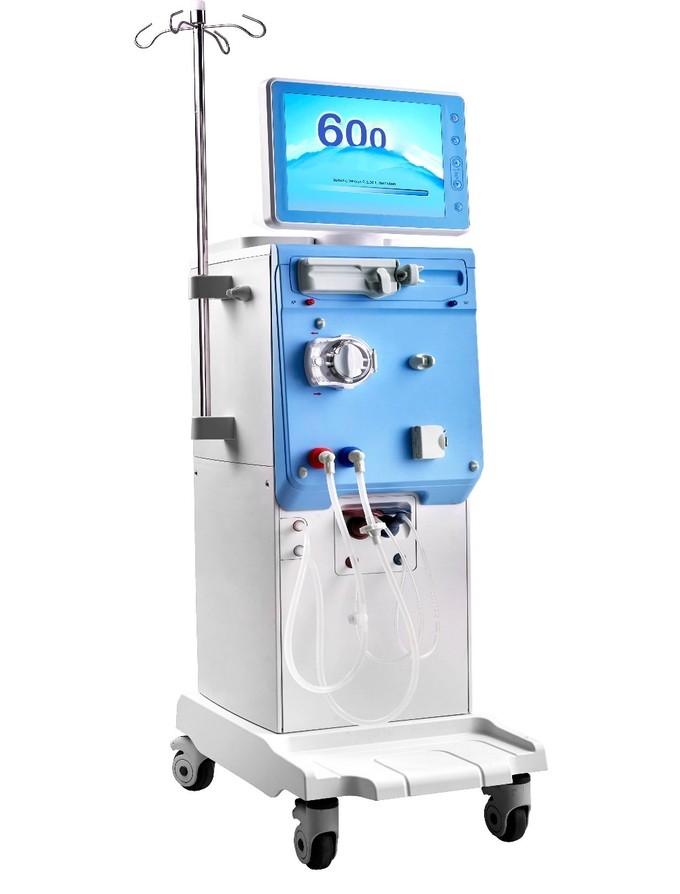

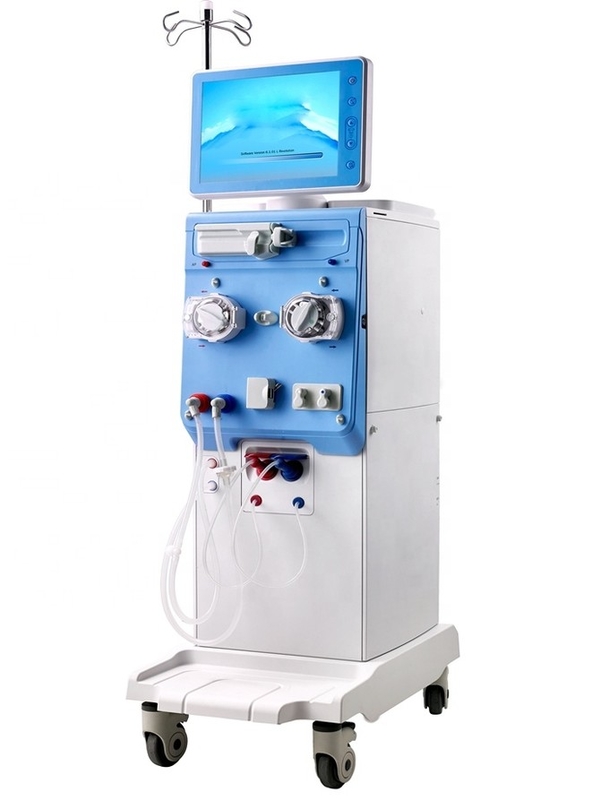

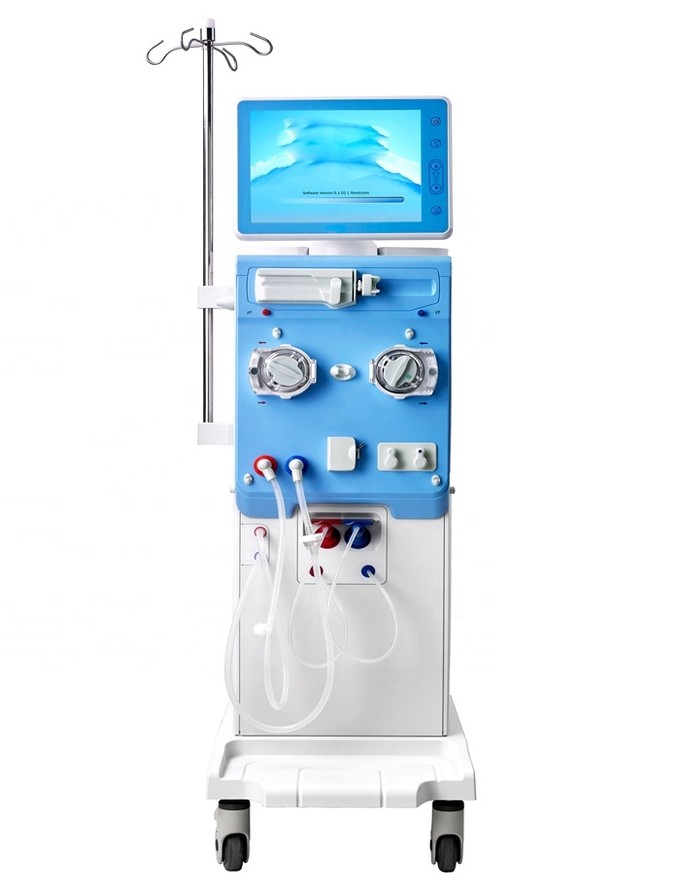

Name: 15 Inch LCD+Touch Screen Hemodialysis Machine

Model: HM09

CE Approved

Functions:

MSLHM090 Hemodialysis equipment is applied to HD, HF-online, HDF-online, IUF, Low flux continuous dialysis, HP, Plasma exchange, Plasma adsorption etc.

Intelligent Operation:
15 Inch LCD+Touch screen with multi-angle rotation, Chinese,English French,Spanish,Russian etc, multi-language interface enables the operation much more convenient.

Guided:
Operation interface make the operation much more convenient. Self-test interface
Treatment interface Disinfection interface
●Daily automatic power on-off time and disinfection modes can be preset,all disinfection condition can be recorded.
●Automatic venous level detector, can avoid the blood exposed to air, so that the contamination can be reduced.
●KT/V calculation evaluates the sufficiency of dialysis.
●Substitution automatic rinsing, decrease the workload of the hospital staff and reduce the cost.
●Automatic dialyzer charging and discharging.
●Treatment parameter, patient information and running states can be recorded, the history information can be read in real time.
●Intelligent maintenance system enables the maintenance more convenient.

Safety Treatment:
●The blood, hydraulic and monitor system can be controlled individually, each of them has the security monitoring and protection measure, so that ensures the patients'safety.
●More than ten mandatory testing items, such as the balance system, mixing system, UF system, air detector, blood leakage monitor, filter etc ensure the safety and reliability of machine.
●Hydraulic system and leakage monitor system can ensures safety of the dehydration.
●Ultrasonic and optical monitor on venous ensures safety of blood return.
●Red, yellow, Green LED with various music alarm, ensures user-friendly.
●Back–up power can supply 40 mins after electricity off.
●Monitoring system of AP, VP and TMP enables abnormal alarms more quickly.
●Double-stage endotoxin filtration (HDF-online), ensures the substitution fluid meets AAMI standards.
●The advanced volume balance control system enables accurate control of UF.
●Dialysate mixing system enables ionic concentration of dialysate much more accurate.

Air Detector:
The integration design of air detector,venous bubble catcher and blood recognition can detect the tiny bubbles,ensures the safety and convenience of machine.

Bicart:
Avoid microbial contamination of B fluid.

Powerful Function:
10ml, 20ml, 30ml and 50ml, syringes are available, the type of syringe can be checked automatically, and it has perfect self-test and alarm system, and supports heparin profile.

The heart rate and blood pressure of patients can be detected and recorded automatically during the dialysis, ensures the safety of treatment, reduce the hospital staff workload.

● Ultra-pure dialysate supply, improve the patients' life quality.
● Isolated HP mode, decrease the self-test time and dialysate waste.
● Preset a variety of standard dialysate formula, and also the formula can be customized for different needs, the formulas are suitable for all brands of solution or dialysis power.
● The bicarbonate and acetate dialysis adapt to various treatment needs.
● Single/double needle dialysis are suitable for more clinic selection.
● The standard profile of variety of sodium, UF rate, bicarbonate, heparin flow, dialysate flow, dialysate temperature, and custom profile can offer personal treatment.
● Convenient process for sequential dialysis(dialysis←→IUF), high–low sodium sequential dialysis.
● The network USB can realize information management of the patients and equipment.
The function of central dialysate supply can realize the automatic connection with concentration supply.

Technical Data:
Dimensions and Weight
● Dimensions(mm): 1460×490×715
● Weight:85kg

Work condition and connector:
●Power Supply: AC100~240V,47~63Hz
●Water Temperature:5~35℃
●Water Pressure:0~8.0bar
●Connector: Ethernet,RS232/RS485,USB

Blood and Substitution:
●Blood Flow:0~700ml/min, Accuracy:±10ml/min
●Substitution Flow: 0~650ml/min, Accuracy:±10ml/min
●Substitution Flow Range:0~39L/h(HDF-online)
:0~6L/h(HDF- bibag)

Dialysate:
●Dialysate Flow:0,100ml/min~1000ml/min,±5%
●Dialysate Temperature: 33℃~40℃, Accuracy:±0.5℃
●Dialysate conductivity:12.0mS/cm~18.0mS/cm

Accuracy:±0.1mS/cm

Monitor system:
●VP:-700mmHg~ +800mmhg, Accuracy:±5mmHg
●AP:-700mmHg~+800mmHg ,Accuracy:±5mmHg
●TMP: -700mmHg~+800mmHg, Accuracy:±5mmHg
●Blood Leakage Monitor: detecting blood leak ≥ 0.35mL/min(HCT 32%)
●Air Detector: detecting ≥ 0.02ml bubbles or ≥ 0.0003ml continuous tiny bubbles
●Blood Detect: optical test

Clean and Disinfection:
●Decalcification:rinse,citrate sodium or glacial acetic acid
●Thermal Didinfection:hot water or citrate sodium(≥ 93℃)
●Chemical Disinfection:sodium hypochlorite or peracetic acid

Dehydration Control:
●Dehydration Speed:0~6000ml/h,Accuracy:±30ml/h
●Dehydration Range:0~99L

Heparin Pump:
●Heparin Pump Flow:0~10ml/h
●Syringe Size:10ml,20ml,30ml,50ml
●Rapid Injection Rate:10~1800ml/h

Non-invasive Sphygmomanometer:
●Blood Pressure:0mmHg~300mmHg
●Resolution:1mmHg
●To Ensure Measurement Accuracy of Blood Pressure(adult):40mmHg~245mmHg
●Adult Pulse Monitoring:30bpm~220bpm
●Monitoring Error:±3bpm or reading±2%
