Class I Hospital Emergency Equipment Ceiling Operating Lamp 80000Lux 160000 lux
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1pc | Price : | $6,999.00 - $7,999.00/Sets |
|---|---|---|---|
| Packaging Details : | Standard export package | Delivery Time : | about 10 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 1000pcs/month |
| Place of Origin: | China | Brand Name: | SUCE |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | RP01 |
|
Detail Information |
|||
| Instrument Classification: | Class I | Warranty: | 2 Years |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Item: | Rf Generator Pain Therapy Device |
| RF Generator Main Unit: | Simulator And Impedance Monitor, Continuous RF Mode, Pulsed RF Mode | TC Electrode Monopolar Cable: | 2.5m |
| Impedance Monitor Measuring Ange: | 0-1999Ω | Power Cord: | AC220V/10A Length: 2m |
| Autoclave Plastic Sterilization Box: | L254*W160*H20mm | Net Weight: | 4kgs |
| Pulsed Widths Control Mode: | 3ms-40ms | Rated Line Power: | 120W |
| Timer Range: | 0-10mins | ||
Product Description
*Thermal RF Mode: standard, step
* Pulsed RF Mode: voltage control, temperature control, width control
* Automatical Intelligent control technology
* Friendly user interface,easy to operate
* Full digital with TFT LCD touch screen
* Compact and easy to move with handle
|
Impedance Monitor
|
|
|
|
Measuring range
|
0-1999Ω
|
|
|
Simulation
|
|
|
|
Output mode
|
Constant voltage/constant current
|
|
|
Stimulation frequency
|
1-200Hz
|
|
|
Pulse duration
|
0.1ms-3ms
|
|
|
Constant voltage
|
0-10v
|
|
|
Constant current
|
0-8mA
|
|
|
Waveform
|
uni-phasic rectangular pulses
|
|
|
Thermal RF
|
|
|
|
Control mode
|
standard/step
|
|
|
Time range
|
0-10min
|
|
|
Temperature range
|
30℃-95℃
|
|
|
Rate RF power
|
50w
|
|
|
Pulsed RF
|
|
|
|
Control mode
|
temperature/voltage/pulsed width
|
|
|
Time range
|
0-30min
|
|
|
Frequency range
|
1Hz-10Hz
|
|
|
Temperature control mode
|
30℃-95℃
|
|
|
Voltagecontrol mode
|
20Vrms-70Vrms
|
|
|
Pulsed widths control mode
|
3ms-40ms
|
|
|
Mains Data
|
|
|
|
Power supply
|
AC110-230V/46-60Hz
|
|
|
Rated line power
|
120w
|
|
|
Standby line power
|
15w
|
|
|
Net weight
|
4kgs
|
|
|
Dimensions
|
325mm(w)*225mm(H)*160mm(D)
|
|
|

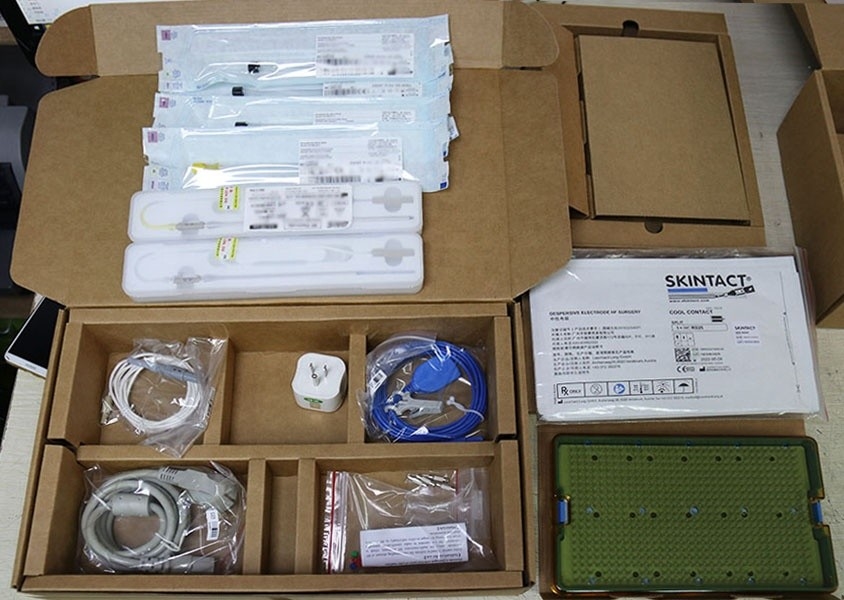

Item name
|
Description
|
|
RF Generator main unit
|
Simulator and impedance monitor, Continuous RF mode, Pulsed RF mode
|
|
TC Electrode Monopolar Cable
|
Length: 2.5m
|
|
Neutral Plate Connecting Cable
|
Length: 3m
|
|
Power Cord
|
AC220V/10A Length: 2m
|
|
Autoclave Plastic Sterilization Box
|
L254*W160*H20mm
|
|
TC Test Plug/ BR3001
|
|
|
100mm TC Straight Electrode
|
OD=0.4mm, L=100mm
|
|
150mm TC Straight Electrode
|
OD=0.5mm, L=150mm
|
|
Disposable RF Cannula/ CC2225
1 pu=10 pcs |
22G×100×5, OD=0.7mm, L=100mm, tip=5mm
|
|
Disposable RF Cannula/ CC2335
1 pu=10 pcs |
20G×150×5, OD=0.9mm, L=150mm, Tip=5mm.
|
|
Disposable Patient Neutral Plate/ AP0010
|
1 pu=10 pcs
|
