Negative pressure filtration system biological isolation chamber

Minimum Order Quantity :	1pc	Price :	$1,999.00 - $2,999.00/Sets
Packaging Details :	Standard export package	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	1000pcs/month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	OEM

Detail Information
Type:	First-Aid Devices	Instrument Classification:	Class II
Warranty:	1 Year	After-sale Service:	Online Technical Support
Item:	Biological Isolation Chamber	Unfolded Size(LWH):	1900x680x500mm
HEPA Filter:	3pcs, 99.999% Efficiency For 0.3μm Particles	Ventilation:	>50L/min
Chamber Noise:	<65dB(A)	Alarm:	Audio And Visual Alarm
Negative Pressure:	≥15Pa In Two Minutes After Power On	Consumables:	HEPA Filter (3pcs/set), PE Gloves
Optional:	Folding Stretcher; Stretcher Trolley	Load-bearing:	Up To 150kg

Product Description

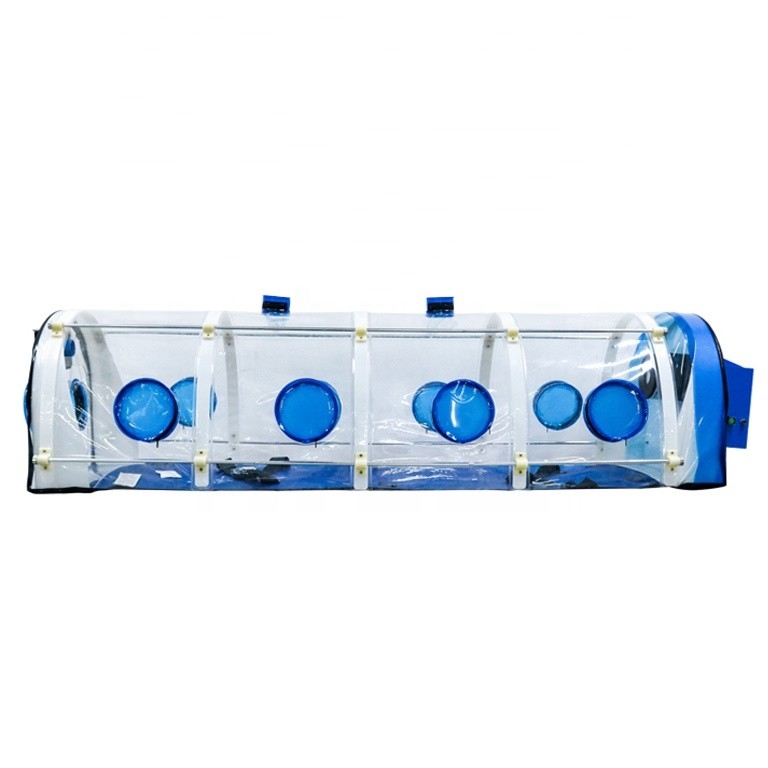

Negative pressure filtration system biological isolation chamber

The specification of Negative pressure filtration system biological isolation chamber

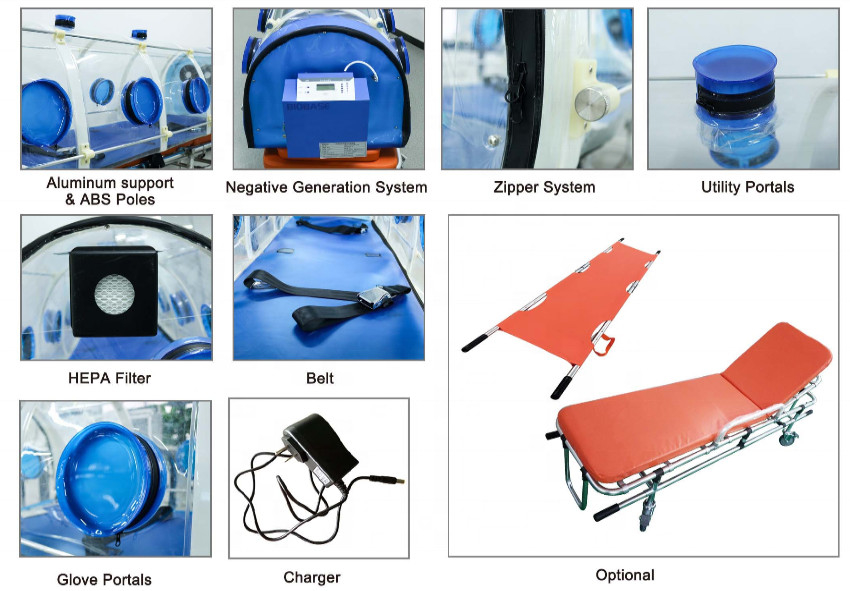

1. The chamber liner is made from a special TPU film and strengthened by inserting ABS poles along each side of the structure.

2. The "all around" zipper system allows for the chamber to open completely in order for easy operation.

3. The chamber has 10 integrated glove portals on three sides to allow for easy access to the patient and 2 utility portals used for insusions and other medical equipments.

4. Belt system enables the patient to be fastened while in the chamber or the chamber is securely fastened to a stretcher or bed.

5. Isolation chamber is full collapsible unit that requires minimal storage space and is ready for use within minutes.

6. The chamber can be used with a folding stretcher or stretcher trolley, which will be easy to move the patient.

Technical Parameters

The specification of Negative pressure filtration system biological isolation chamber

*Unfolded Size(LWH)*	1900×680×500mm
HEPA Filter	3pcs, 99.999% efficiency for0.3μm particles
Ventilation	＞50L/min
Chamber Noise	＜65dB(A)
Alarm	Audio and visual alarm for internal pressure insufficient and low power
Negative pressure	≥15Pa in two minutes after power on
Standard accessory	The main chamber, 3pcs disposable HEPA filter, Negative generation system, 5 pairs PE gloves, Battery and charger,8 long aluminum rods, 4 short aluminun rods, 8 knurled
Consumables	HEPA filter (3pcs/set), PE gloves
Optional	Folding stretcher; Stretcher trolley
Load-bearing	Up to 150kg
Power Supply	DC12V power adapter Battery charging for 6 hours and continuously using for 4 hours
*Package Size (LWH)*	680880840mm
Net Weight	20kg
Gross Weight	46kg
