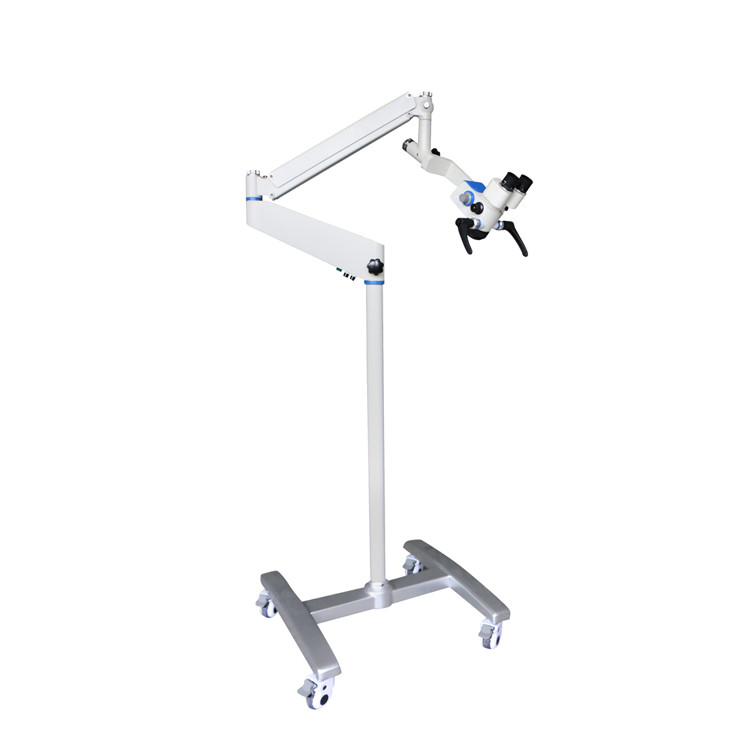

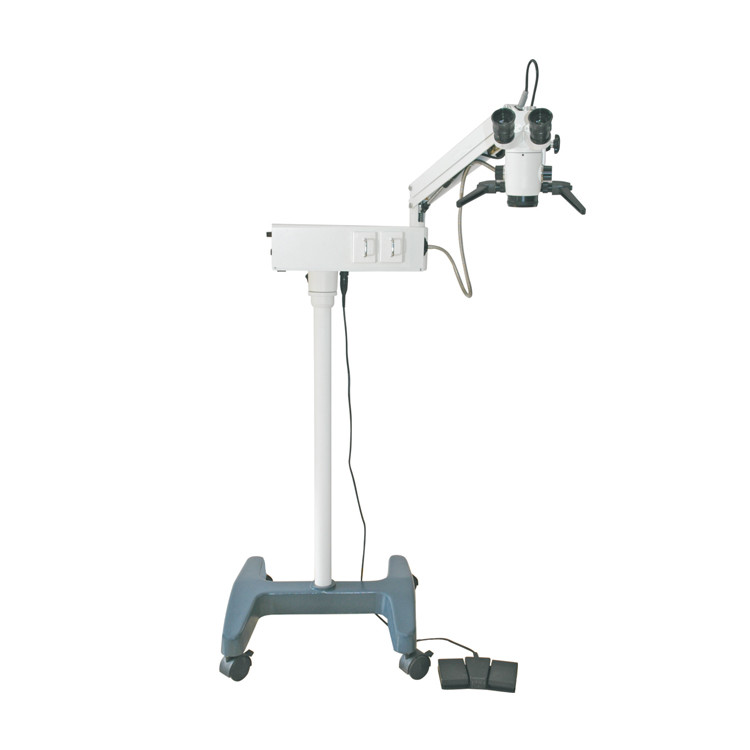

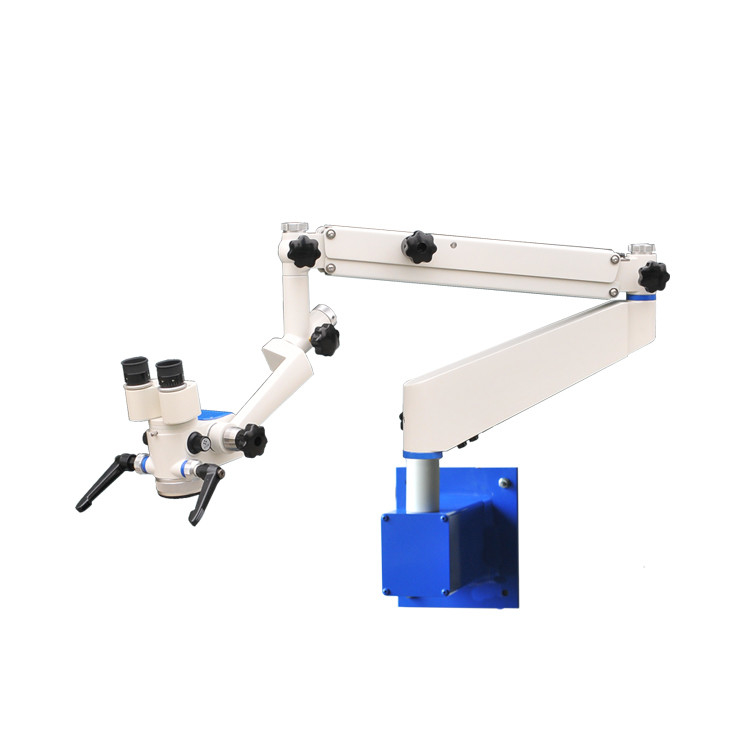

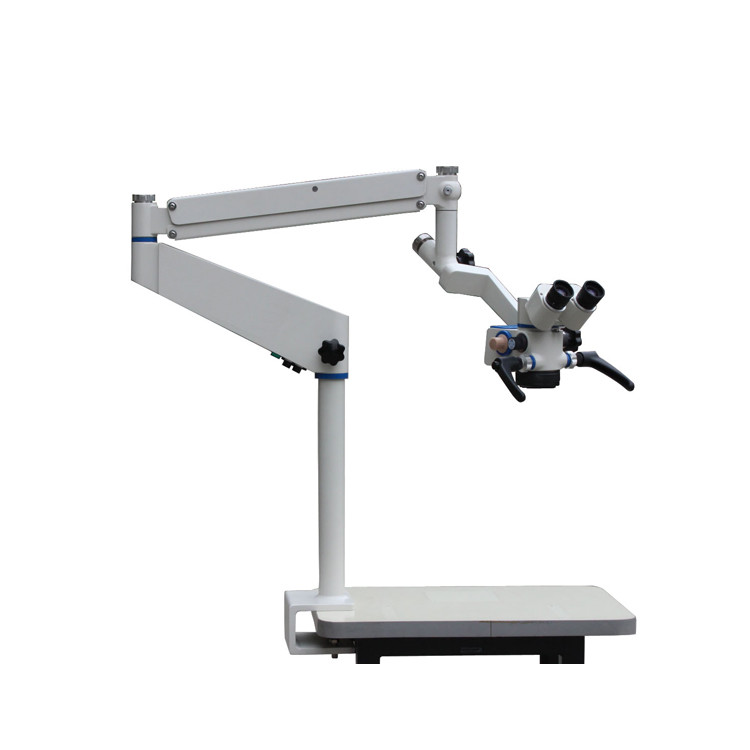

Factory price for the hot selling wall mounted mulitiple operation microscope
Factory price for the hot selling wall mounted mulitiple operation microscope Factory price for the hot selling wall mounted mulitiple operation microscope Factory price for the hot selling wall mounted mulitiple operation microscope Factory price for the hot selling wall mounted mulitiple operation microscope
Contact Now

Factory price for the hot selling wall mounted mulitiple operation microscope

Minimum Order Quantity : 1pc Price : $2,299-2,599/pc
Packaging Details : standard export package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000pcs/month
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: OEM

Detail Information
Theory: Fluorescence Microscope Drawtube: BINOCULAR
Eyepieces: Magnification 12.5x, Pupil Distance Adjustable Range 55mm~75mm Binocular Tube: High Brightness 45°binocular Tube
Magnification: Manual 3-step Changer Illumination: LED Lamp(40V 40W), Brightness Adjustable Infinitely
Illumination Nonuniformity: < 20% Objectives: F300mm(175mm,200mm,250mm,300mm,350mm,400mm Etc )
Focusing: Route Range + -15mm. Maximum Rotating Angle: 360°
Adjustable Angle Of Cantilever: -30°~+30°, Equivalent To Range Up-down: 0.6m Maximum Length Of Arm: 1100mm

Product Description

Product Description

wall mounted mulitiple operation microscope



Characteristics:

·All the lenses are multi-coated,mildewproof and anti-reflective.

·Optional objectives: f250/f300/f350f/f400.

·Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements.




Factory price for the hot selling wall mounted mulitiple operation microscope 0





Specification
Eyepiece Magnification
12.5×
Objective Lens
f=200
Working Distance
190mm
Magnifications for Main Microscope
5.3×,8×,12×
Diameter of Field
37mm,25mm,16.7mm
Adjustable Diopter
±7D
Adjustable Range of Pupil Distance
50mm~80mm
Maximal Resolution
100LP/mm
Illumination Source
12V/100W,medical cold reflection halogen lamp
Illumination Type
6°+0°Coaxial cold light source illumination
Coaxial Illumination
≥30000lx
Reaching Radius of Arm
870mm
Adjustable Vertical Range
700mm~1100mm
Fine Focusing Range
30mm
Voltage
AC220V V / 50Hz1Hz,AC110VV /60Hz1Hz
Power
120VA
Fuse
AC250V T1.25A ,AC125V T2.5A
Electrical Safety Standard
Executive Standard: GB9706.1-2007,type I
Packing Volume
0.2m3,1carton

Optional Accessories:

·10X Eyepiece.

·Table installation parts(holding stand,.split column)

·Video devices(1/2″or 1/4″CCD Camera,CCD Adapter,Beam Splitter and Connecting Cable).

·Straight Binocular,Universal Joint(for ENT).

·Magnifications and filed for optional objective lens:



Big Objective Lens f250mm f300mm f350mm f400mm



Factory price for the hot selling wall mounted mulitiple operation microscope 1
size
1350mm×600mm×1600mm
Factory price for the hot selling wall mounted mulitiple operation microscope 2
Factory price for the hot selling wall mounted mulitiple operation microscope 3
Factory price for the hot selling wall mounted mulitiple operation microscope 4
Factory price for the hot selling wall mounted mulitiple operation microscope 5
