2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner

Contact Now

2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner

Minimum Order Quantity :	1pc	Price :	$1,999.00 - $2,500.00/Units
Packaging Details :	Standard export package	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	10000 Set/Month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	OEM

Detail Information
Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Acrylic
Shelf Life:	2 Years	Quality Certification:	Ce
Instrument Classification:	Class II	Safety Standard:	GB15979-2002
Product Name:	Ophthalmic Ultrasound	LCD Screen:	5.7 Inch
Menu Operation Language:	Chinese/English	Double Probe Sockets:	Yes
Display Mode:	B, B/B, 4B, B/A, A	Gains Range:	0--120dB
Dynamic Range:	30-100dB, Visual And Adjustable	Gray:	256
Intelligent TGC Adjustment:	8 Segments	Build-in D Disk:	4GB

Product Description

A scan B scan ophthalmic ultrasound scanner

It is a portable full digital A/P mode ultrasonic measuring instrument, which is composed of main unit, probe and so on. A-scan is suitable for measuring the anterior chamber depth, lens thickness, vitreous body length, axial length and calculating the IOL power for an implanted lens; P-scan is suitable for measuring the corneal thickness.
The expected service life of ophthalmological ultrasonic measuring instruments is 10 years. Applied part is ultrasonic probe.
Aprovides A-scan probe, it is used to measure axial length.

provides A-scan probe and P-scan probe, which is used to measure axial length and corneal thickness.

Technical Overview	A scan
Resolution	0.01mm
Gain adjustable	0-120dB
Measurement range	2-43mm(1640m/s
Accuracy	±0.02mm
Measuring parameter	ACD, LENS, body Length, axial length.
Eye mode	normal/aphakia/dense cataract/PMMA
Measuring Mode	Contact and Immersion, automatic and manual

Technical Overview	Bscan
Scan mode	High accuracy stepping motor drive sector scan
Scan Angle	53°
Display Depth	0～56mm
Gray	256
Frame frequency	10frames/s
Frame correlation	4
Compression Curve	4
Post-processing	8

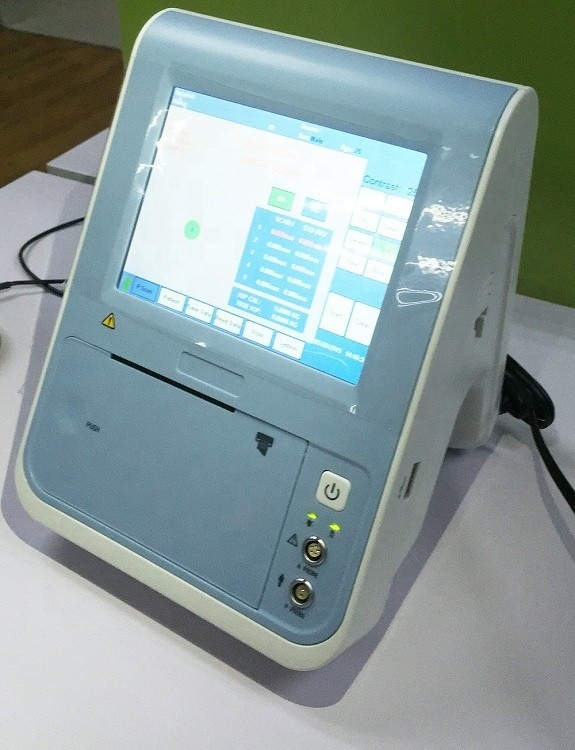

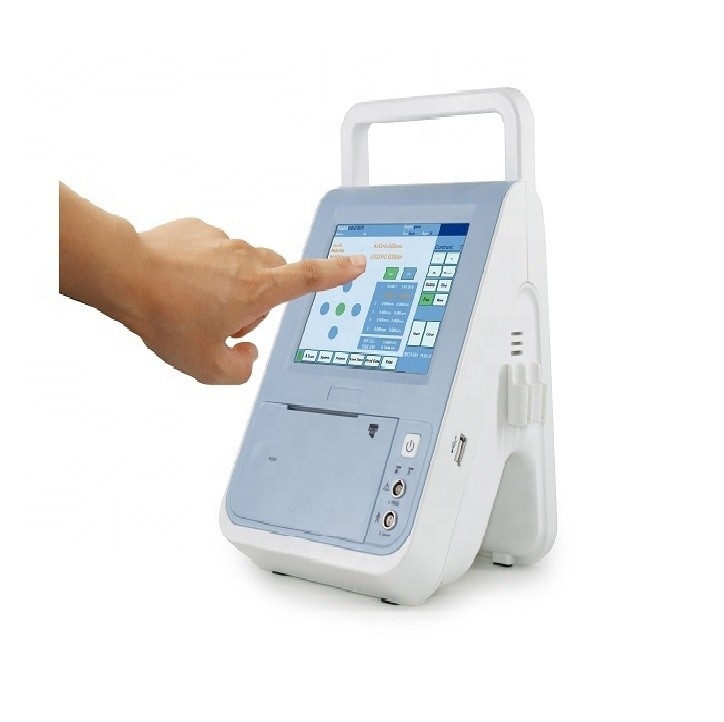

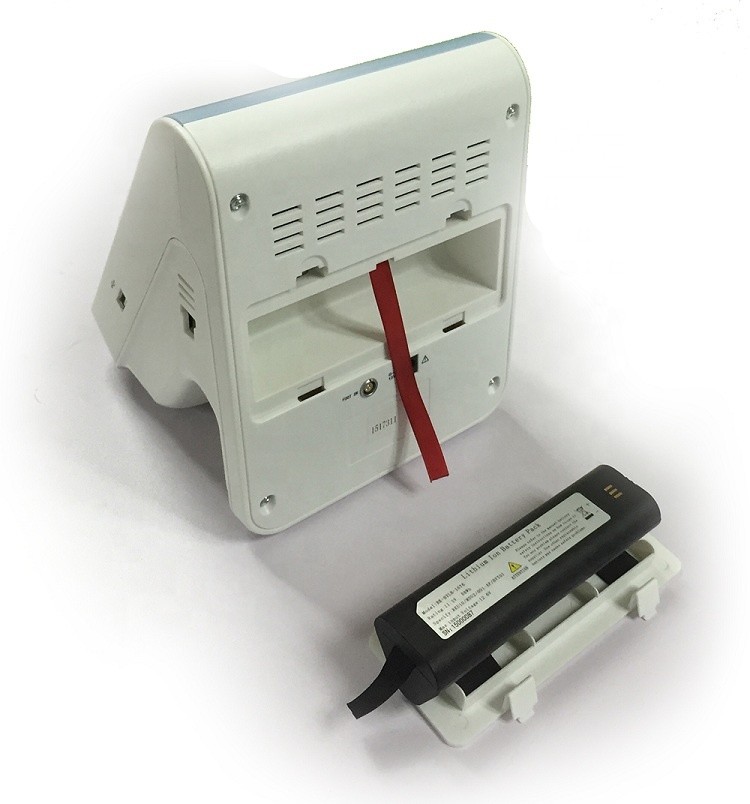

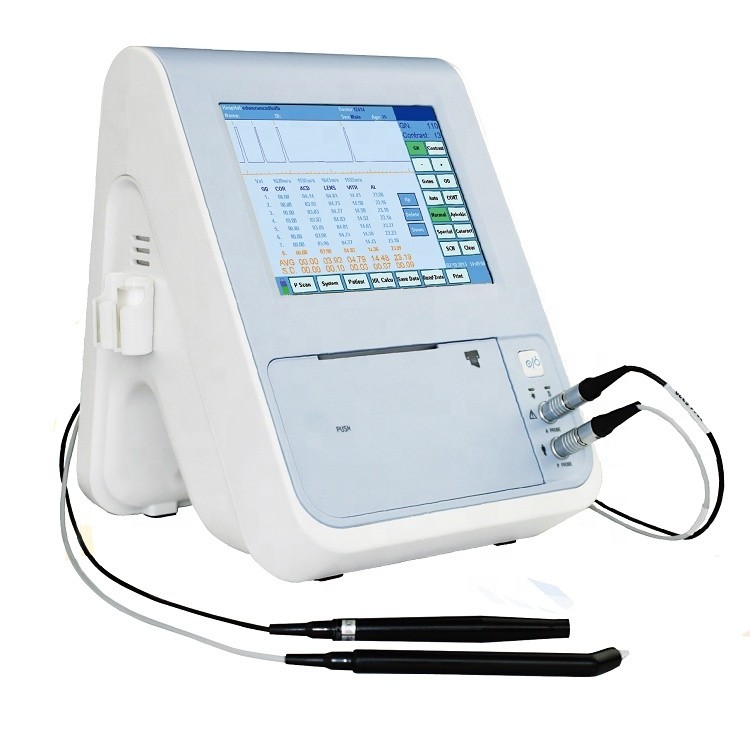

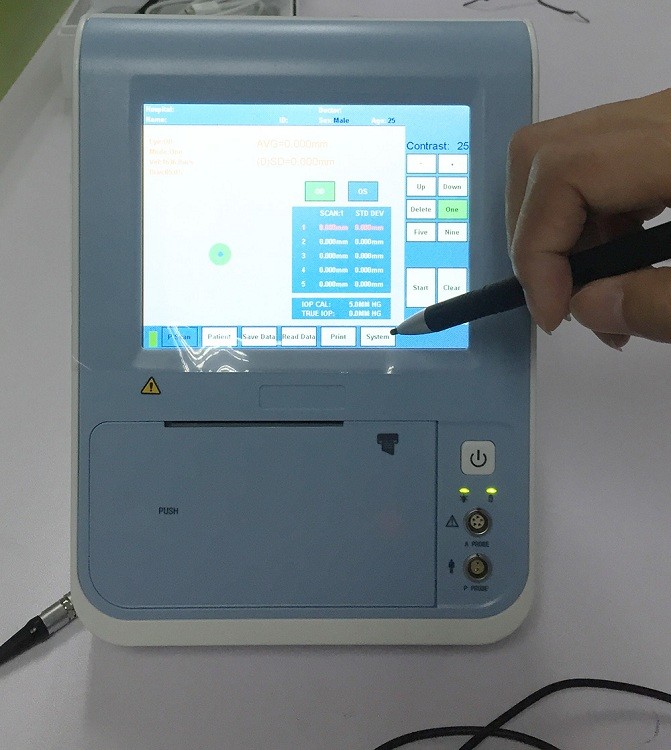

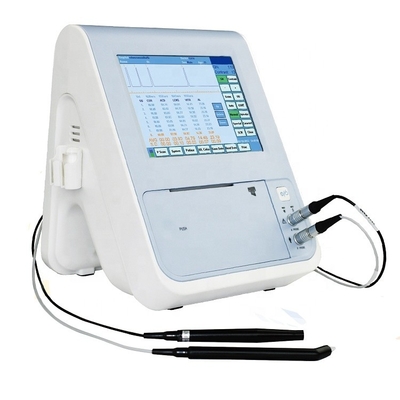

Detailed Image

Specification
Technical Data
1. 1. Monitor: 7” LED
2. Adapter rating: 100-240V~,1.2-0.6A,50-60Hz
3. Output of adapter: DC12.8V 3.0A
4. Main device rating: DC12V 3.0A
5. Main Unit Size: approx. 200 * 168 * 165 (mm, L* W * H)
6. 6. Weight of main unit: approx. 7kg (excluding accessories)
