Class I Hospital Emergency Equipment Ceiling Operating Lamp 80000Lux 160000 lux
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1PC | Price : | $29,999.00 - $35,999.00/Sets |
|---|---|---|---|
| Packaging Details : | standard exporting package | Delivery Time : | about 10 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 1000set/month |
| Place of Origin: | China | Brand Name: | SUCE |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | OEM |
|
Detail Information |
|||

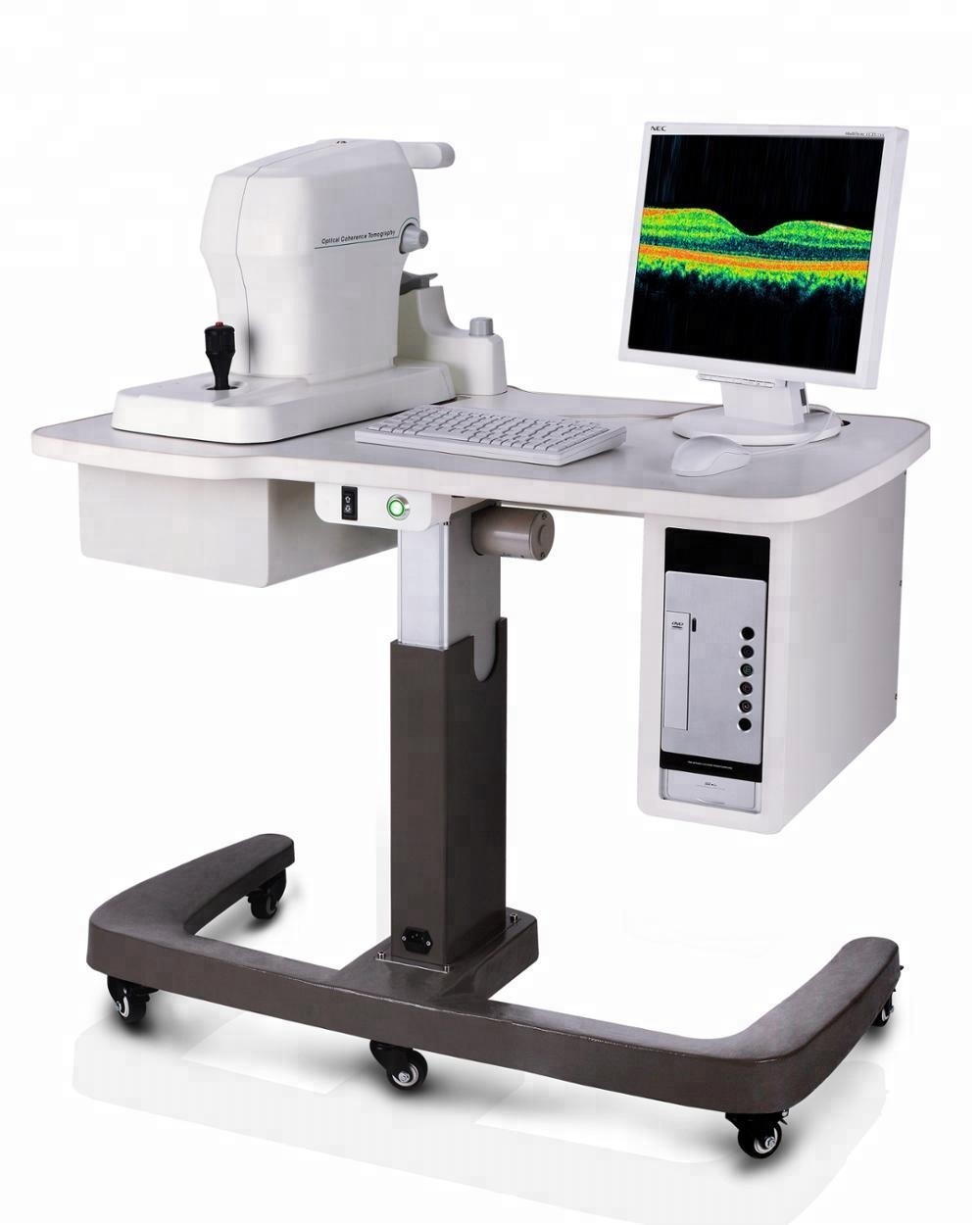

| Instrument Classification: | Class III | Item: | Optical Coherence Tomography (OCT) |
|---|---|---|---|
| Model: | MSLOCT01 | Purpose: | Cross-sectional Imaging Of The Retina |
| Signal Type: | Photon Scattered From Tissues | Light Source: | Super Luminescent LED, 840nm |
| Optical Power: | ≤0.75mW(on The Cornea) | Axial Resolution: | 5μm (in Tissue) |
| Lateral Resolution: | 10μm (in Tissue) | Scanner: | Galvanometer Mirror |
| Scan Modes: | 29,000A-scans Per Second | ||
Product Description
|

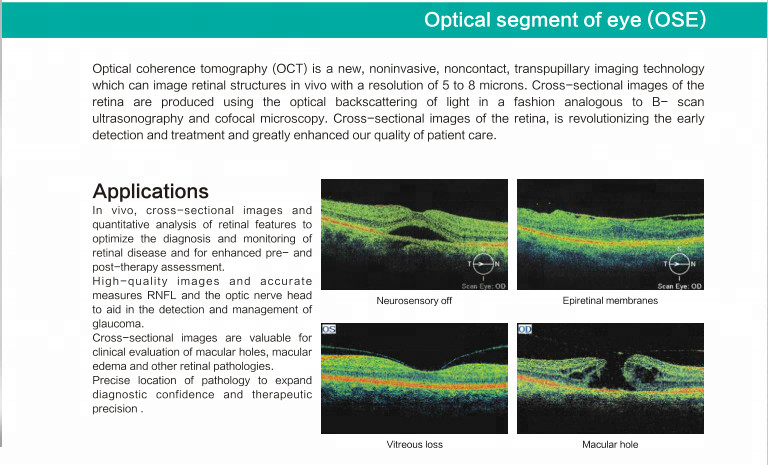

Tomographic Imaging
|
|
|
|
Purpose:
|
Cross-sectional imaging of the retina.
|
|
|
Signal Type:
|
Photon scattered from tissues
|
|
|
Light Source:
|
Super luminescent LED, 840nm
|
|
|
Optical Power:
|
≤0.75mW(on the cornea)
|
|
|
Axial Resolution:
|
5μm (in tissue)
|
|
|
Lateral Resolution:
|
10μm (in tissue)
|
|
|
Scanner:
|
Galvanometer mirror
|
|
|
Scan Modes:
|
Posterior segment: Line, annular, cross,six lines, 3D,
Anterior segment: cornea, six lines in cornea, chamber angel scans(only ose-2000AS)
|
|
|
Scan Modes:
|
29,000A-scans per second
|
|
|
Acquisition Time:
|
58pictures per second
|
|
|
Scan Depth:
|
2mm(in tissue)
|
|
|
Fundus Imaging
|
|
|
|
Purpose:
|
Fundus observation and real-time registration
|
|
|
Signal Type:
|
CCD imaging
|
|
|
Field Angle:
|
29°x23°
|
|
|
Viewing Methhod:
|
19-inch color flat panel dispal
|
|
|
Illuminator:
|
LED
|
|
|
Internal Fixation:
|
LED dot matrix
|
|
|
External Fixation:
|
Adiustable blinking LED
|
|
|
Minimum Pupil Diameter:
|
3.5mm
|
|
