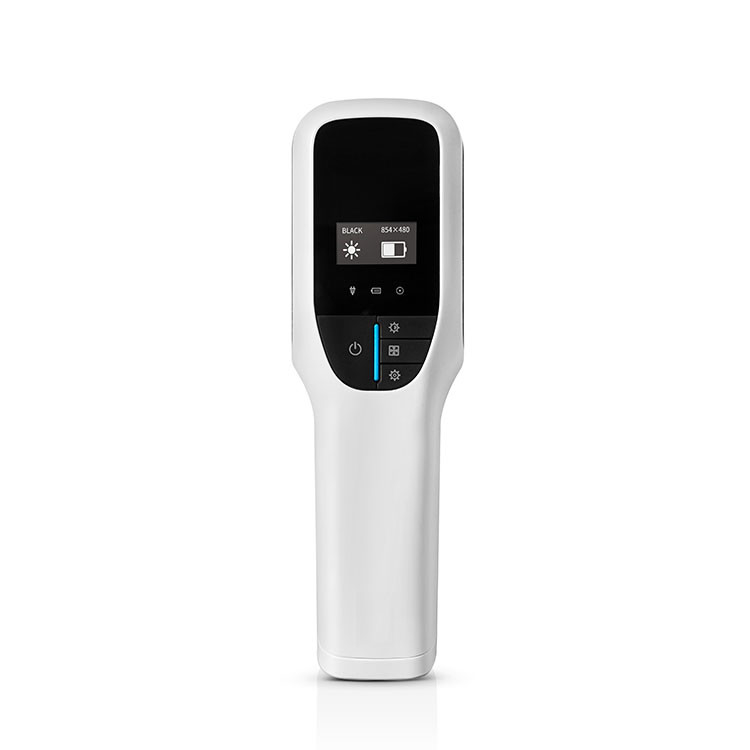

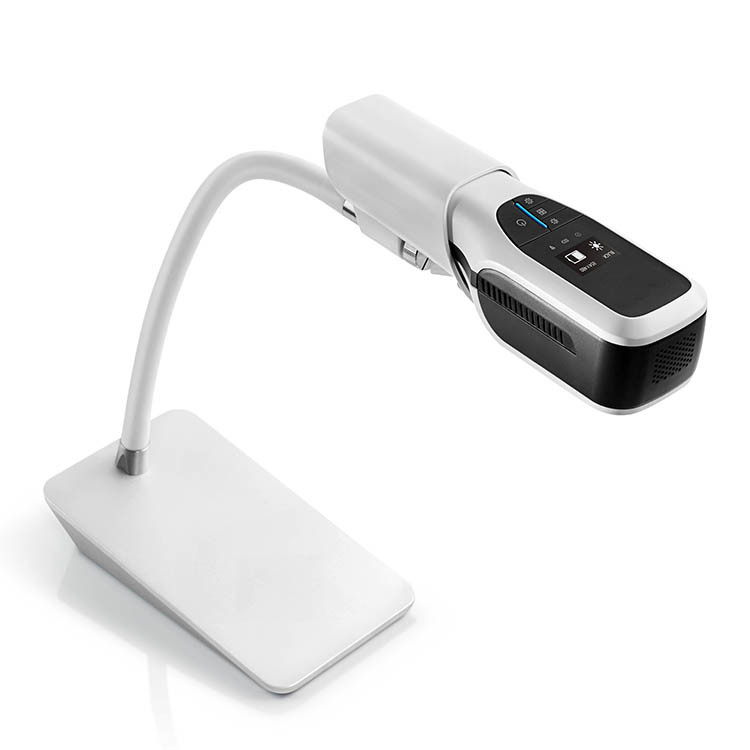

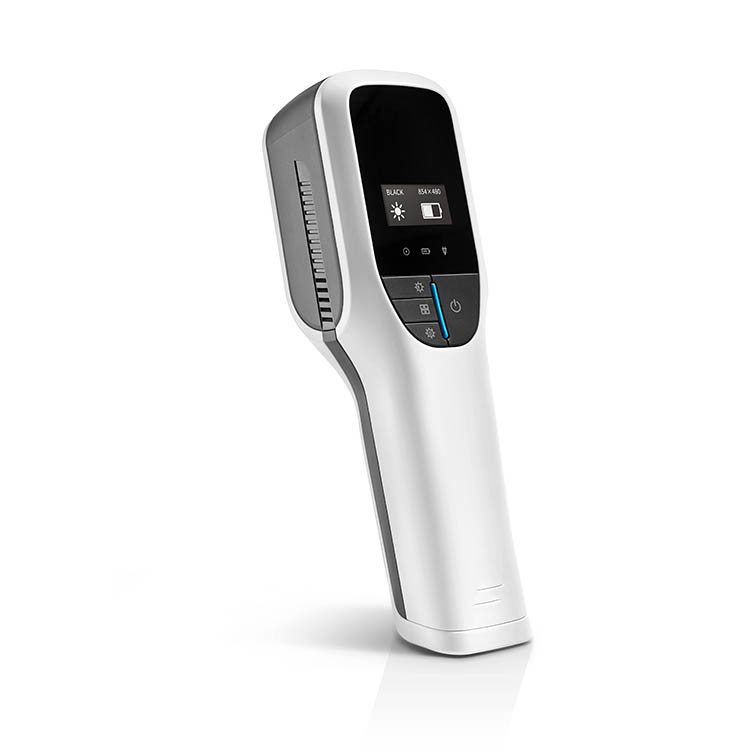

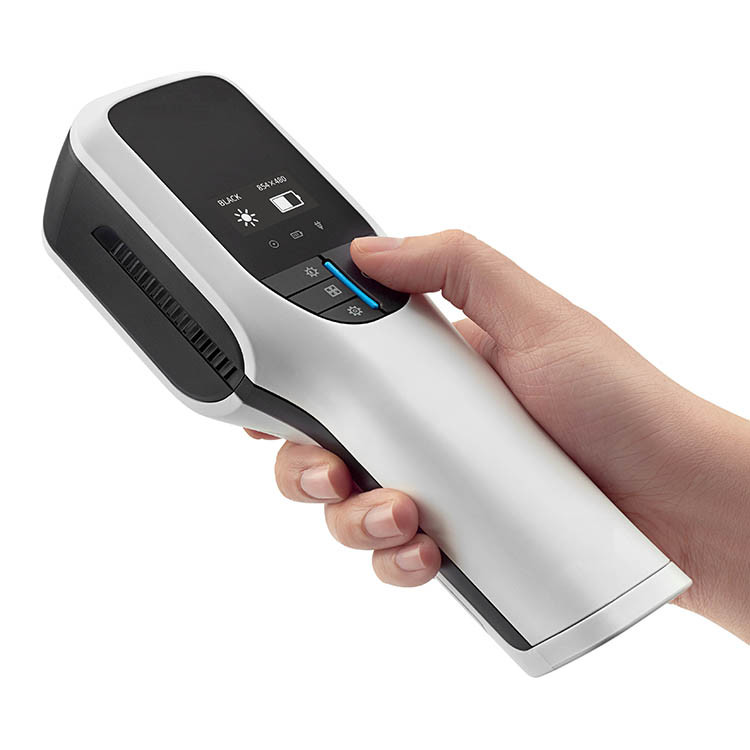

portable vein finder with stand medical infrared vein finder scanner medical vein finder

Name

portable vein finder

Dimensions

224(W)x68(H)x64(D)mm

Weight

About 0.5kg

Power Adapter

Input voltage: AC 100-240V50/60HZ 1.5A

Input power: 45 VA

Output voltage: DC 12V3.5A

Built-in lithium battery: 7.4V, 3000mAh

Continuous operation duration of the lithium battery: not shorter than 2.5 hours

Battery

Time required forfully charging an exhausted lithium battery: not longer than 4 hours Charge mode of the lithium battery: The battery can be charged using a power adapter when AC input is available.

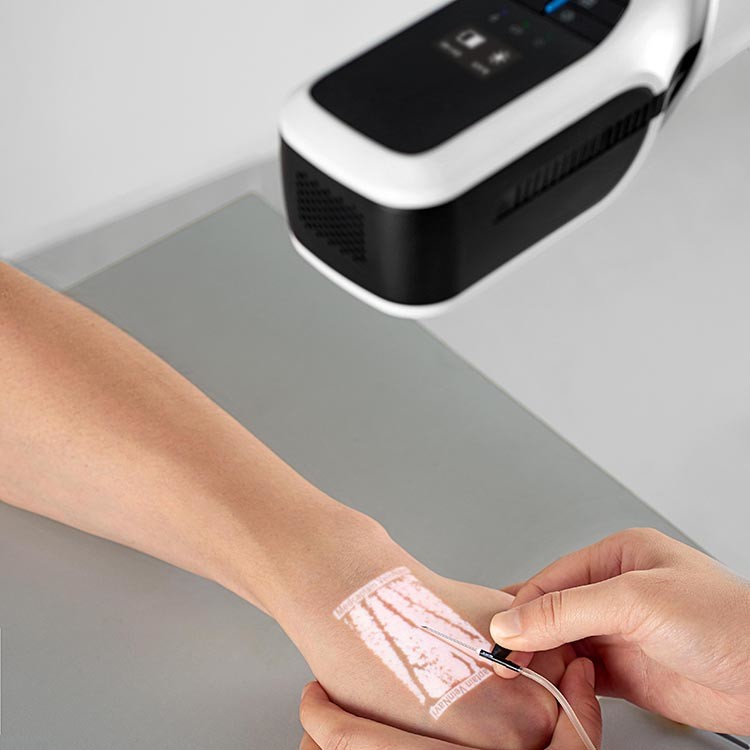

Display Mode

Projection mode

Display Color

White, Red, Green, Blue, Purple, with Inverse mode

Display Window

720*576 pixel

Light Source Type

Near-infrared light

Infrared Wavelength

850nm dual light sources

Optimal Focus Position

210mm±30mm

Depth of Field of Imaging

>30 mm

Infrared Radiation Energy

<0.6mW/m2

Brightness level

4 levels adjustable

Operating Conditions

Temperature: 5°C-40°C

Humidity: 20%-90% RH, non-condensing

Pressure altitude: 70-106.OkPa

Storage and Shipping Conditions

Temperature: -20°C-+55°C

Humidity: 10%-95% RH, non-condensing

Pressure altitude: 61.7~107.4kPa

Classification

Class l/lnternally powered equipment

IPXO

Not sterilized

Not category AP/APG equipment

Mode of operation: continuous

Operation Screen (NAVI-60 only)

Displaying current battery status, color, brightness level and window size
