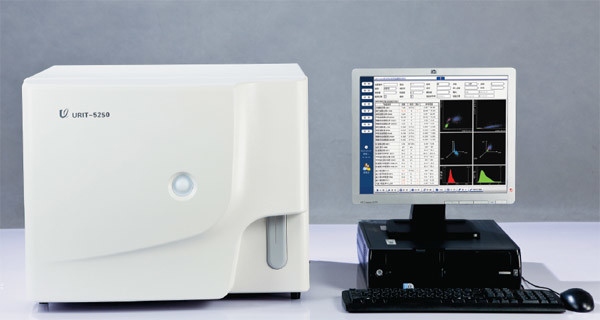

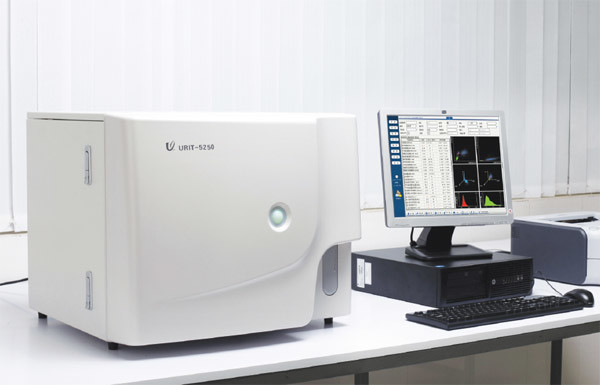

URIT-5250 5-part Hematology Analyzer

Specifications
28 parameters
WBC,LYM%,MON%,NEU%,EOS%,BASO%,LYM#,MON#,NEU#,EOS#,BAS#,RBC,HGB,
HCT,MCV,MCH,MCHC,RDW_CV,RDW_SD,PLT,MPV,PDW,PCT,P_LCR,P_LCC,
RETIC_ABS,RETIC, IRF
2 Histograms for RBC and PLT
2 Scatter grams: 5-part differential scatter gram
Eosinophils and Moutrophils scatter gram
2 3-D stereograms
Principles of operation
WBC/DIFF: Flow Cytometry, Laser light multi-dimensional cell classification
WBC Analysis: Optical and impedance measurements
RBC/PLT Analysis: Impedance method
HGB test: Cyanide-free reagent colorimetry
Reagent
Diluent, Sheath, Detergent,Lyse
Sampling modes
Whole blood : 20μL
Pre-diluent : 20μL
Aperture Diameter
WBC 100μm,RBC/PLT 68μm
Throughput
Whole blood : up to 60 samples per hour
Pre-diluent : up to 60 samples per hour
Data storage
Up to 200,000 sample results with grams
Alarms
Error messages
Display
PC display (17 inch color TFT)
Dimension
598.5MM(L)×585.5MM(W)×488.5MM(H)
Power
220V,50/60Hz 600VA
Weight
70kg

Laser light multi-dimensional cell classification
Resistant RBC mode
WIC and WOC for WBC counting
Up to 60 samples per hour throughput
WBC 5 part diff with sheath reagent only
Support both whole blood and capillary blood samples
Four reagents for 25 parameters

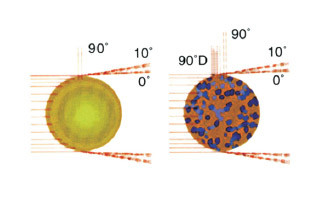

Semi-conductor laser
URIT-5250 Auto Hematology Analyzer uses
semi-conductor laser for the flow cytometry
system. Through calculations of different
angles via laser scatters, the instrument
provides complete analysis including cell size,
granularity and complexity.

One channel give complete
differentiate WBC
URIT-5250 counts lymphocyte, monocyte,
neutrophil, eosinophil and basophil in WOC channel.

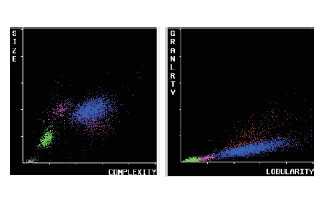

3D sterograms
Not only scatter grams but also 3D stereograms
are provided by Urit-5250 that the WBC
differentiation would be presented on different
views.
