Factory price for the price Rayto chemray-120 Full automatic Chemistry Analyzer with CE

Minimum Order Quantity : 1PC Price : $4,850.00 - $5,000.00/Pieces
Packaging Details : standard exporting package Delivery Time : about 10 days
Supply Ability : 1000 Pieces/Month
Place of Origin: Guangdong, China Brand Name: rayto
Certification: CE,ISO13485 Model Number: chemray-120

Detail Information

Type: Biochemical Analysis System Instrument Classification: Class II
Power Supply: 100-240VAc 50/60 Hz Temperature: 10-35 Degree Centigrade
Humidity: 35-80% Water Consumption: <3L/hour
Dimension LxWxH(mm): 630x480x510 Net Weight: 70KG
Port: FOB Shanghai

Product Description

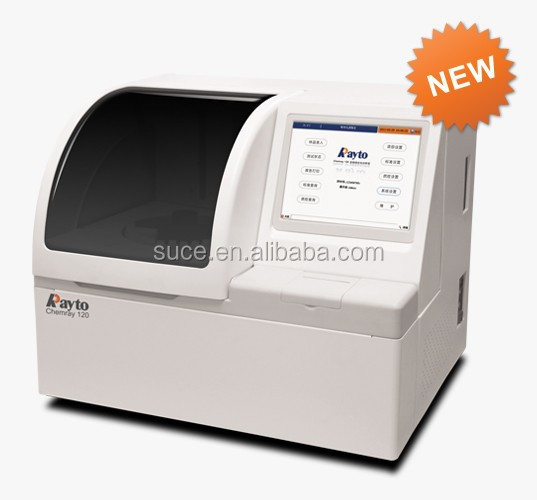

Rayto chemray-120 Full automatic Chemistry Analyzer with CE

Specifications

Chemray 120 Features:
-Automatic, Random Access
-Up to 100 tests per hour
-Reagent pre-heating, liquid level detection
-Labor saving, simple programming and real walk-away operation
-Micro-volume for sample and reagent
-User-friendly software, simplicity and flexibility for operation
-Multi-language software supported
Chemray 120 Automatica Analyzer
Technical Specifications
System Function
.Throughput: up to 100 tests per hour
.Contents of testing: Clinical chemistry, Immunoturbidimetric
.Analytical modes: End-point, Two-point, Kinetic
.Programming: Open system with user defined programs
.Automatic, Random Access
.STAT sample priority
Sample Tray
.Sample position: 9 positions for samples
.Sample volume: 3‘45 pL. 0.1 pL adjustable
.Any position for standard and quality control setting

Reagent Tray
.Reagent position: 26 positions for reagents
.Reagent volume
R1:180,450 pL. 0.1 pL adjustable
R2: 3,450 pL. 0.1 pL adjustable
Reaction Tray
.Reaction positions: 90 cuvettes, 10 cuvettes/strip
.Cuvette: Optical length 5mm
.Reaction volume: 180,500u1
.Reaction temperature: 37℃
Probe
.Pre-heating for reagent
.Collision protection, Liquid level detection and Inventory checking
.Automatic inner and outer probe washing after every cycle
Chemray 120
Probe
.Pre-heating for reagent
.Collision protection, Liquid level detection and Inventory checking
.Automatic inner and outer probe washing after every cycle
Print out
.Built-in thermal printer,external printer optional
Measuring and Optic System
.Lamp: Halogen lamp
.Absorbance range: 0,3.500Abs
.Wavelengths: 8 wavelengths from 320-850nm
.Resolution: 0.0001 ABS
biochemistry analyzer
Working Condition
.Power supply: 100-240 VAc 50/60 Hz
.Temperature: 10·350C
.Humidity: 35,80%
.Water consumption: <3 Uhour
.Dimension LxWxH(mm): 630x480x510
.Net weight: 70 KG
