ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE
ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE
Contact Now

ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE

Minimum Order Quantity : 1PC Price : $5,800.00 - $6,800.00/Pieces
Packaging Details : standard exporting package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Pieces/Month
Place of Origin: Shanghai, China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: ODM-2100S

Detail Information
Type: Ophthalmic A/B Scan/Pachymeter B Scan Probe Frequency:: 10MHz
B Scan Scanning Angle:: 53° B Scan Resolution:: Axial ≤ 0.2mm, Lateral ≤ 0.4mm
B Scan Zoom:: 31mm ~ 63mm, 8 Steps Adjustable A-SCAN Probe Frequency:: 10MHz With Fixation Red Light
A-SCAN Resolution:: 0.01mm A-SCAN Biometry Accuracy:: ≤ ±0.06mm
Weight:: 10Kg Dimension:: 360 X 300 X 260 Mm
Port: Shanghai

Product Description

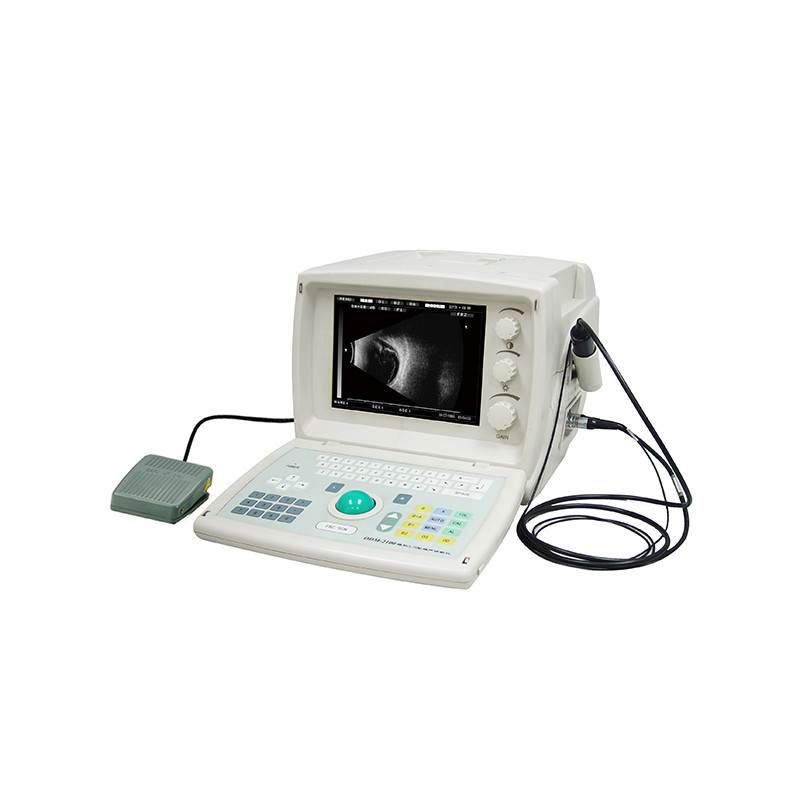

ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE

ODM-2100S Ultrasonic A/B Scanner for Ophthalmology is specially designed for doctors those having a higher demanding with his diagnosis. From the fine image to the possibility of working with PC, each feature gives a feeling of profession. Besides these, you could also make two images the same time for comparing purposes. While working with computer, you may save images, video and diagnostic reports as many as you like into your PC or laptop.

Features

l Imaging Mode: B, B+A, B+B, A
l High Resolution Images
l Memory: up to 4 Images
l Zoom: 8 Steps
l Image Post Processing
l Distance Measurement
l 7” non-interlaced CRT Monitor
l Foldable Keyboard & Portable Design
l Trackball for Easy Measurement and Operation
l Real-time Clock
l Optional Image Output: Video Printer or Workstation



Specifications

B-SCAN
l Probe Frequency: 10MHz
l Scanning Angle: 53°
l Total Gain: ≥98dB, adjustable
l Resolution: axial ≤ 0.2mm, lateral ≤ 0.4mm
l Zoom: 31mm ~ 63mm, 8 steps adjustable
l Post Processing: 4 groups of curves (Linear, Logarithmic, Exponential, S-curves)
l Multi-groups of Electronic Calipers for Distance Measurement
l Various Area Measurement Methods
l Gray Scale: 256 levels



A-SCAN

l Probe: 10MHz with Fixation Red Light
l Resolution: 0.01mm
l Gain: ≥ 98dB with an adjustable range of 0 ~ 59dB
l Biometry Accuracy: ≤ ±0.06mm
l Measuring Range: 16 ~ 39mm
l Measuring Parameters: Anterior Chamber Depth, Lens Thickness, Vitreous Length, Axial Length
l 5 Different Measuring Modes: Automatic (Normal, Dense Cataract, Aphakic and Pseudo-aphakic) &Manual
l 5 Axial Readings
l IOL Formula: SRK/II, SRK-T, BINKHOST-II, HOLLADAY, HOFFER-Q,HAIGIS



Others

l AC 100 ~ 240V, 50/60Hz
l Weight: 10Kg
l Dimension: 360 x 300 x 260 mm
