MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions
MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions
Contact Now

MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions

Minimum Order Quantity : 1 pc Price : $145000-150000/Piece
Packaging Details : carton box Delivery Time : 7 das
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal,Payoneer Supply Ability : 1000 Piece/Pieces per Month
Place of Origin: Tianjin, China Brand Name: MEDA
Certification: ce Model Number: MD-320W

Detail Information
Type: Ophthalmic A/B Scan/Pachymeter Probe Frequency:: 50MH
Resolution: Axial≤0.05mm, Lateral≤ 0.1mm View Ports: 6.7 Mm X5.3 Mm, 13.5mm X10.6 Mm
Scan Angle: 13.5°/27° Variable Delay Depth: 3 ~ 18 Mm, Adjustable By Step Of 1 Mm
Total Gain: 105dB Gray Scale: 256 Levels
Image Formats: JPG, BMP Port: Shanghai

Product Description

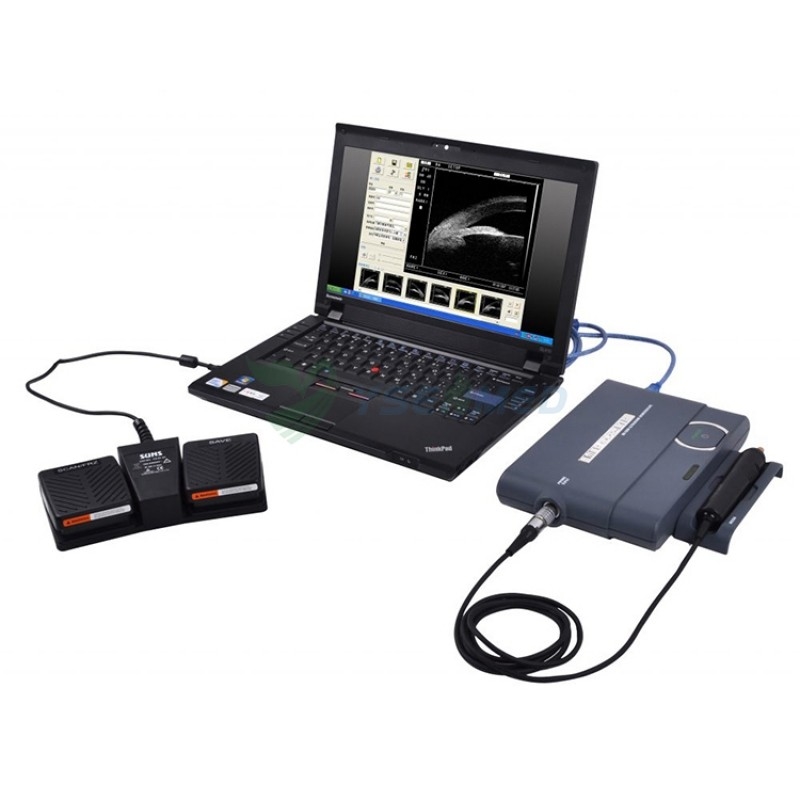

MD-320W Portable Ultrasound Biomicroscope

MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions 0

MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions 1

Minimize but no compromise! 50MHz high frequency ultrasonic scanning for detection of anterior segment. Your portable and reliable friend.

Features
l        Probe Frequency: 50MHz
l        Two View Ports: 6.7 x 5.3 mm2 & 13.5 x 10.6 mm2 for detailed and panoramic scanning respectively
l        Probe Protection: hibernation after 5 minutes continuous scanning
l        Alarm and Auto-Freezing when probe is blocked or approaches the cornea
l        Easy operation, functions are designed according to the doctors’ customs and the scanning process
l        Real-time video capture, single frame and dynamic cineloop capture
l        Printable Report with Graph and Text
l        Archive and Search for Patient Record
l        Portable Design
l        Massive Storage Capacity
Specifications:
l        Probe Frequency: 50MHz
l        Resolution: axial≤0.05mm, lateral≤ 0.1mm
l        View Ports: 6.7 mm x5.3 mm, 13.5mm x10.6 mm
l        Scan Angle: 13.5°/27°
l        Variable Delay Depth: 3 ~ 18 mm, adjustable by step of 1 mm
l        Dynamic Replay for 4.8 sec, 48 images displayed continuously or separately
l        Image Processing: Brightness, Contrast, Annotation, etc.
l        Measurement: Distance, Angle, Area, etc.
l        Printable Report with: Patient’s information, Clinical test, Description of images
l        Total Gain: 105dB
l        Gray Scale: 256 levels
l        Image Formats: JPG, BMP
MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions 2
MD-320W ophthalmic Portable Ultrasound Biomicroscope medical equipment solutions 3
