Class I Hospital Emergency Equipment Ceiling Operating Lamp 80000Lux 160000 lux
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
Minimum Order Quantity : | 1pc | Price : | $1,999.00 - $2,900.00/Sets |
---|---|---|---|
Packaging Details : | standard package | Delivery Time : | about 5 days |
Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 5000 Set/Sets per Month |
Place of Origin: | China | Brand Name: | SUCE |
---|---|---|---|
Certification: | CE,ISO13485 | Model Number: | S390H/S390L |
Detail Information |
|||
Power Source: | Electric | Warranty: | 1 Year |
---|---|---|---|
After-sale Service: | Online Technical Support | Material: | Metal, Plastic, Steel |
Shelf Life: | 1years | Quality Certification: | Ce |
Instrument Classification: | Class II | Safety Standard: | GB/T18830-2009 |
STYLE: | Ophthalmic Optical Equipments | Product Name: | Slit Lamp Digital |
Type: | Galilean-Type | Magnification Change: | 5 Magnifications |
Eyepiece: | 12.5X | Angle Between Eyepieces: | 13 Degree |
Total Magnification Ratio: | 6X, 10X, 16X, 25X, 40X | Field Of View: | 40X (5.5mm), 25X (8.5mm), 16X (13.5mm), 10X (22mm), 6X (34.7mm) |
Diopter Adjustment: | -6D-+6D | Slit Width: | Continuously Variable From 0 To 14mm (at 14mm, Slit Becomes A Circle) |
Product Description

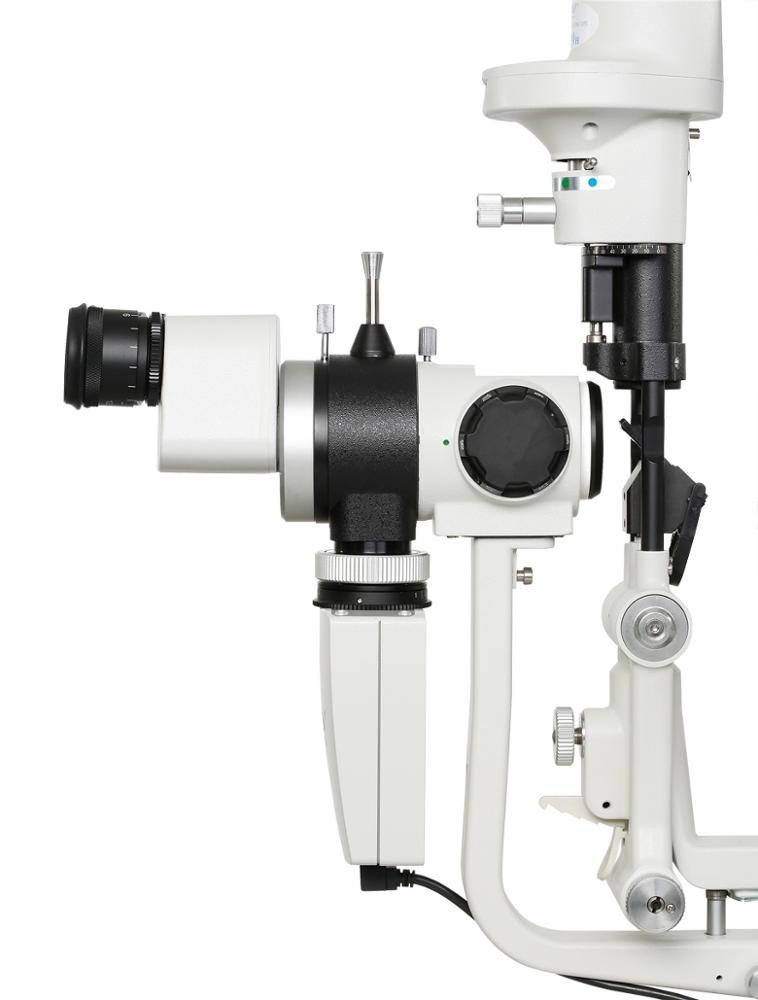

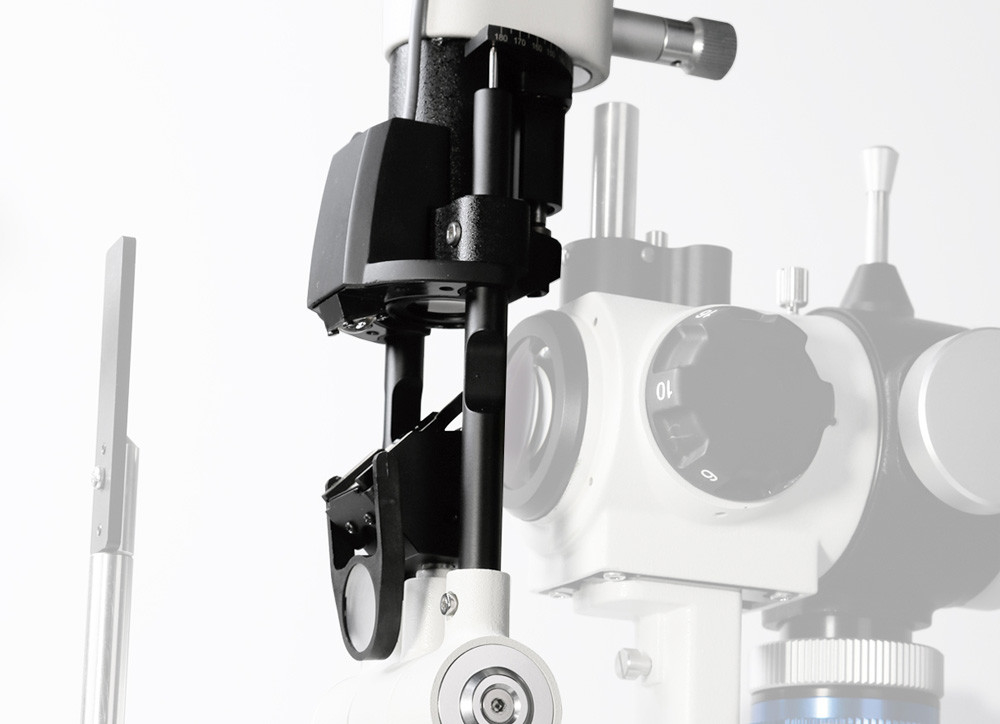

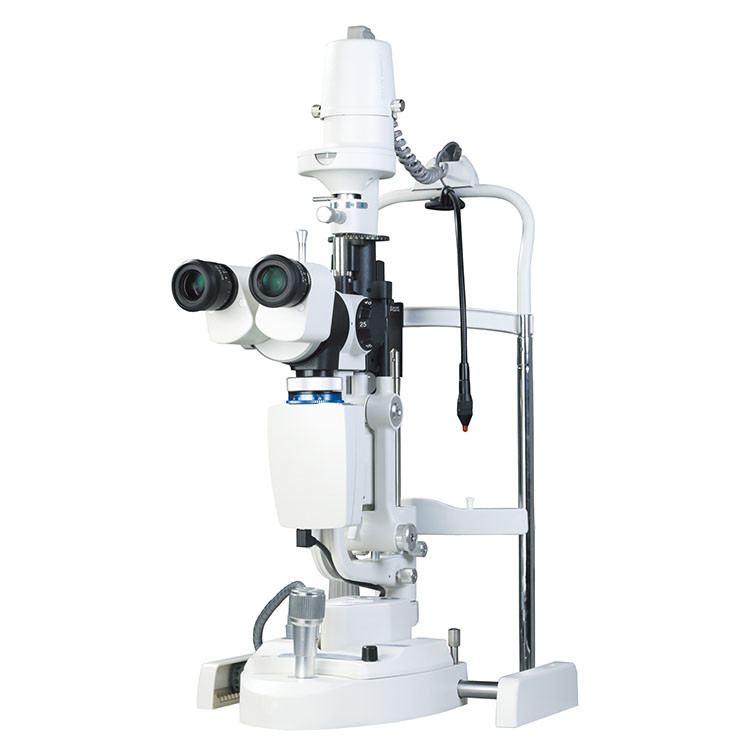

led slit lamp microscope/slit lamp digital/digital portable slit lamp
General description
The S390H&S390L slit lamps series is slit lamps including motorized focusing digital module.
S390H&S390L slit lamps can only compatible with motorized focusing digital module.
Working principle:
A beam of light attached to the slit lamp projects to the patients' eye, which forms an optical section of the living tissue of the eye, in this way the doctor can finish the observation and examination. Slit Lamp Microscopes are used to observe the disease of the anterior structures and tissue damage of eyes.
Instruments classification:
This instrument is categorized to Class I Type B according to IEC 60601-1 standard, which cannot be used under two circumstances: a flammable anesthetic gas and air mixture, oxygen or nitrous oxide gas and air mixture. This instrument can be running continuously. It doesn't belong to category AP or APG.
Indications for use:
The S390H&S390L Slit Lamps are AC-powered slit lamp biomicroscopies intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. They are used to aid in the diagnosis of diseases or trauma which affects the structural properties of the anterior eye segment.
