Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen MSLBIO01

Minimum Order Quantity : 1pc Price : $2800.00 - $3,500.00/Sets
Packaging Details : standard export carton package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Set/Sets per Month
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: BIO01

Detail Information

Power Source: Hydraulic Warranty: 1 Year
After-sale Service: Online Technical Support Material: Metal
Shelf Life: 1years Quality Certification: PSE
Instrument Classification: Class I Safety Standard: EN 149 -2001+A1-2009

Product Description

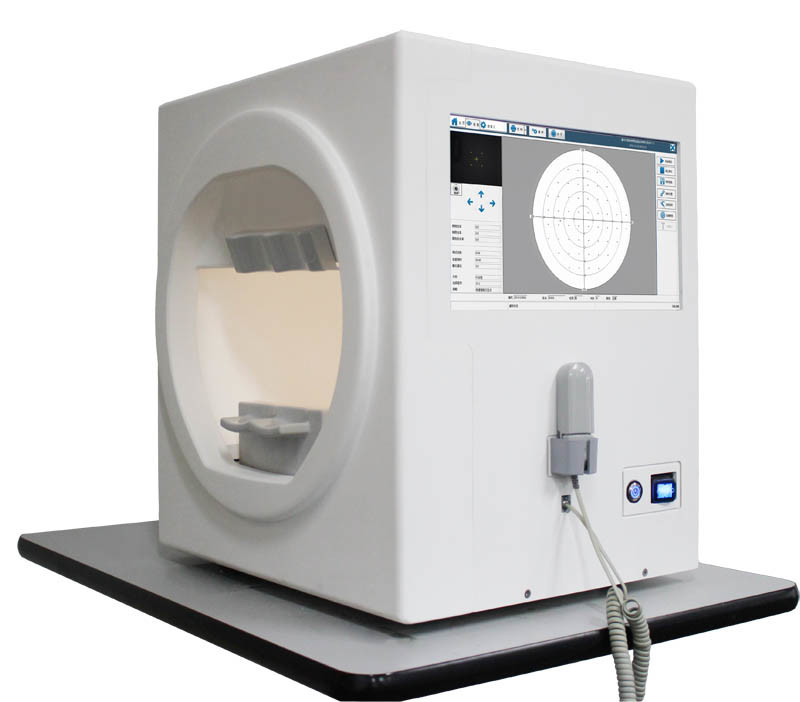

Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen BIO01
Product Description
Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen MSLBIO01 0

The MSLBIO01 automated perimeter absorbs the advantages of international advanced perimetry devices. It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advanced configuration, comprehensive software inspection categories, it provide international standard 6 analysis report of glaucoma, fundus disease, visual pathway injury and neurological diseases.
Technical Features
*Comprehensive real-time monitoring,heiji-krakau physiological blind spot monitoring,gaze tracking/head position tracking,
automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
*Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
*A variety of classic test procedures, including international standard six report analysis .
Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen MSLBIO01 1
Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen MSLBIO01 2
Technique Parameters
Inspection range
90°
Inspection distance
30CM
Background light brightness
White 31.5asb
Visual target brightness
1asb---10000asb
Visual target size
GoldmannⅢ
Visual target interval time
200ms
Visual target interval time
Standard or adjustment according to patient reflection
Threshold test model
Center 5º-16,center10º-68,24-2,30-2,30º-60º,nasal step
Upper Threshold test model
30º-40 , 30º-76,P-60, 60º-81, 60º-120,1 90º-135 nasal side
Pupil size test
Automatic
Size
412mm(length)* 497mm(width)* 513mm(height)
Weight
17kg

Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen MSLBIO01 3
Ophthalmology Projection Perimeter Visual Field Analyzer Automatic Computer Perimeter Touch Screen MSLBIO01 4
