Medical Digital ECG Device 12 Channel ECG Machine

Minimum Order Quantity : 1pc Price : $1,090-1,290.00/Sets
Packaging Details : Standard exporting package Delivery Time : about 5 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 50000Pieces/month
Place of Origin: China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: EC42

Detail Information

Power Source: Electricity Warranty: 1 Year
After-sale Service: Online Technical Support Material: Plastic
Shelf Life: 1year Quality Certification: CCC
Instrument Classification: Class II Safety Standard: GB/T18830-2009
Product Name: Medical Digital ECG Device 12 Channel ECG Machine Application: Medical Healthcare
Package: Cartons Format: Cassete
Usage: Professional Testing MOQ: 1 Pc

Product Description

Product Description

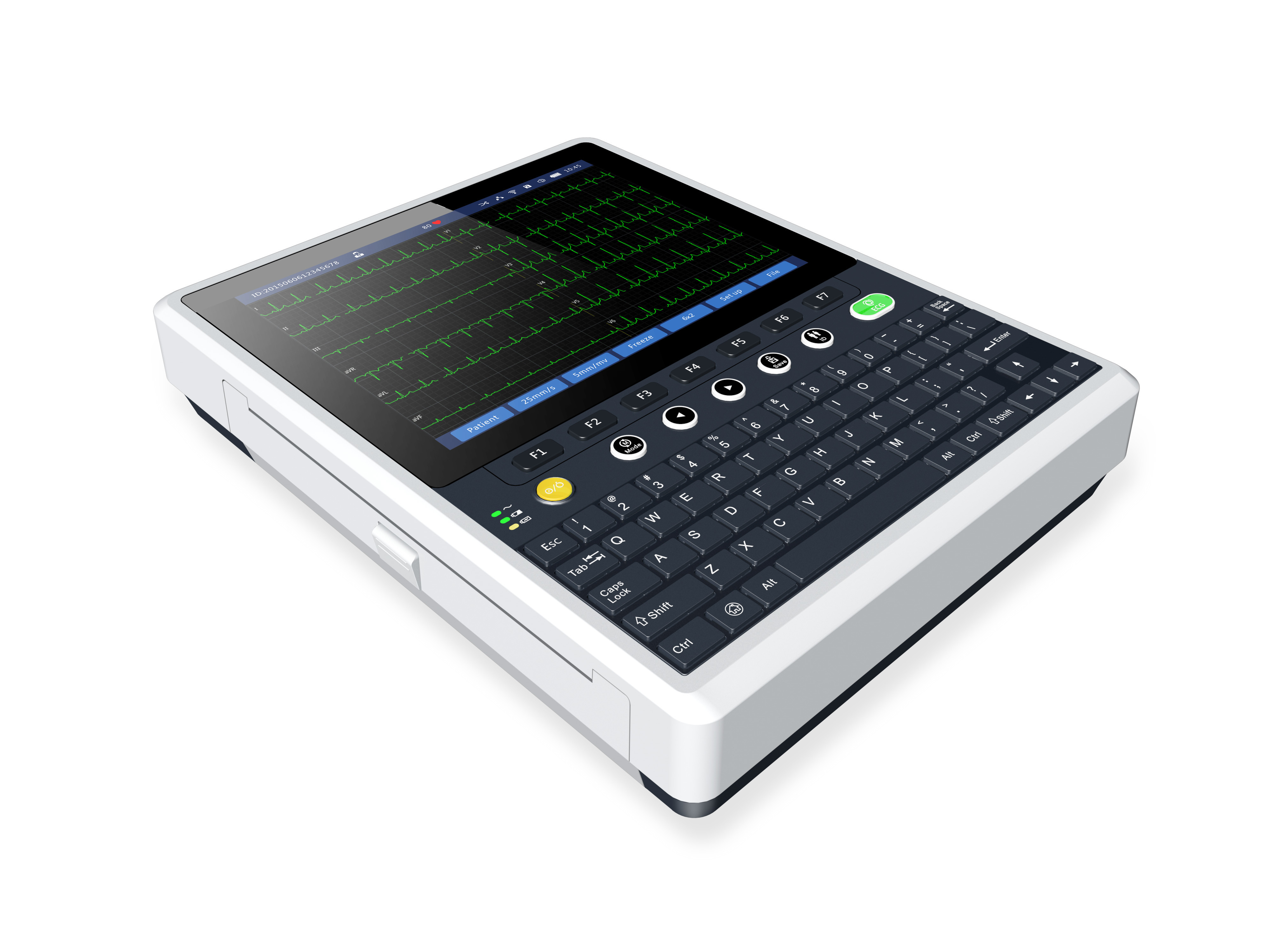

Medical Digital ECG Device 12 Channel ECG Machine 0

Features of Medical Digital ECG Device 12 Channel ECG Machine



           Simultaneously 12 leads Acquisition

Built-in protection against defibrillator

10.4’ HD LED Touch Screen with standard grid background

Sampling Modes:

Real-time/Pre-sampling/Trigger sampling/ Period sampling

Manual/Auto/Rhythm Modes

3x4,3x4+1R,3x4+3R,6x2,6x2+1R, 12x1

display

Support Multiple Languages

Electrode Disconnection Alarm (Diagram)

Automatic measurement & analysis

Support PACE detection

Max 60s waveform freezing and review function

PNG/DCM/XML/ZQECG/HL7/PDF formats report storage

Support the machine to connect scanner, card reader and other patient information input device

Support Wifi and cable connecting to the third party ECG network system, HIS and EMR system without ECG workstation



Technique Specification

   Sampling rate: 32000Hz (pcs) Frequency Response: 0.01 -350Hz Time Constant: ≥ 3.2s

CMRR:130dB

Patient Leakage Current: <10µA

Input Circuit: < 50μA

Noise Level:  10μVp-p

Sensitivity valve: 20 μV Polarization Voltage: ±610mV

Calibration Voltage: 1mV

A/D shift: 24 bit

Input Impedance: ≥ 50MΩ(10 Hz)

Sensitivity: 2.5, 5, 10, 20, 40 auto mm/mV

Paper Speed: 5, 6.25,12.5, 25, 50mm/s

Recording Mode: Thermal array printer

8 dot/ mm (Vertical) 40 dot/ mm (Horizontal, 25mm/s)

   Paper Type: Z-Fold Paper

   Paper Size: 210/216mm×140mm--20m

   AC: off/50/60Hz;

   EMG: off/25/35/45/75/100/150/250/350Hz; DFT: off/0.01/0.05/0.3/0.6Hz
