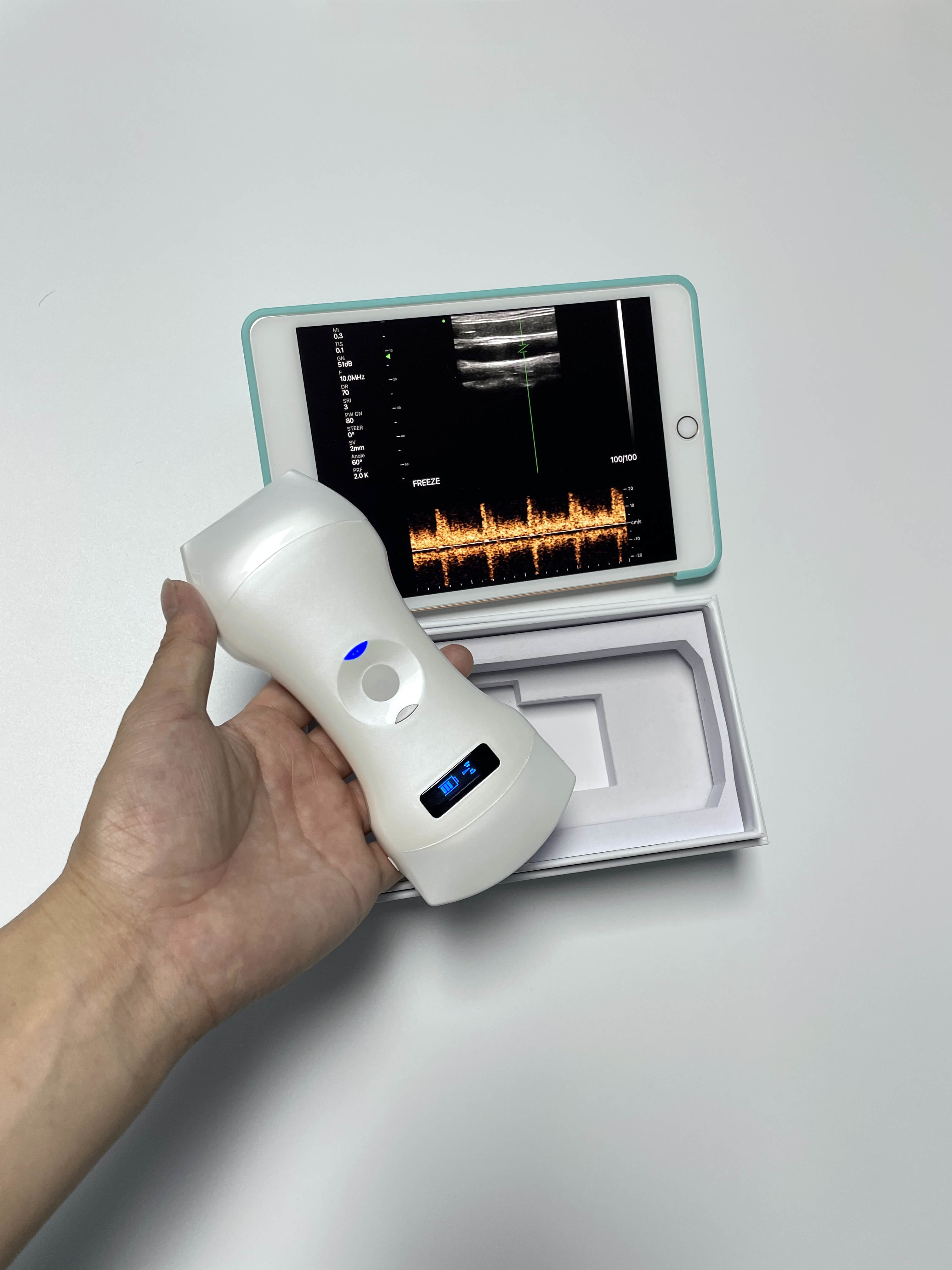

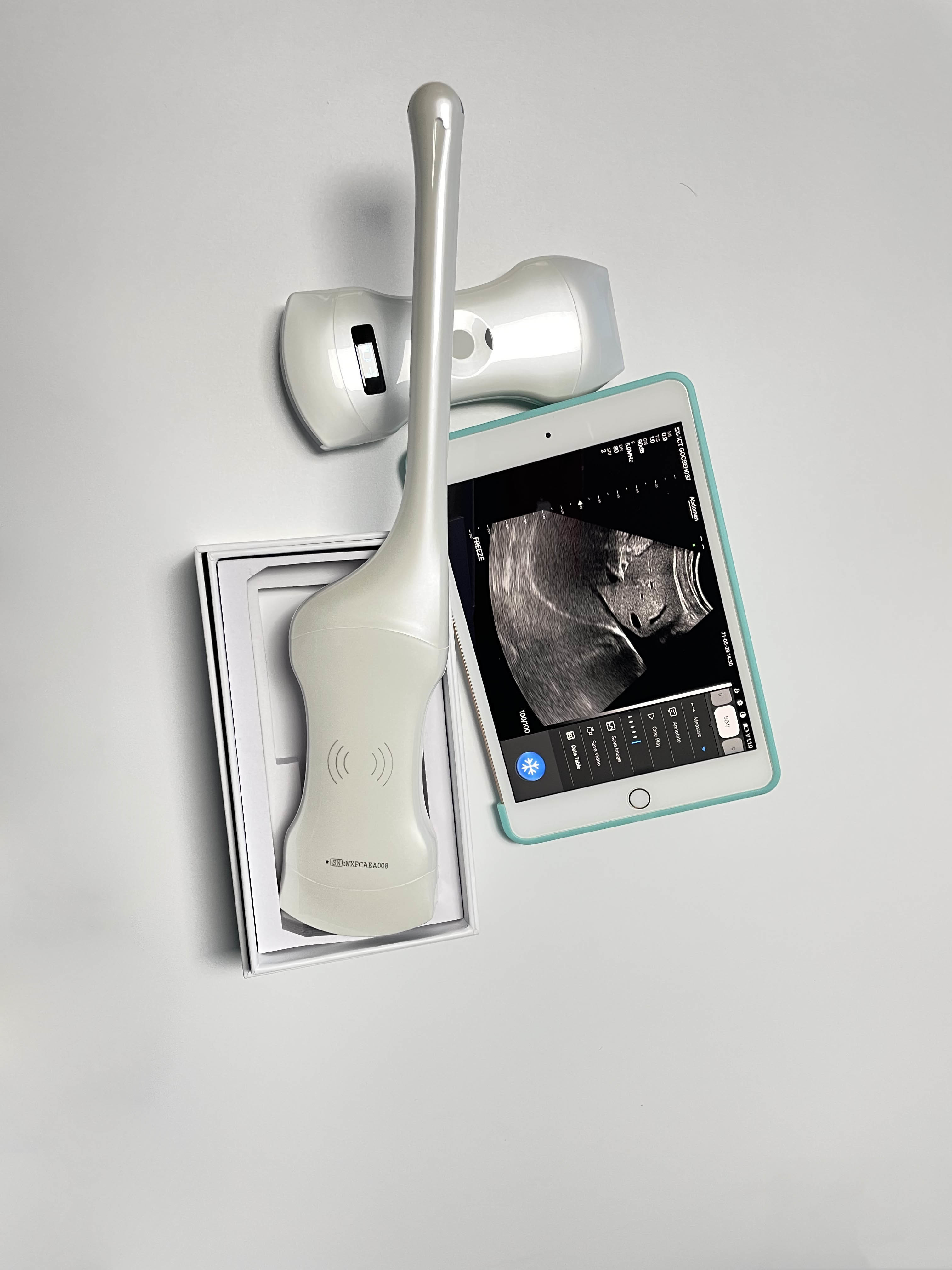

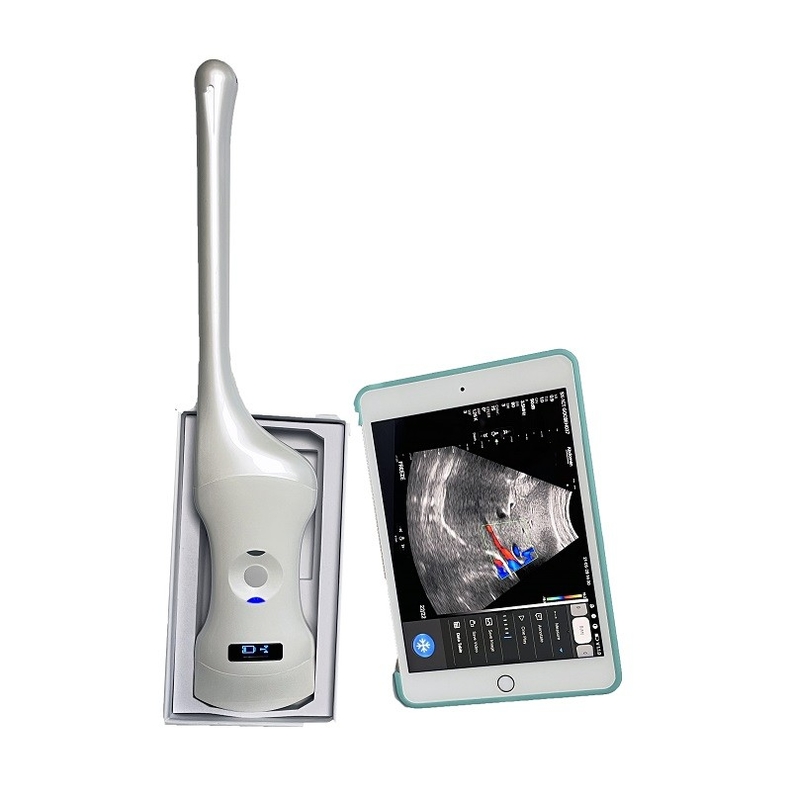

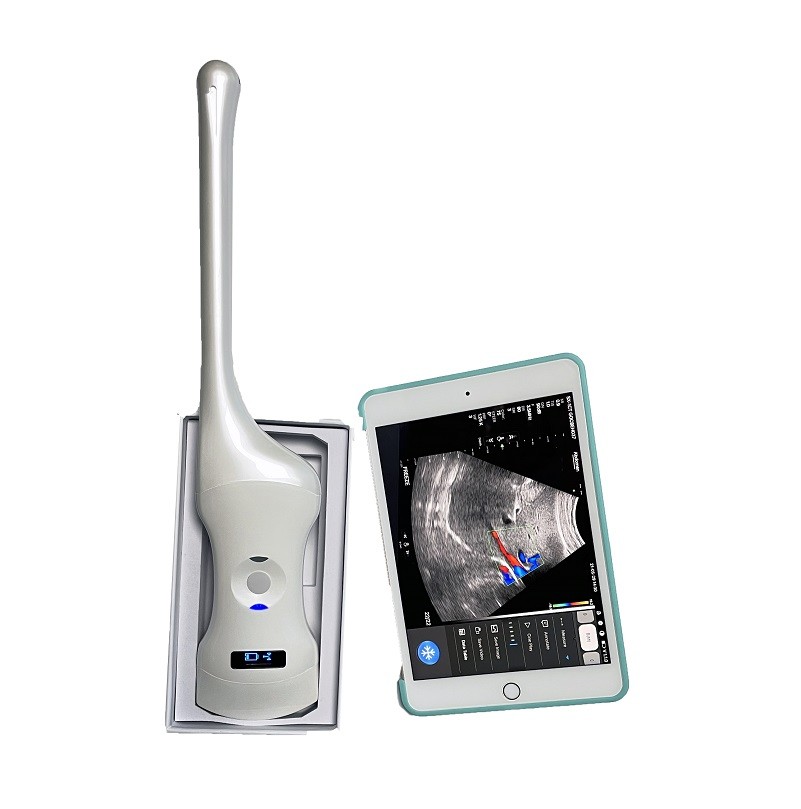

Convex Linear Phased Transvaginal Wireless 3 in 1 Portable Ultrasound Scanner Probe

Model

A

B

Probe Type

Convex&Phased+Linear array probe

Convex&Phased+Transvaginal array probe

Display mode

B, B/M, B+Color, B+PW

B, B/M, B+Color, B+PW

Frequency

Convex&Phased 3.5/5.0MHz;

Linear7.5/10MHz

Convex&Phased 3.5/5.0MHz; Transvaginal6.5/8MHz

Display Depth

Convex&Phased 90~305mm;

Linear 20~100mm

Convex&Phased 90~305mm;

Transvaginal 40~100mm

Probe Radius/Length

Convex 60mm;Linear 40mm

Convex 60mm; Transvaginal 10mm

Wifi type

802.11n/2.4G/5G

802.11n/2.4G/5G

Image Adjust

B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange);

Color/PW: GN,PRF,WF,Steer,Box;

B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange);

Color/PW: GN,PRF,WF,Steer,Box;

Measure

B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC);

B+M: Heart Rate, Time, Distance;

B+PW: Velocity, Heart Rate(2), S/D;

B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC);

B+M: Heart Rate, Time, Distance;

B+PW: Velocity, Heart Rate(2), S/D;

Cinplay

Auto and manual, frames can set as 100/200/500/1000

Auto and manual, frames can set as 100/200/500/1000

Puncture assist function

in-plane puncture guide line,

out-of-plane puncture guide line

in-plane puncture guide line,

out-of-plane puncture guide line

Image/video Storage

Store on mobile phones,Tablet PC

Store on mobile phones,Tablet PC

Power

Built-in lithium battery, Replaceable

Built-in lithium battery, Replaceable

Battery working time

2-3h according to scan mode

2-3h according to scan mode

Charging mode

wireless charging

wireless charging

Bootup

Platform dependent, generally <5 seconds

Platform dependent, generally <5 seconds

Working system

Android / iOS/windows  Download for free

Android / iOS/windows  Download for free

Standard Configuration

Host:1pcs

Host:1pcs

Dimensions

156(w)x60(d)x20(h)mm

270(w)x60(d)x20(h) mm

Package size

185(w)x105(d)x55(h) mm

520(w)x100(d)x80(h) mm

Net weight

250g

300g

Gross weight

750g

800g
