Aurora SP built-in mini thermal transfer printer module for patient monitor

Contact Now

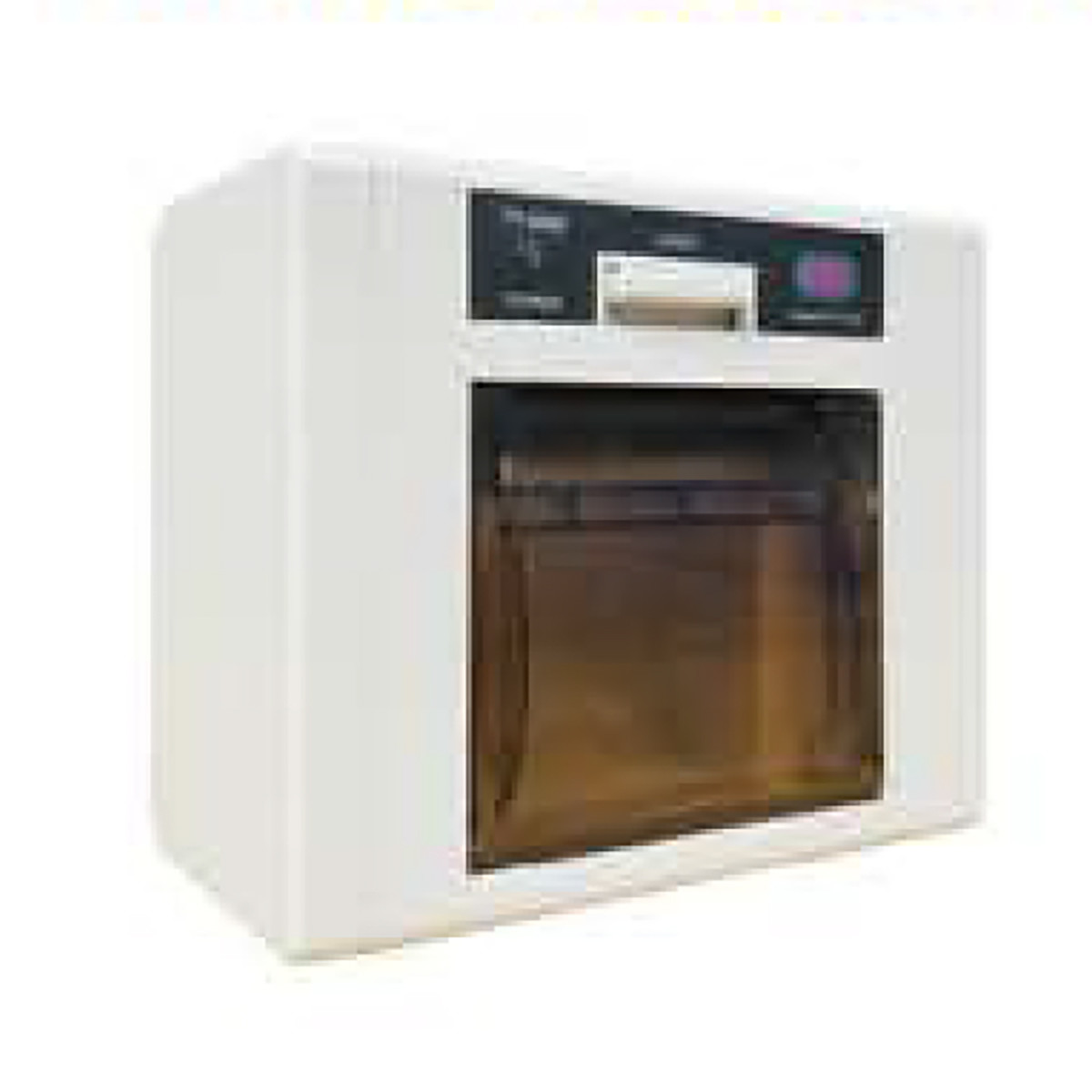

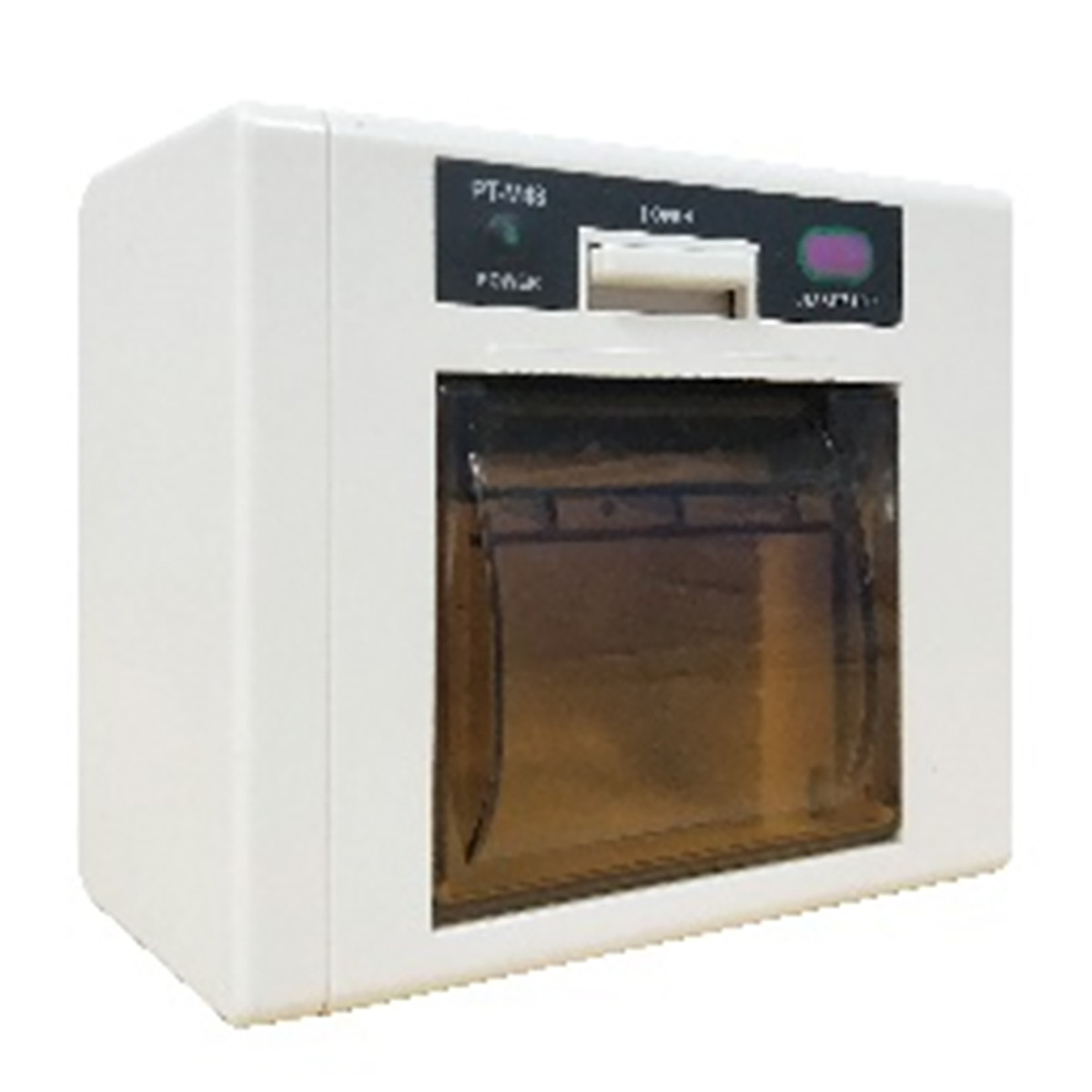

Aurora SP built-in mini thermal transfer printer module for patient monitor

Name: Aurora SP built-in mini thermal transfer printer module for patient monitor
Brand: Konsung
SKU: Aurora SP
Price: 120.00 USD
Availability: InStock
Rating: 4.7 (184 reviews)

Minimum Order Quantity :	1pc	Price :	$120.00 - $150.00/Pieces
Packaging Details :	Packing with plastic box/printer module	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	10000 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Konsung
Certification:	CE,ISO13485	Model Number:	Aurora SP

Detail Information
Private Mold:	NO	Products Status:	Stock
Type:	Thermal	Style:	Mini
Use:	Receipt Printer	Interface Type:	Usb
Max Paper Size:	57±0.5mm	Black Print Speed:	90mm/s
Color Print Speed:	No	Max. Resolution:	203dpi, 8dots/mm
Warranty(Year):	2-Year	After-sales Service:	Return And Replacement, Free Spare Parts
Software Development Kit (SDK):	NO	Product Name:	Printer Module
Interface:	USB+RS232	MOQ:	1pc
Color:	Black Color	Warranty:	2 Years
Material:	Polystyrene	Usage:	Connect To Patient Monitor
Sterile:	E.O. Sterile	Battery:	Lithium: 7.4VDC/1200mA
Package:	Plastic Box

Product Description

Specification

Product Name	printer module
Dimension	103mmx57mmx57mm
Command System	ESC printer command/WH printing command
Print method	Direct thermal print and auto paper feed
print width	48mm
diameter of paper roll	30mm
Dot per lie	384 dots/line
Woking Voltage	DC3.5V--9V (from7.2-5v,with highest speeed and excellent effect)
Print Font	ASCII FontA 1224/ASCII FontB : 924/Chinese:24*24
interface	RS232 and TTL
Power	12V /5-9V
lacking paper testing	photoelectricity sensor
Package Type	packing

Features:
◆ Exquisite design with built-in adapter
◆ Stable quality and competitive price
◆ Different color for optional
◆ Compatible with ESC/POS command set
◆ Support USB interfaces

Product Description

High speed

High printing speed up to 90mm/s

Thermal print paper

Drop in paper loading, max paper roller diameter reaches to 57±0.5mm

Main Composition

This printer is made of polystyrene, durable and enviromentally.

Easy to Install

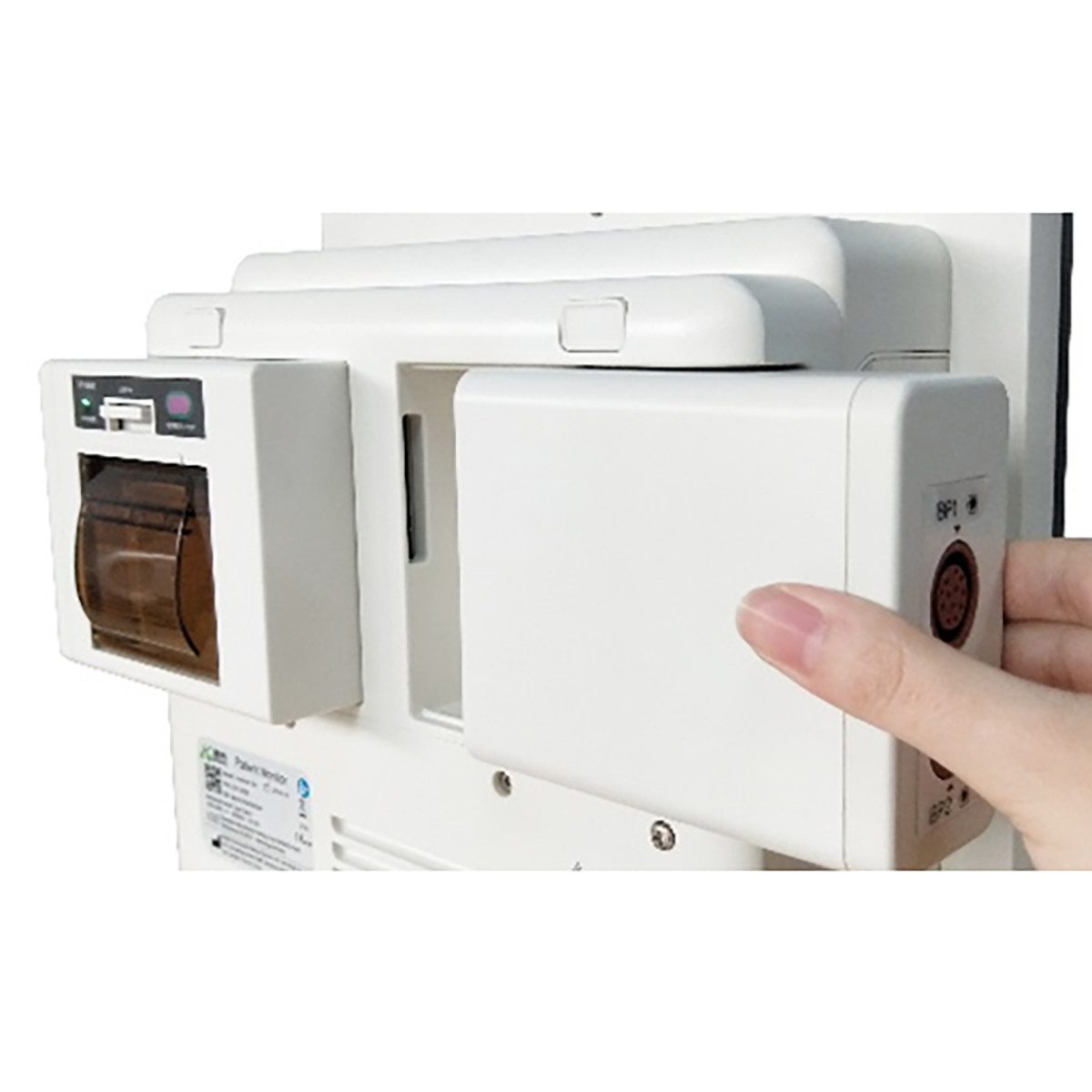

Installed on the back of patient monitor, detachable.

Powerful processor

High configuration processor, printing does not jam, stable and reliable.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. Do you have to replace ink in a thermal printer?

Thermal printers keep costs low as they do not rely on ink to print. No ribbons, cartridges or other supplies need to be replaced to ensure continued use. Paper alone is the only refillable supply required to keep the printer running. These compact printers are portable and convenient to use on the go.

2. How long does a thermal printer last?

Thermal printing with direct thermal paper can last for about 7-15 years, while those printed on premium thermal transfer paper can last for 20-25 years depending on the ribbon type you use. Synthetic media can last for at least 20 years.

3. Can you use regular paper in a thermal printer?

Using thermal paper in a regular printer is not advisable. Thermal paper is designed to work in thermal printers, which use heat instead of ink. ... Thus, a regular printer would probably not produce good results. The same applies to using regular paper in a thermal printer.

4. Why is my thermal printer printing blank?

Depending on the application, and it is possible that the roll of paper has the thermal coating on the wrong side, or the paper has been installed wrong. ... Remove the thermal paper roll. Rotate the roll 180° and reinstall so that the opposite side of the paper is being printed on. Run a test print.

5. How can the life of a thermal printer be extended?

Excessive speed or darkness settings: We recommend running your printer on a slower speed and the lowest darkness setting capable of providing the hue you need. Doing this extends the life of your printhead while providing better print quality.
