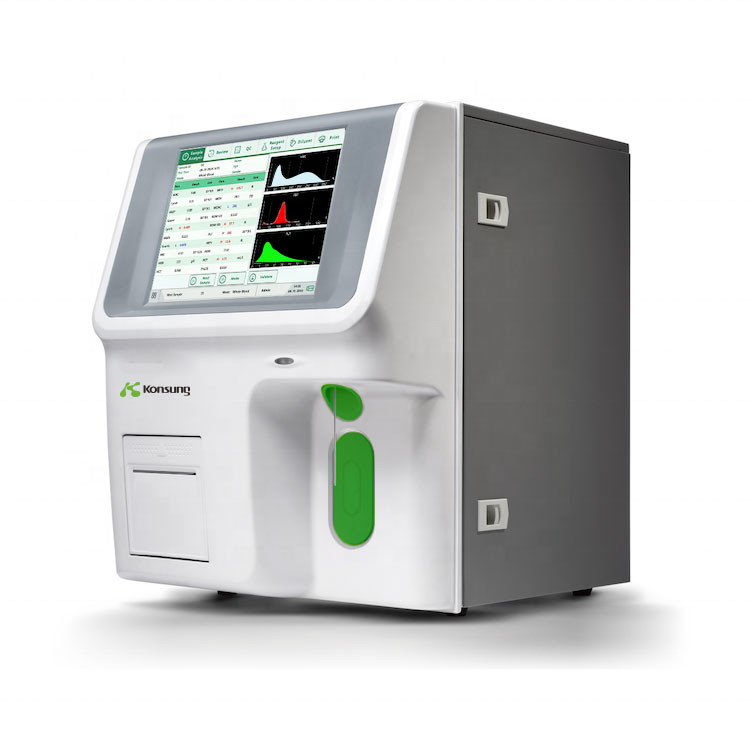

HA5 lab clinical testing fully automated 5 part hematology analyzer for medical use

Contact Now

HA5 lab clinical testing fully automated 5 part hematology analyzer for medical use

Minimum Order Quantity :	1pc	Price :	$5,500.00 - $6,000.00/Pieces
Packaging Details :	Packing in carton, one piece of device including full set of reagent/hematology analyzer	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Konsung
Certification:	CE,ISO13485	Model Number:	HA5

Detail Information
Type:	Blood Analysis SYstem	Instrument Classification:	Class II
Warranty:	2 Years, 3 Years	After-sale Service:	Online Technical Support
Product Name:	Hematology Analyser	Voltage:	100-240V,50/60Hz ,30VA;
Printer:	Inner Thermal Printer	Display:	LCD
Work Environmental Temperature:	0 ℃ ~40 ℃	Inspection Method:	Optical
Sample Dosage:	10ul	Inspection Time:	≤3min
Type Of Sample:	Capillary Vessel Or Vein	Port:	Shanghai Port

Product Description

Specification

Product Name	hematology analyzer
Principle	Flow cytometry + tri-angle laser scatter+ chemical dye method for WBC 5-diff differential analysis and WBC counting
Mode	CBC, CBC+DIFF
Throughput	60 samples per hour
Parameters	WBC, RBC, HGB, HCT, MCV, MCH, MCHC, ROW-CV, ROW-SD, PLT, MPV, PCT, PDW, P-LCR, P-LCC
Sample Mode	Whole blood, Capillary blood, Pre-diluted
Sample Volume	18 μL
Calibration	Manual or auto calibration
QC Rule	L-J, X-B, X-M, X-R
Screen	8.4-inch touch screen
Storage Capacity	2:50,000 results including numeric and graphical information
Power Supply	(100-240) V-, 50/ 60Hz, 200 VA
Weight	22kg
Dimension (mm)	230(W)415(0)435 (H)

It is an evolved 5 part hematology analyzer with compact design that eclipses traditional 5-diff hematology analyzer in the market. It is designed for upgrading your blood analysis solutions.

Product Description

Small size and lightweight

Small volume, built-in hemolytic agent, saving operation space

Economical

Cancel cleaning fluid, EZ fluid. Less reagents are used in the detection process, reducing costs. Small package of diluent,
hemolytic agent avoid waste

Diverse modes

Supporting the whole blood, a pre-dilution mode, consumption of the whole blood 9ul. Detection can meet special populations

Fast and easy to use

Detecting speed of 60 samples per hour. LCD touch screen, fast operation. Display all parameters on the same screen.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. What does a hematology analyzer measure?

Automated hematology analyzers can rapidly analyze whole blood specimens for the complete blood count (CBC). Results include red blood cell (RBC) count, white blood cell (WBC) count, platelet count, hemoglobin concentration, hematocrit, RBC indices, and a leukocyte differential.

2. Which health problems can be identified by hematology analyzer?

Hematology tests include tests on the blood, blood proteins and blood-producing organs. These tests can evaluate a variety of blood conditions including infection, anemia, inflammation, hemophilia, blood-clotting disorders, leukemia and the body's response to chemotherapy treatments.

3. What is 5-part hematology analyzer?

A 5-part cell counter can differentiate all WBC types (neutrophils, lymphocytes, basophils, eosinophils, and monocytes). 5-part analyzers are more expensive than 3-part analyzers but provide more in-depth information about the sample. Specific jobs, such as allergy testing, require 5-part differential analysis.

4. How a hematology analyzer is working?

In this, the entire blood sample is passed through the area between two electrodes where the area is so small that only one cell can pass at a time. With every cell that passes through this aperture, the impedance varies depending on the volume of that cell.This is how cells are counted and their respective volumes.

5. What is automation in hematology?

Term Paper on Automation in Hematology. The automation is mechanization of various duties performed by machines or analyzers which helps to lessen the workload in laboratories.
