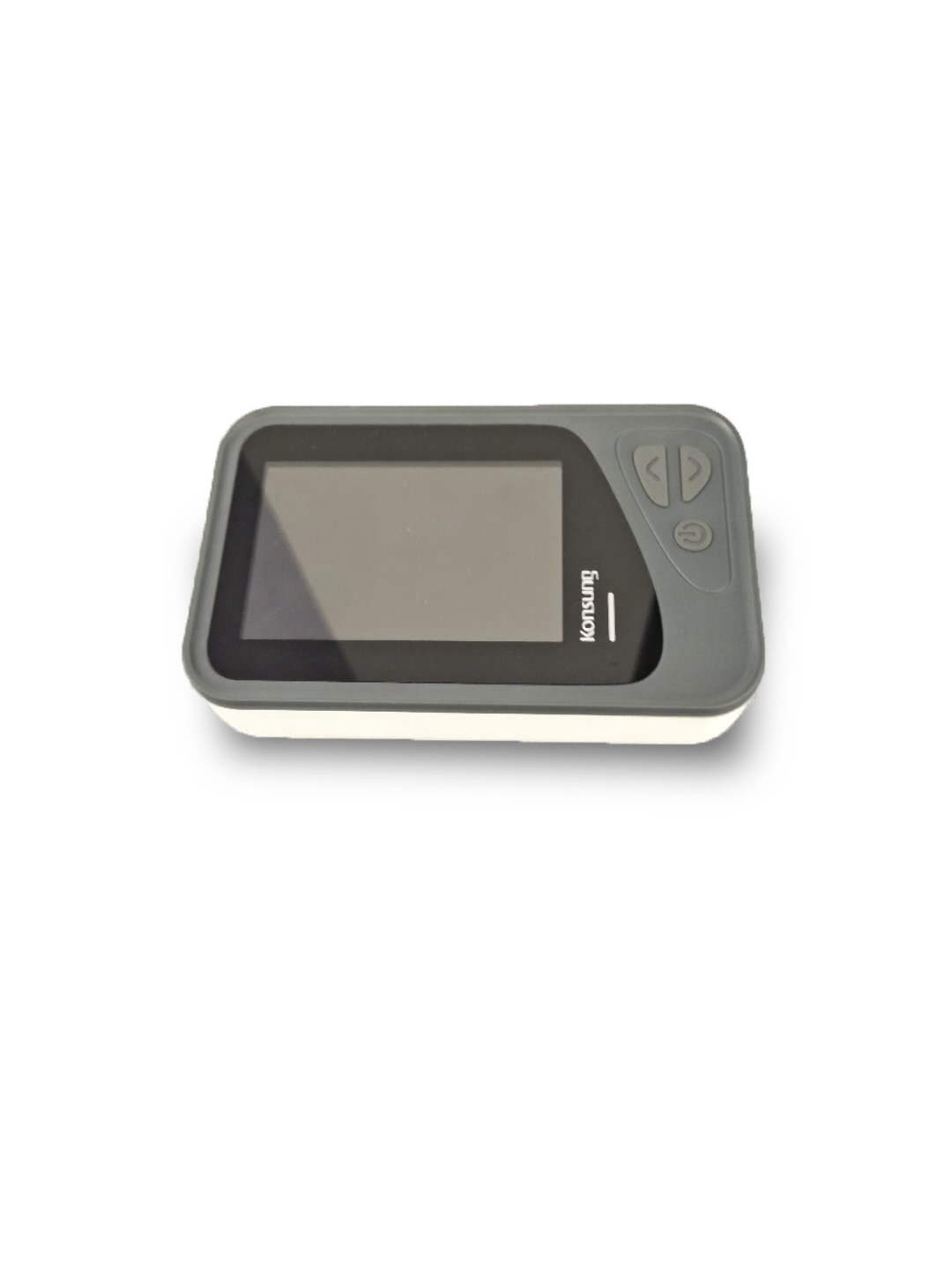

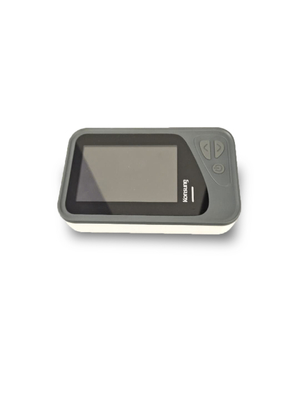

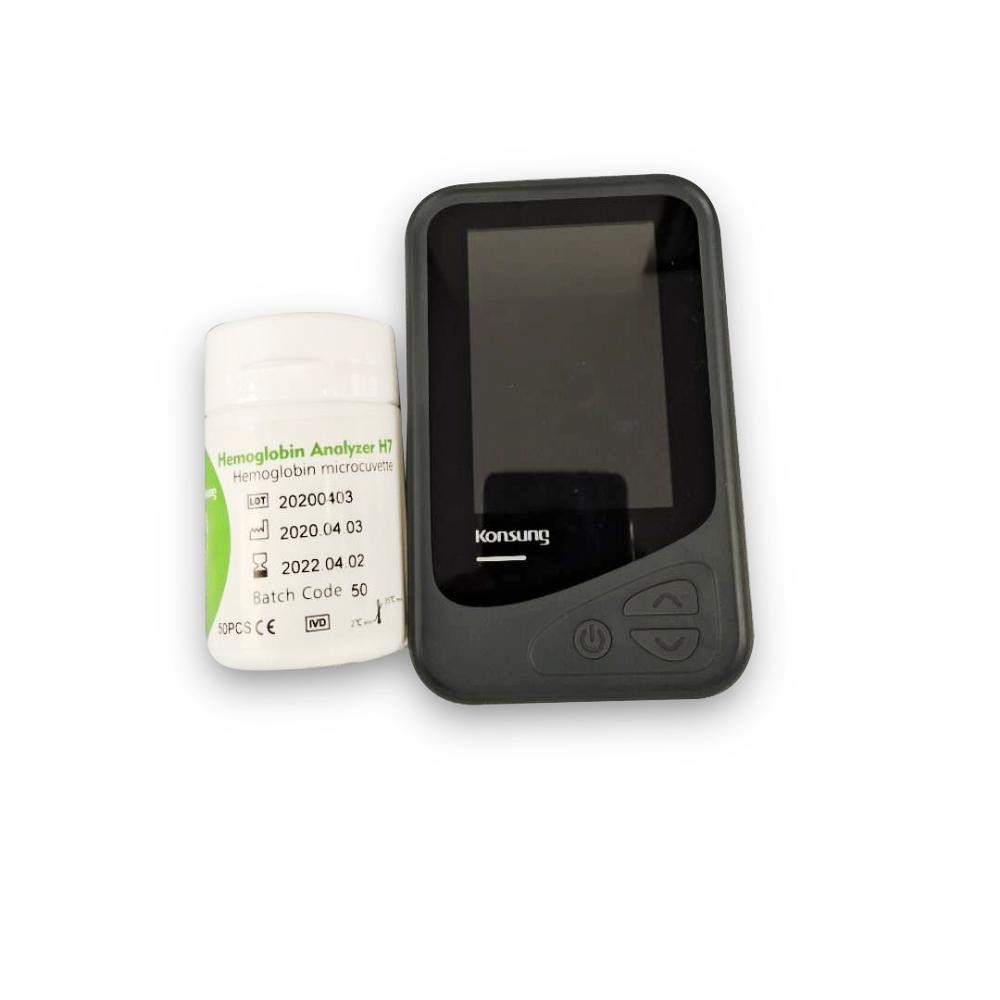

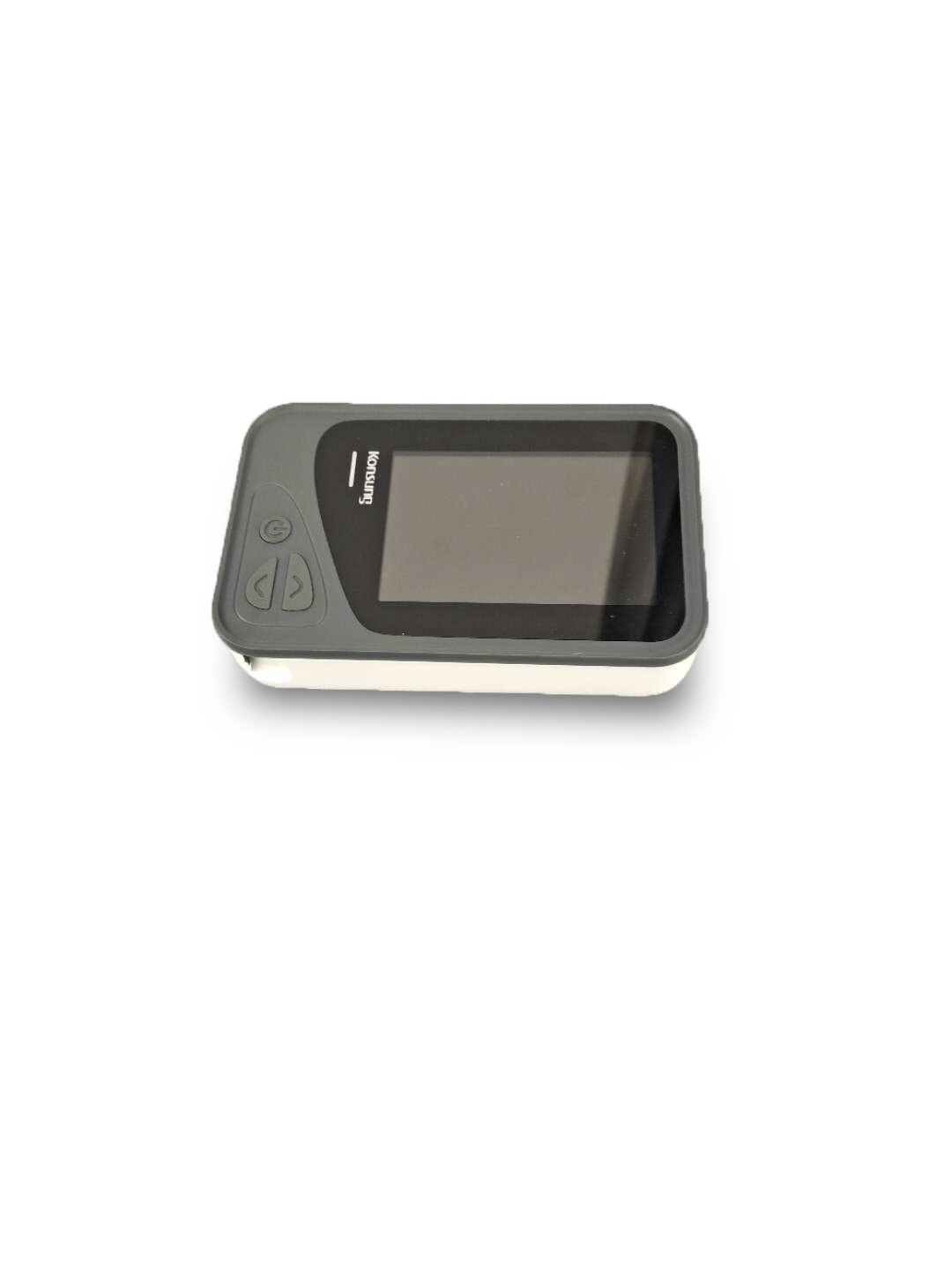

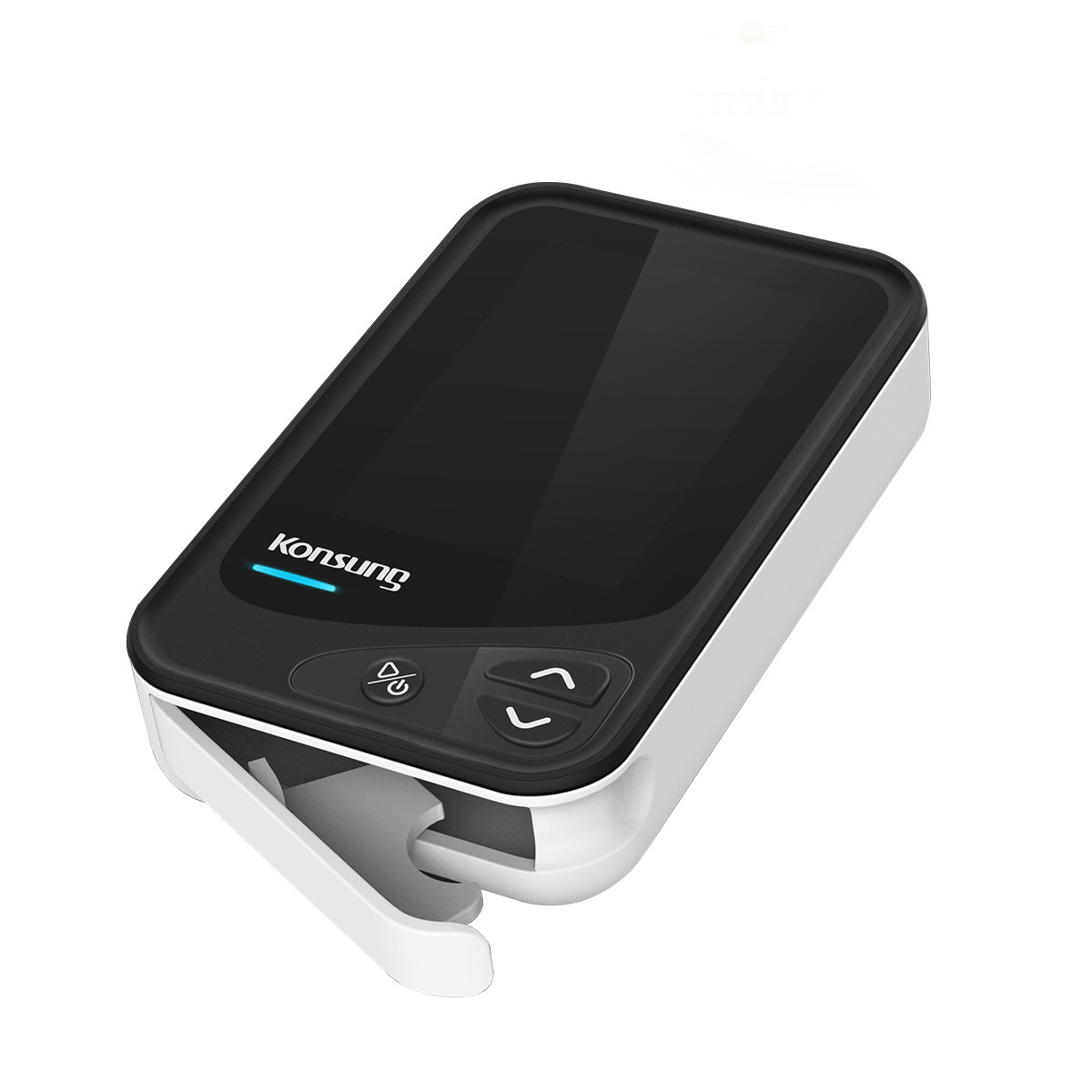

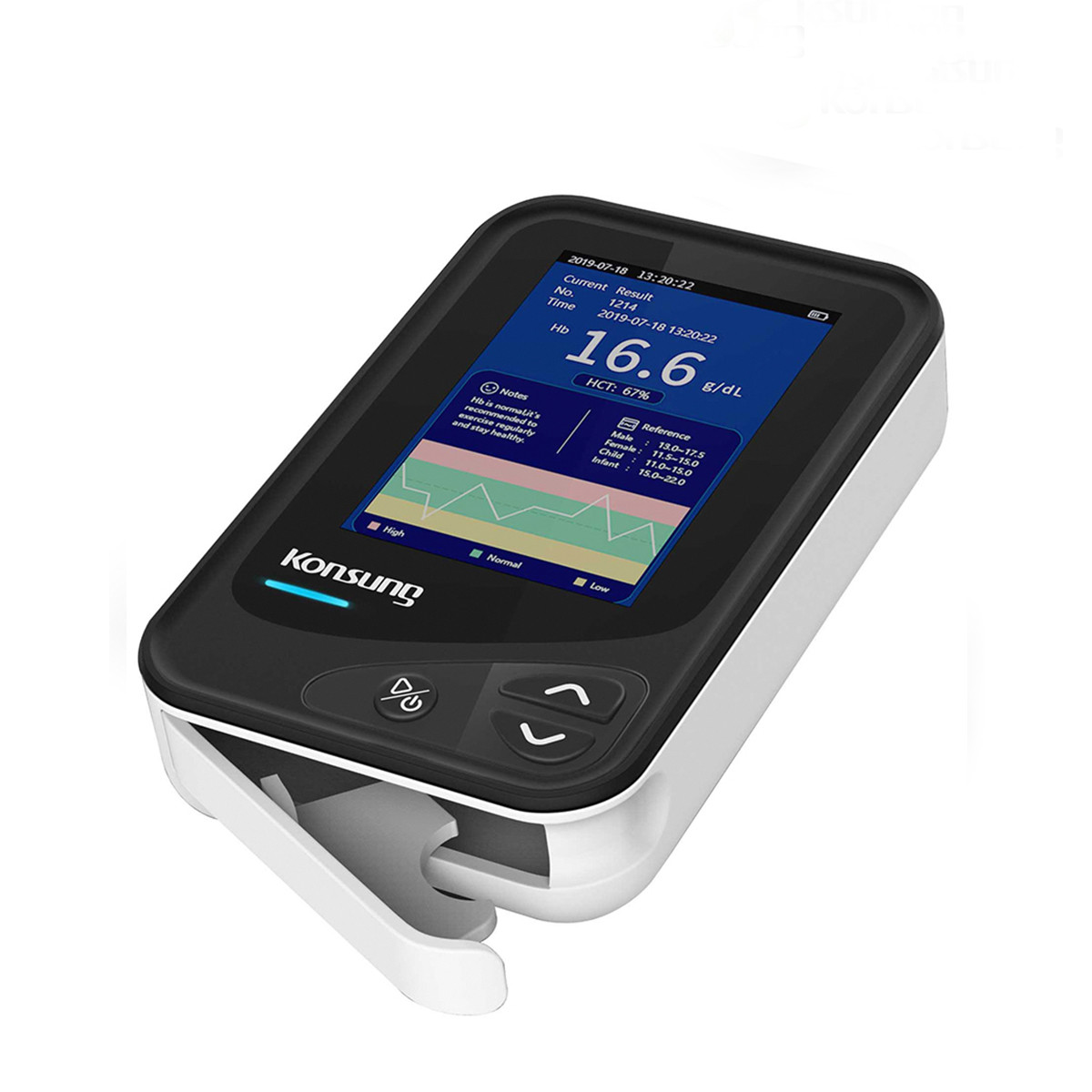

H7 high accuracy blood hemoglobin analyzer medical rapid POCT device for medical use

Minimum Order Quantity :	1pc	Price :	$260.00/Pieces 1-9 Pieces
Packaging Details :	Packing in carton, one device including 50 pieces test chips/POCT device	Delivery Time :	about 5 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	5000 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Konsung
Certification:	CE,ISO13485	Model Number:	H7

Detail Information
Type:	Blood & Gas Analysis System, Blood Testing Equipments	Instrument Classification:	Class II
Warranty:	2 Years, 3 Years (about 20 Samples Per Day) Or 22,000 Tests	After-sale Service:	Online Technical Support
Product Name:	POCT Device	Parameters:	Hb And HCT
Working Environment:	-20°C~60°C	Relative Humidity:	≤90%
Battery:	Lithium Battery	Power Supply:	DC3.7V Rechargeable Lithium Battery
Application:	Medical Field	Material:	ABS Plastic + Electronic Components
Port:	Shanghai Port

Product Description

Specification

Product name	POCT device
Inspection time	≤3s
Measurement range	0–25.6 g/dL
Precision	CV≤1.5%
Accuracy	≤3%
Interface	USB, Bluetooth, wifi, printer
Operating Conditions	15°C～35°C, RH≤85%
Storage condition	-20°C～60°C, RH≤90%
Dimension	13cm8.2cm3.15cm
Packing size	17.6cm12.5cm10.5cm
N.W.	0.22kg
G.W.	0.5kg

Features:
◆Immediate HB and Hct results: ≤3 seconds
◆Hand-held size with lab-quality accuracy: CV≤1.5%
◆Low sample volume: 7µl (capillary or venous blood)
◆Large memory stores: up to 2000 test results
◆Long time using with built-in battery: more than 6 hours
◆Easy and simple operation: 3 steps only
◆Reagent-free cuvette with long shelf life: 2 years
◆Ready to use, No coding needed

Product Description

FAQ

1. What is the meaning of error 07?

Error 07 means test chip is blank or no test chip. You should put new test chip into the device.

2. How we inform the device if we test male, female or children?

The device cannot recognize the source of the sample is adult or child sex…only for the sample which the value is more than 175 and less than 115, the interpretation recommendations of the results are based on the reference range.

3. How long we can use if we recharge full energy in one time?

You can use 6 hours, that means you can test more than 200 persons.

4. Can the hemoglobin analyzer connect to printer?

Yes, the hemoglobin analyzer can connect to thermal printer.

5. How to clean inner slot?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine It would be better by isopropanol and ethanol.

Installation reference
