Portable eeg machine 60 channels with eeg electrode

Minimum Order Quantity :	1pc	Price :	$6,999.00 - $7,999.00/Sets
Packaging Details :	Standard export package	Delivery Time :	about 10 days
Payment Terms :	T/T, Western Union,Payoneer	Supply Ability :	1000pcs/month

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE,ISO13485	Model Number:	OEM

Detail Information
Instrument Classification:	Class II	Type:	Examination Therapy Equipments
Item Name:	Portable Eeg Machine	Input Channels:	24/36/48/60
Noise:	≤ 0.5uVRMS	A/D Conversion:	24 Bit
Internal Memory:	Built-in Flash Memory Card (2GB)	Connection To PC:	USB (HDMI Interface) Cable
Operation Modes:	Real-time	Dimension & Weight:	30023060(mm); 1.65Kg (amplifier Only)
Certificate:	CE/ISO13485	Price:	Competitive

Product Description

SPECIFICATIONS FOR ROUTINE EEG MACHINE
Input channels	24/36/48 Monopolar EEG + 12channels Bipolar EEG, 12 channels PSG.
Power supply	Internal rechargeable lithium battery(16.8v); External charger input: AC100~240V, output DC 19V
Connection to PC	USB (HDMI interface) cable
Operation Modes	Real-time
A/D conversion	24 bit
Sampling Rate	128/256/512/1024/2048/4096/8192Hz
Input impedance	≥ 10MOhm
Noise	≤ 0.5uVRMS
Low-pass filter	1~120Hz
Amplitude-frequency	1~60Hz
High-pass filter	0.01-0.3s
Dimension & weight	30023060(mm); 1.65Kg (amplifier only)

Key Features & Advantages for rutine eeg machine EEG-D

1. Professional EEG amplifier suitable for all standard applications of routine EEG and long term EEG monitoring in the research and clinical areas.

2.Configurable in a number of setups according to user's needs:
24/36/48/60 channels monopolar EEG;
24/36/48 channels monopolar EEG + 12 channels bipolar EEG;
24/36/48 channels monopolar EEG + 12 channels bipolar EEG + ERP examination with Acoustic & Visual stimulator, consisting of three stimulation functions (sound, light and electricity) which can be configured with special earphones and VEP monitor;
24/36/48/60 channels monopolar EEG + 12 channels polysomnography (PSG) parameters, including: ECG (1 channel, 2 leads), Resp (1 channel), Airflow (1 channel), EOG (2 channels), EMG (3 channels), Snore (1 channel), SpO2 (1 channel), thoracic and abdominal position (1 channel);
24/36/48/60 channels monopolar EEG + 12 channels polysomnography (PSG) parameters + ERP examination.

3.24 bits A/D conversion rate, with high sampling rate of up to 8 kHz.

4.High quality real-time EEG signal acquisition is transmitted via fiber optical isolation, which shields away interference from power line and other signals, transmitting stable and reliable measurement data at high-speed while greatly ensuring patient's safety.

5.Amplifier can be operated either by DC power without affecting signal quality.

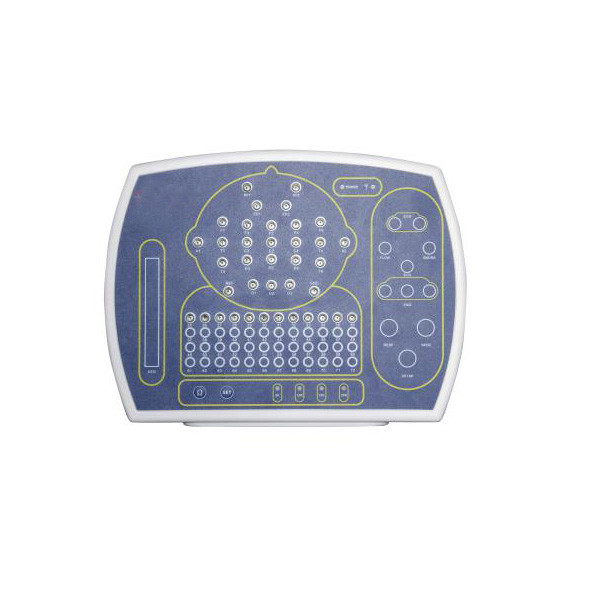

6.Head-box design to access single shielded cup/clip electrodes with touch proof connectors (1.5mm).

7.Built-in impedance testing function and automatic calibration (for both sine wave and square wave signals).

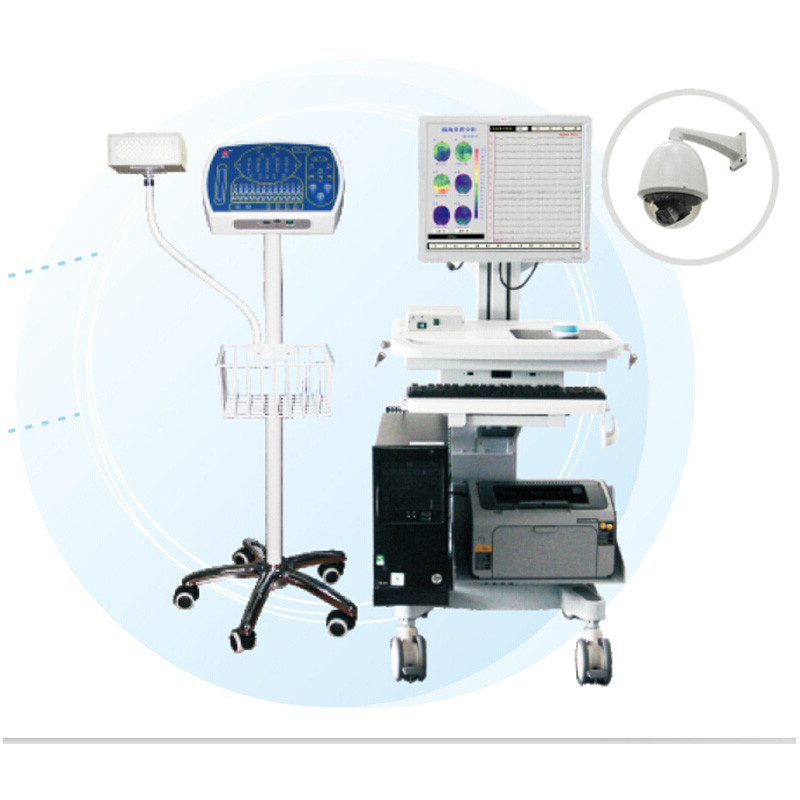

8.Optional video system for recording, editing and displaying video images synchronously with EEG signals.
