Ophthalmologist Eye Chart Medical Device Equipment Lcd Vision Chart

Minimum Order Quantity :	1 Unit	Price :	$199.00 - $860.00/Units
Packaging Details :	Standard export package with professional forwarder shipping service!<br>100% commodity inspection before shipping!<br>100% successful delivery!	Delivery Time :	about 5-8 working days
Payment Terms :	T/T, Western Union, Paypal	Supply Ability :	5000 Unit/Units per Month vision chart

Place of Origin:	China	Brand Name:	SUCE
Certification:	CE, ISO	Model Number:	C901

Detail Information
Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	Plastic
Shelf Life:	1years	Quality Certification:	Ce
Instrument Classification:	Class I	Safety Standard:	GB2626-2006
Product Name:	Vision Chart	Type:	17 Inch Panel With LED Backlit Screen
Resolution:	1280 X 1024 Pixels	Decimal:	0.05~2.0
Working Distance:	2m~7m	Input:	100-240V AC,60/50Hz
Consumption:	20Watt (max)	Remote Control:	2*AA Batteries
Dimension:	540mm X 420mm X 270mm(L/W/H)	Net Weight:	3.6kgs
Port:	Guangzhou
Highlight:	ophthalmologist eye chart 2m~7m , lcd vision chart Medical Device Equipment , ophthalmologist eye chart 20Watt

Product Description

Model No.: C901

MOQ: 1 unit

Vision Chart LCD Vision Chart =C901

What’s new?
17 inch LED backbit screen
New CNT test, which is more scientific, effective, and directive. CNT curve will be formed and displayed on
the screen when the test is finished.

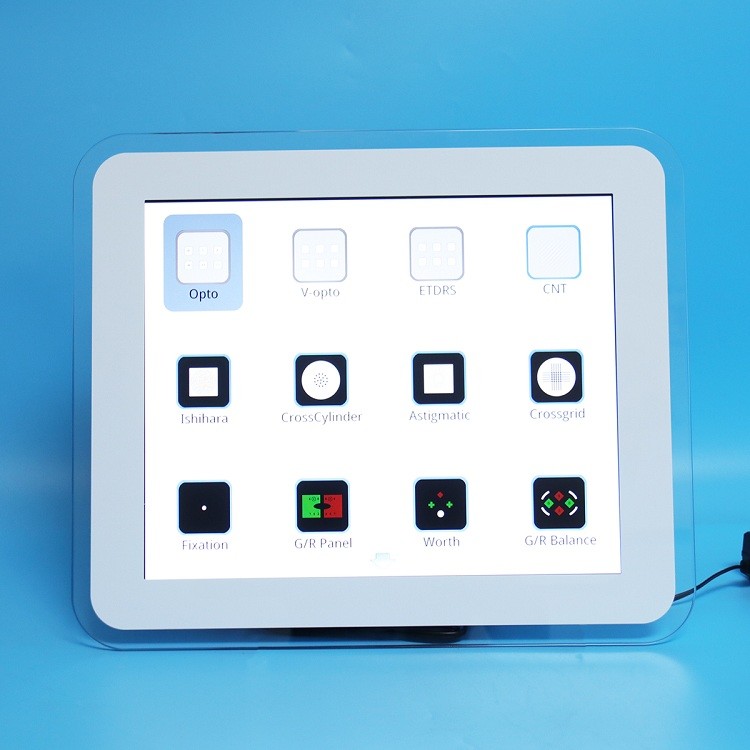

Better user experience--- All tests icons are listed on home interface.
Quick test list--- Pick ten or less frequently used tests to establish your own quick test list.
V style optotype arrangement--- Avoid optotpyes congested on the screen.
Excellent programming give full play to the features of CPU

Type:	17 inch XGA Panel with LED backlit screen
Resolution	1280 x 1024 pixels
Brightness	﹥200 cd/m2 (min)

Detailed Images

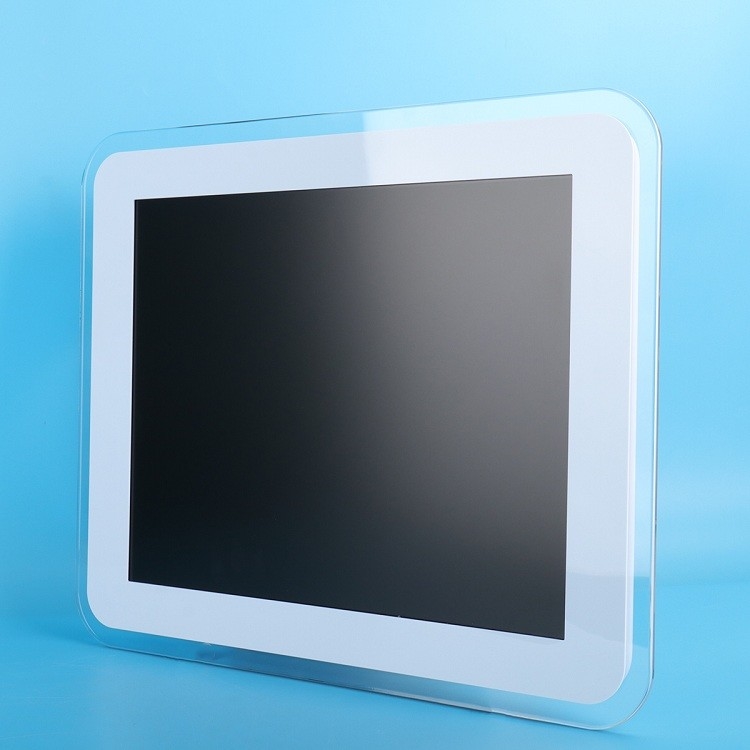

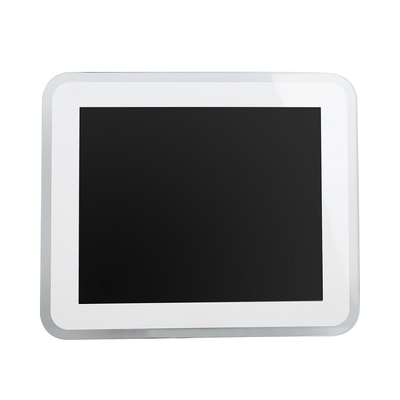

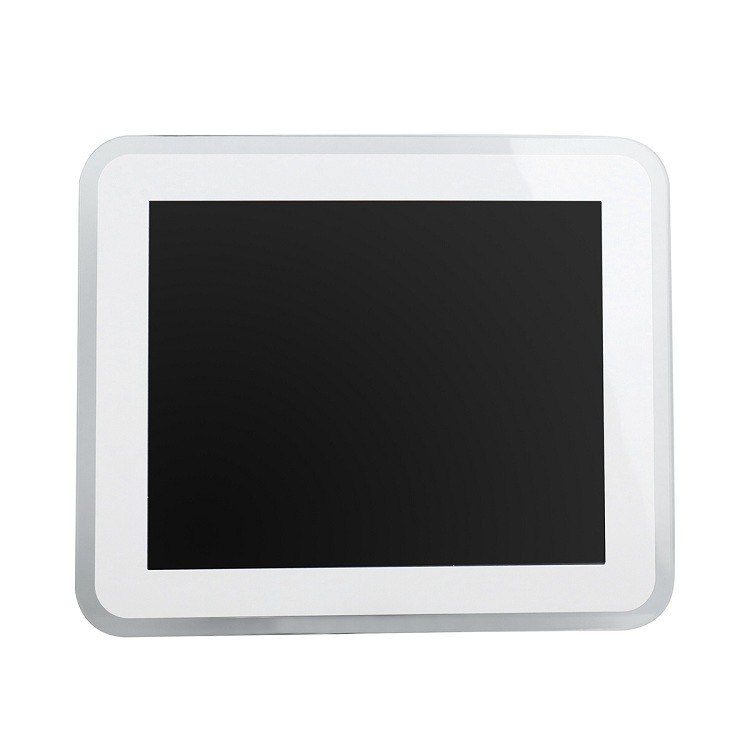

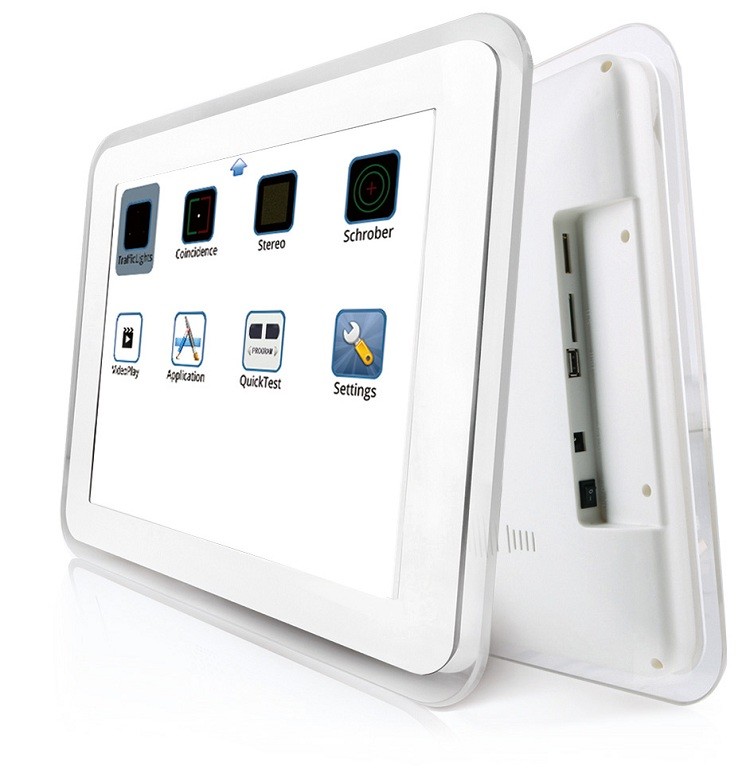

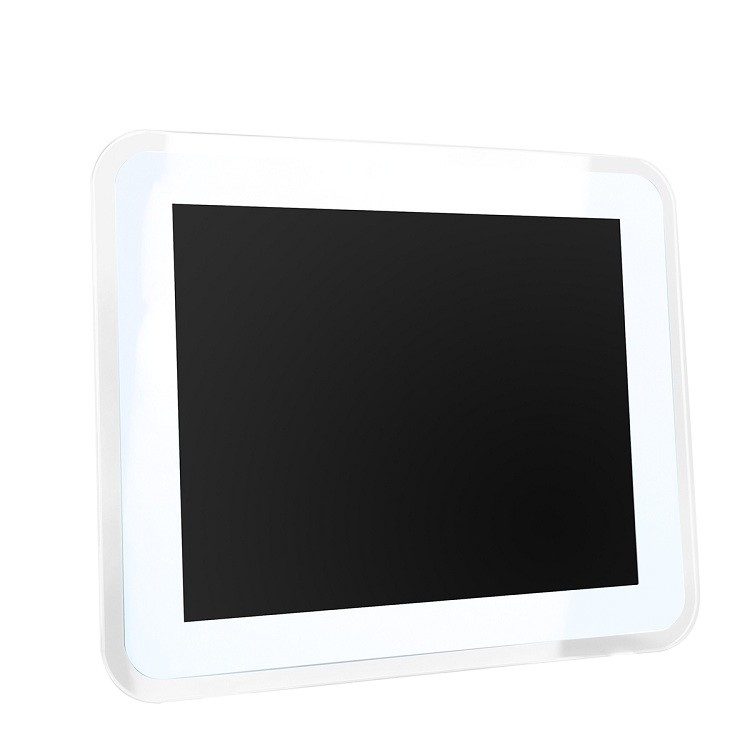

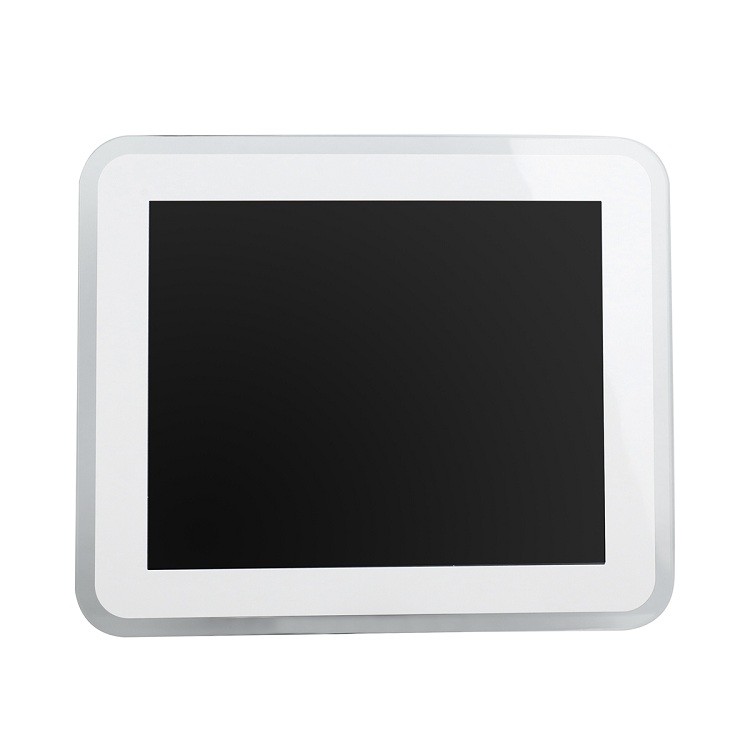

Ophthalmologist Eye Chart Medical Device Equipment Lcd Vision Chart 1

APPLICATION

C901 advanced parameter setting experience
The built-in software of C901 is developed on Linux platform. All the optotypes and charts are vector graph.
Change the parameters,
What you do: Press SET button on remote controller.
What MSLC901 does: Redraw the optotypes and charts on based on defifined parameters.
Three languages,Chinese,English and Russian,are available currently.
Working distance can be flexibly adjusted according to user’s needs.
Various visus units for different operator’ preference.
Red & Green value can be set real time according to the clinical condition.
Reversible optotypes and charts for mirrored room.
Size of image can be changed freely according to the working distance.
Screen Saver and Standby function are available.
Gamma Calibration function brings the professional contrast sensitivity measurement.
Software upgrade provided for free during the lifetime of MSLC901.

Main Unit	1
Lift Table	1
Illuminating Bulb	1
Target Plate	1
Fuse	2
Elbow Rest	1
Isolation transfer	1
User's Manual	1
Packing List	1
