Hospital 16MP HD Lens CT Film scanner price

Description of Hospital 16MP HD Lens CT Film scanner price

Product composition

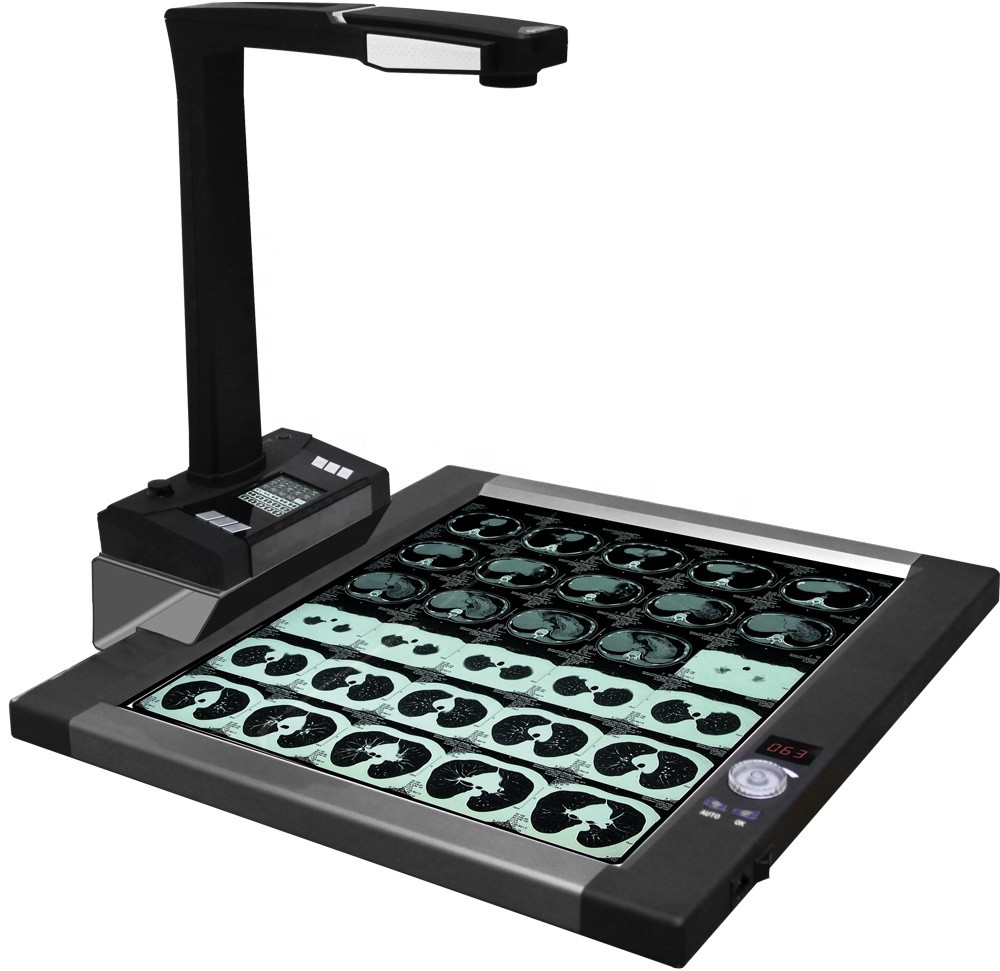

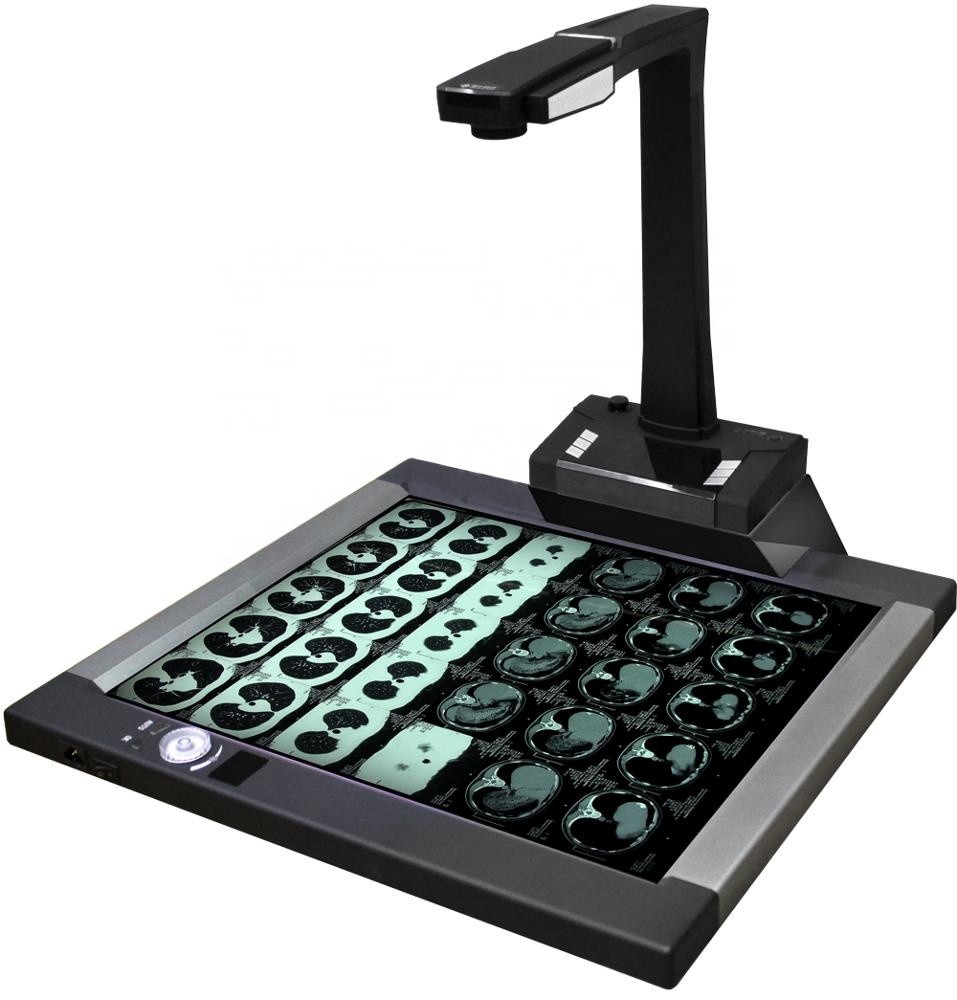

The hardware consists of 16MP HD acquisition instrument and LED medical viewing lamp box. It can collect HD images of X-ray film, CT film and MRI film efficiently, and transform traditional medical films into HD digital images and upload them to computer system

Acquisition Instrument
16MP HD lens, 1/2.3’’Large CMOS sensor, 600DPI, and Specialized image processor and self-developed image optimization algorithm can fully capture all the details of the dark and bright parts of the film and present clear and delicate images.
The standardized scanning process enables the software algorithm to accurately calculate and compensate the bright- ness and other parameters of the image, so as to minimize the loss of density data in the process of digitization of CT films, and to become a real medical image with reference value for disease diagnosis

Viewing lamp box
The size is 422 mm * 360 mm. There are 10 mm slots on both sides for fixing the film. Joyusing CT160 can photograph all medical films of normal specifications. The transparent board of the viewing lamp box is made of acrylic material, Its purity meets the highest standards in the industry, It has high trans- mittance and good light source shielding. It can make the light atomize and penetrate evenly, the acrylic board has good heat resistance, and can be used for a long time under the illumina- tion of the LED lamp. The Joyusing products will pass strictly QC process before leaving the factory. No defects on the viewing board are allowed to ensure that they will not affect the doctor's reading.

Specification of Hospital 16MP HD Lens CT Film scanner price

Maximum brightness: above 4000cd/m2

Averaged Color Temp: Above 8000K

Dimension of viewing screen: 422mm*360mm

Uniformity of viewing screen: above 90%

Power source: 220v-50Hz
Power Rate: 220v-0.3A
Available environment: 0℃~40℃,relative humidity≤75%,air pressure 106kPa~175kPa, Lux≤100
Maximum Film size:35.5cm×43cm Stability:≥2%
Scattering coefficient of viewing screen: >0.9
Light Source: Ultra-bright LED light source with high quality bracket and large size wafer. Real cold light source, uniform distribution of lamp beads, high brightness and high uniformity are guaranteed. The brightness of the viewing screen is over 4000cd/m2, and the tiny defects on the black film above 5.0D can be clearly observed, and the uniformity is over 0.8.

Viewing Screen: Made of acrylic board, which has better light transmittance than glass, good slow scattering performance, durability, no distortion, no color change. According to the physiological characteristics of human eyes, make the color temperature of LED is more than 8000K, and even if it is watched for a long time, the eyes are not easy to fatigue.

Brightness Adjustment: Using PWM low-voltage digital electronic continuous dimming technology, it can adjust brightness in ultra wide range 1%~10% , so that you can adjust it as you need.

Power Source Drive Mode: The power supply driving mode which cooperates with viewing lamp can ensure the normal operation of the LED to a greater extent, so as to achieve the purpose of prolonging life, energy saving and environmental protection.

Feature of Hospital 16MP HD Lens CT Film scanner price

Support outputting DCM file
This image format conforms to DICOM standard of medical digital imaging and communication, and can be used for direct reading at PACS system of hospitals.

Large Size Viewing Lamp Box
The viewing lamp box is large enough to place the largest 14''×17'' CT film, which can scan whole piece at once while ensuring the quality of the picture.

ABBYY OCR
The world's leading text recognition engine enables every word on a CT film to be converted into editable text on PC

Excellent image quality

16MP HD Lens, 1/2.3’’ Large Industrial level CMOS Sensor, 600
DPI Optical Resolution, Real Restore Gray Level Information of Original CT film
