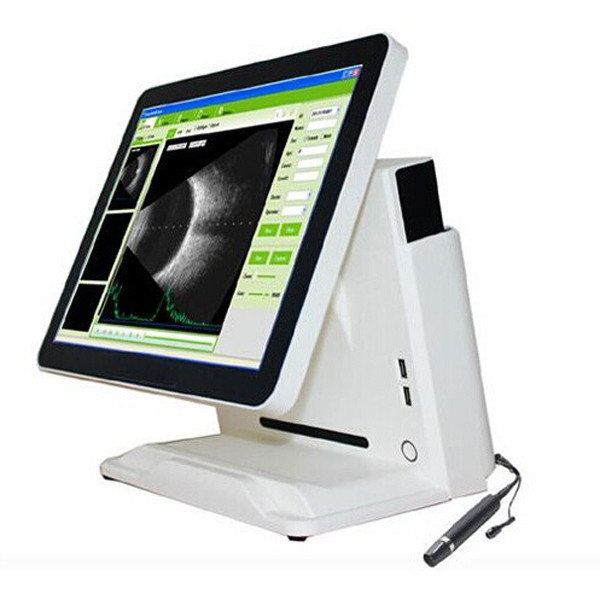

Hot selling factory price for the Ophthalmic A/B Scanner SU-500AB with ISO, CE

Minimum Order Quantity : 1PC Price : $2,800.00 - $3,500.00/Pieces
Packaging Details : standard exporting package Delivery Time : about 10 days
Payment Terms : T/T, Western Union,Payoneer Supply Ability : 1000 Pieces/Month
Place of Origin: Shanghai, China Brand Name: SUCE
Certification: CE,ISO13485 Model Number: SU-500AB

Detail Information

Type: Ophthalmic A/B Scan/Pachymeter B Scan Frequency:: 10MHz/20MHz (optional) ,Magnetic Driven, Noiseless
B Scan Scanning Mode:: Sector Scanning B Scan Resolution:: Lateral ≤0.3mm; Vertical≤0.2mm
B Scan Geometry Position Precision:: Lateral ≤10%; Vertical≤5% B Scan Depth:: 60mm
Frequency:: 10MHz, With LED A Scan Depth:: 40mm
A Scan Precision:: ±0.05 Mm Port: Shanghai

Product Description

Hot selling factory price for the Ophthalmic A/B Scanner SU-500AB with ISO, CE 0

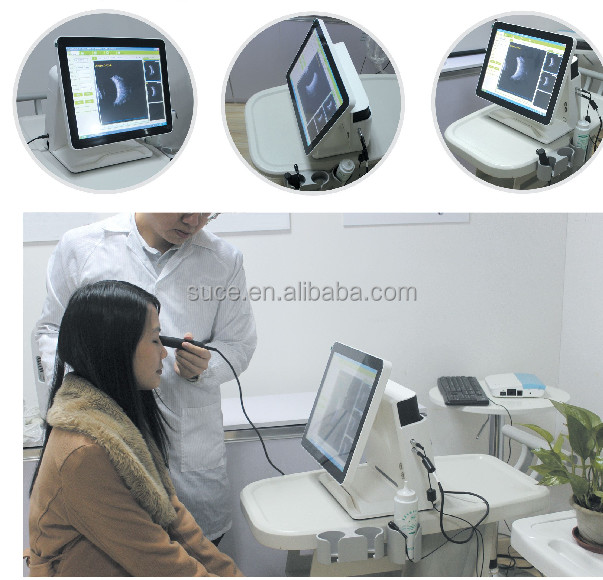

SU-500AB A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

B scan:
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify:Multi continuous magnification,Real-Time magnification
Resolution: Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision: Lateral ≤10%; Vertical≤5%
Depth:60mm
Enhance the part of vitreous body  and retina
Gain of probe:30dB-105dB
Scanning Angle:53°
Gray Scale: 256
False Color: Multi colors. OCT
measurement type: multigroup distances, perimeters and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Movies: 100 images movie review, AVI JPG format image output

A scan:
Frequency:10MHz,  with LED
Depth: 40mm
Precision:±0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others:
Display Mode :B, B+B, B+A, A
Hint: preset keyword
Case Search:Multi-keywords
Screen: 15 inch LCD
Built-in battery: can use 4 hours
