9999ml Volumetric Infusion Pump Curvilinear Peristaltic
Contact Person : JUCCY
Phone Number : 0086-17717698563
WhatsApp : +8617717698563
| Minimum Order Quantity : | 1PC | Price : | $269 - $369.00/Pieces |
|---|---|---|---|
| Packaging Details : | carton box | Delivery Time : | about 5 days |
| Payment Terms : | T/T, Western Union,Payoneer | Supply Ability : | 100000pcs/month |
| Place of Origin: | China | Brand Name: | hawkmed |
|---|---|---|---|
| Certification: | CE,ISO13485 | Model Number: | HK-100II |
|
Detail Information |
|||
| Flow Rate Range: | 0.1~1200 Ml/h | Micro Mode:: | 0.1-99.9 Ml/hr In 0.1 Ml Increments |
|---|---|---|---|
| Volume To Be Infuse: | 0~9999ml | Volume Infused: | 0 ~36000 Ml |
| Infusion Accuracy: | ±5% | Power Supply: | AC:100~240V,50/60Hz DC:12V ±1V |
| Dimensions: | 145*100*120 Mm | Weight: | 1.4kg |
| Port: | Shanghai | ||
| High Light: | OEM Volumetric Infusion Pump,36000 ml volumetric syringe pump,1.4kg Volumetric Infusion Pump |
||
Product Description

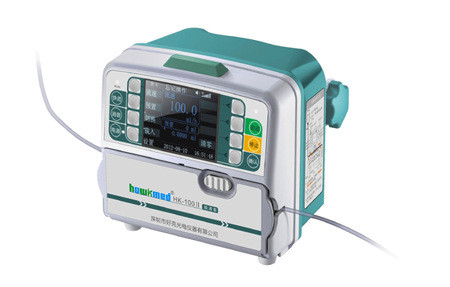

Hot selling Volumetric Infusion Pump HK-100II offer OEM service
FEATURES
● History records
● Various infusion modes to meet different clinical requirements
● KVO, Bolus and Anti-bolus
● Anti-reverse rotation detection
● Various visual and audible alarms
● drop sensors(optional)
● real time display
● Compact and light weight design
● Soft key design, easy for operate
● Free-flow protection
● Double Cpu ensuring safe infusion
● Removable pump body, convenient for cleaning
SPECIFICATIONS
| Infusion rate | 0.1-1200 ml/h |
| Accuracy | ±5% |
| Applicable infusion set | Various brands of standard infusion set |
| Volume to be infused(VTBI) | 0~9999 ml |
| Volume infused (Σ) | 0~36000 ml |
| KVO rate | 1~5 ml/h |
| Bolus rate | 300-1200 ml/h |
| Infusion Mode |
Rate mode Drip mode time mode body weight mode Drug library mode(optional) Intermittent Infusion mode(optional) |
| Purge | 600 ml/h |
| Air bubble detection | ultrasound sensors detection with four levels of air in lin alarm |
| Occlusion pressure | (40.0-160.0)Kpa 3 adjustable occlusion pressure: low-middle(default)-high |
| Alarm |
Use battery, Door open, Occlusion,Infusion comletion, Low battery,Almost done,forget operate Battery exhausted, malfunction etc. |
| Functions |
Anti-bolus(diminishes the unwanted volume of Ultrasound sensor detection with four levels of air in line alarm adjustable Inelligent pressure detection alarm Anti-reverse detection Screen simultaneously display the Infusion rate, drip rate, VTBI, volume infused, real time etc Bolus KVO Removable pump body for easy cleaning |
| Power supply | AC: 100-240v, 50/60Hz Dc:12v ± 1V |
| Battery | Rechargeable Lithium polymer battery, 7.4V 1900mAh |
| Battery charging time | 10 hours with power on, 3 hours with power off |
| Battery Operating time | about 6 hours at 25ml/h |
| Power consumption | 25VA |
| Safe classification | Class 1, CF |
| Waterproof level | IP x 3 |
| Dimension | 145*100*120mm(L*W*H) |
| Net weight | 1.4kg |
| Operating conditions | Temperature: 5ºC-40ºC, Relative humidity 10-95%, Atmosphere pressure:86-106Kpa |
| Transport Conditions | Temperature: -20ºC-60ºC, Relative humidity 10-95%, Atmosphere pressure:50-106Kpa |
| Storage conditions | Temperature: -20ºC-45ºC, Relative humidity 10-95%, Atmosphere pressure:50-106Kpa |
